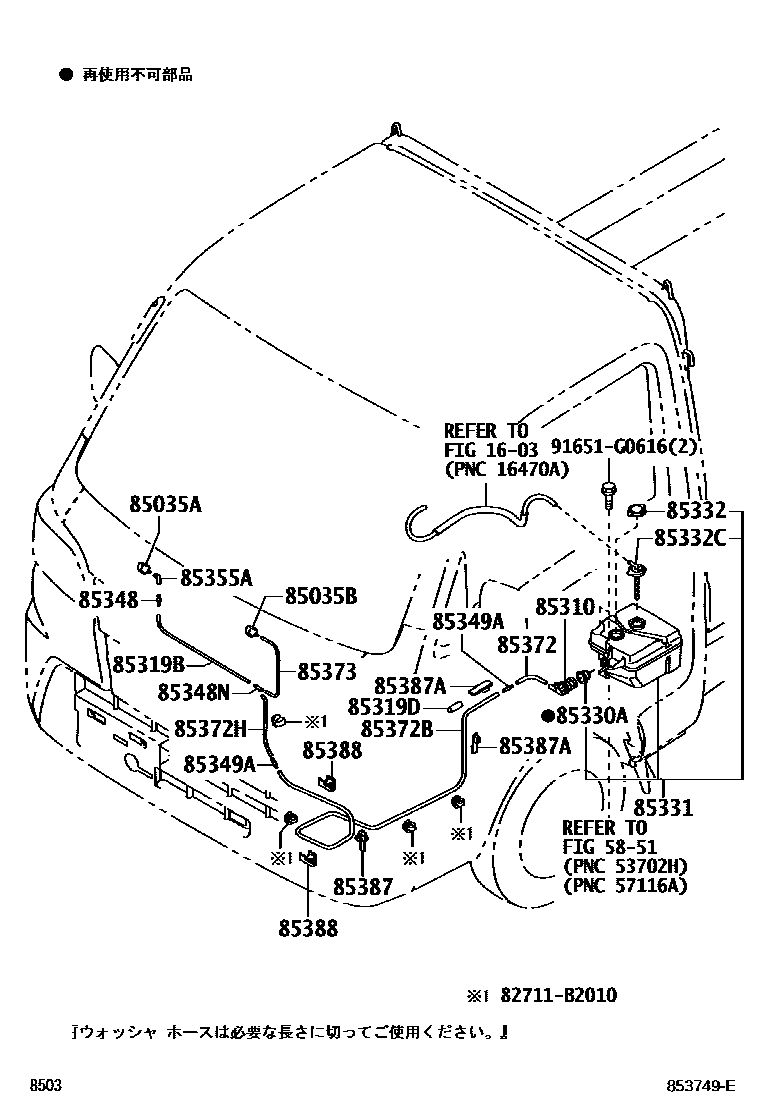

WINDSHIELD WASHER

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER

→ Go to FIG 58-51

85035ANOZZLE, FR WASHER, RH

main85381-B5040iS500,510201409-201606

main85381-B5041iS500,510201607-201610

85035BNOZZLE, FRONT WASHER, LH

main85381-B5050iS500,510201409-201607

main85381-B5060iS500,510201607-201610

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-97202iS500,510201409-201610

85319BHOSE, WINDOW WASHER

main85376-87202iS500,510201409-201610

85319DPACKING, FRONT WASHER

main85336-B2030iS500,510201409-201610

85330ABUSH, WINDSHIELD WASHER JAR

main85373-97202iS500,510201409-201610

85331JAR SUB-ASSY, WINDSHIELD WASHER

main85315-B5020iS500,510201409-201610

85332CAP, WINDSHIELD WASHER JAR

main85332-87204iS500,510201409-201610

85332CCAP, FRONT WASHER TANK

main85332-B5010iS500,510201901

main85332-B5030iS500,510201409-201610

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-87201iS500,510201409-201610

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85348-87501iS500,510201409-201610

85349AJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-87201×2iS500,510201409-201610

85355AJOINT, WINDSHIELD WASHER ELBOW

main85355-87701iS500,510201409-201610

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85375-87502iS500,510201409-201610

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main85376-87201iS500,510201409-201610

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main85375-87502iS500,510201409-201610

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85375-87502iS500,510201409-201610

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-60640iS500,510201409-201610

85387ACLAMP, WASHER, NO.2

main82711-3A540×2iS500,510201409-201610

85388CLAMP NO.2 (FOR WINDSEIELD WASHER)

main82711-B2330×2iS500,510201409-201610

82711B2010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-B2010

91651G0616

main91651-G0616

24 parts on this diagram · 1 diagram in section
