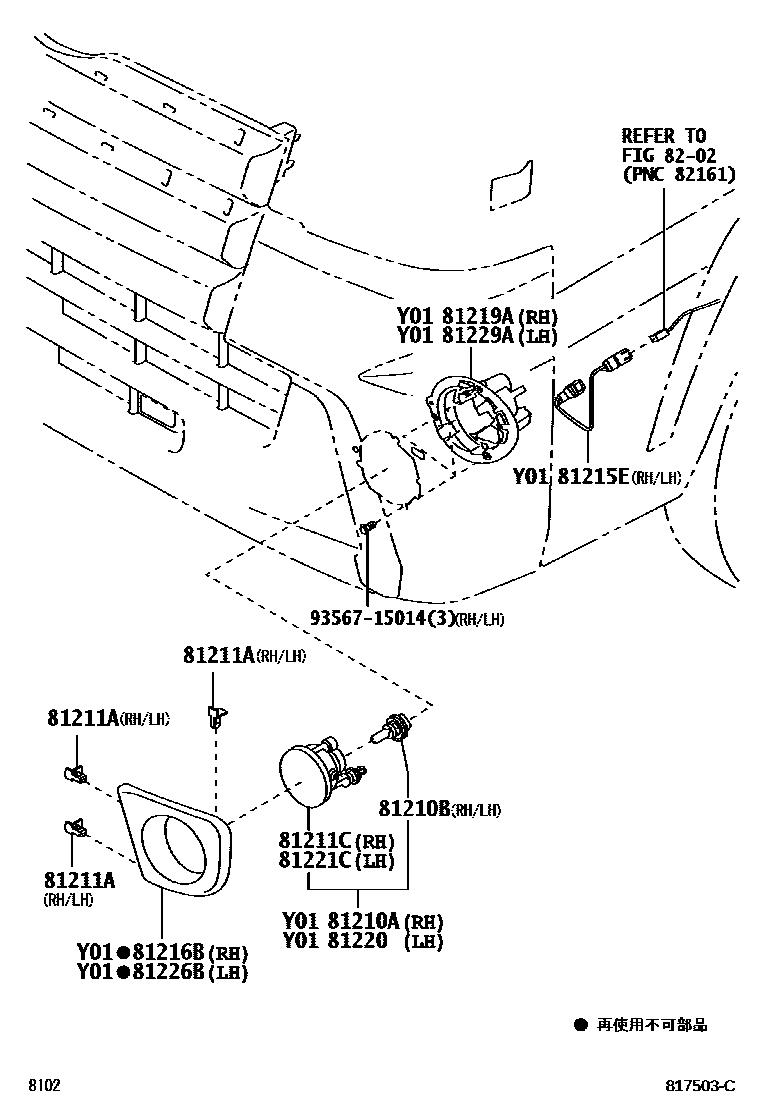

Toyota PIXIS TRUCK — FOG LAMP

81210ALAMP ASSY, FOG, RH

81210BBULB, FOG LAMP

81211ARETAINER, FOG LAMP

81211CLAMP UNIT, FOG LAMP, RH

81215ECORD, FOG LAMP

81216BRIM, FOG LAMP, RH NO.1

81219ABRACKET, FOG LAMP, RH

81220LAMP ASSY, FOG, LH

00000-00000

81220-B5030

81210-B2420

81221CLAMP UNIT, FOG LAMP, LH

81226BRIM, FOG LAMP, LH

81229ABRACKET, FOG LAMP, LH

8202WIRING & CLAMP

→ Go to FIG 82-02

9356715014

93567-15014

13 parts on this diagram · 2 diagrams in section

FOG LAMP for Toyota PIXIS TRUCK

This section contains 13 genuine Toyota parts for the FOG LAMP system of the Toyota PIXIS TRUCK. Key components include: LAMP ASSY, FOG, RH, BULB, FOG LAMP, RETAINER, FOG LAMP, LAMP UNIT, FOG LAMP, RH, CORD, FOG LAMP.
