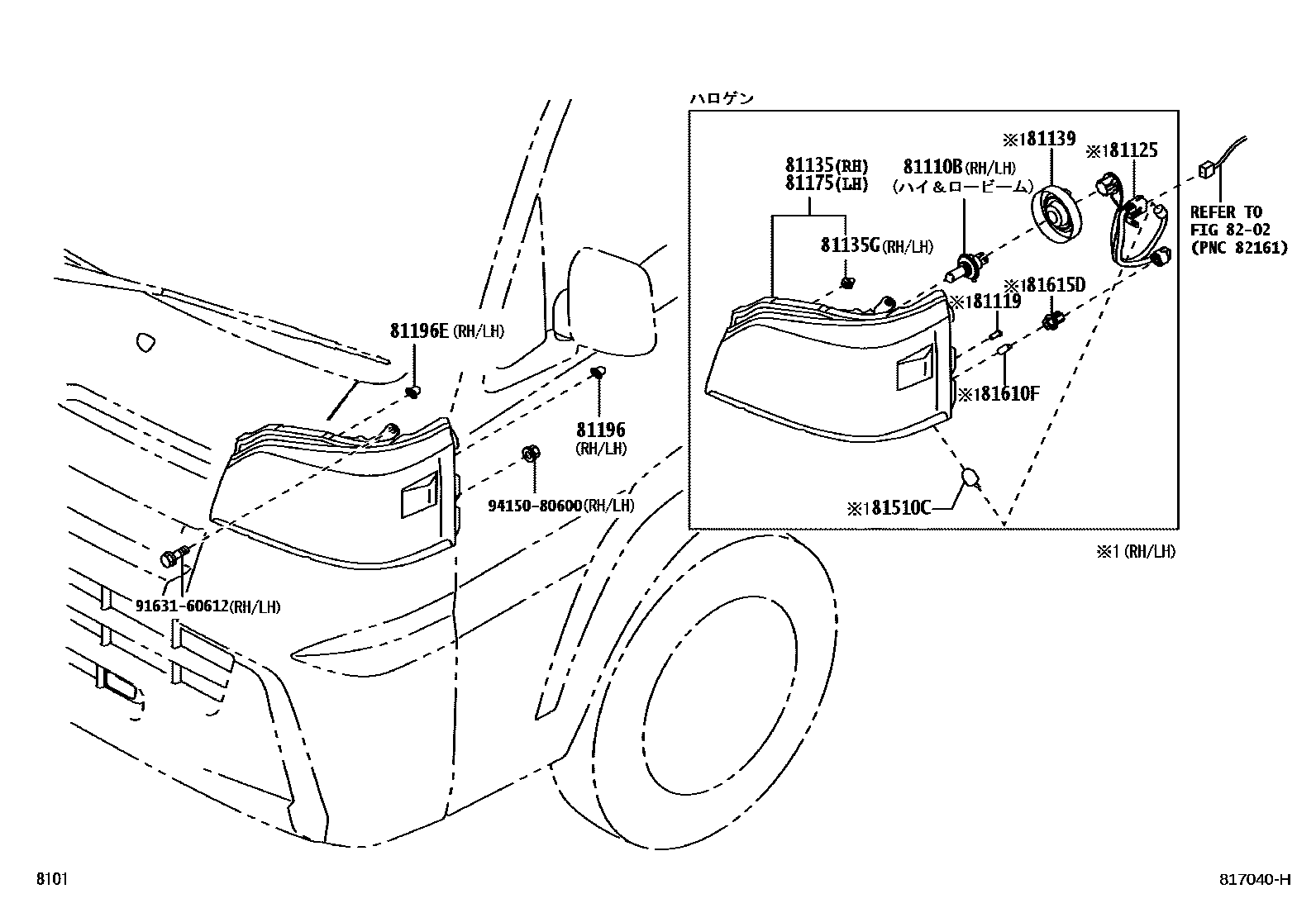

HEADLAMP

0001 1 0002 1

81110BBULB(FOR HEADLAMP, NO.1)

main90049-51088×2iS500,510201610-201910

main00000-00000iS500,510201711-201806

mainGAITONASHIiS510..PS1;S500..SPL..PS1;S510..EXT..PS2;S500..EXT..(PS1,PS2)201711-201911

81119SCREW, HEADLAMP

main9004C-14012×2iS500,510201409-201610

main00000-00000iS500,510201711-201806

81125CORD, HEADLAMP

main81125-B5070×2iS500,510201610-201711

main00000-00000iS500,510201711-201806

81135UNIT ASSY, HEADLAMP, RH

main81130-B5120iS500,510201409-201508

main81130-B5130iS500,510201509-201610

main81130-B5140iS500,510201711-201910

main81130-B5150iS500,510201910

81135GCLIP

main90467-10167×2iS500,510201409-201610

81139COVER, HEADLAMP SOCKET

main81139-B2030×2iS500,510201409-201610

main00000-00000iS500,510..EXT; S500,510..SPL201806-201910

mainGAITONASHIiS500,510..SPL..PS2201806-201911

81175UNIT ASSY, HEADLAMP, LH

main81170-B5120iS500,510201409-201508

main81170-B5130iS500,510201610-201711

main81170-B5140iS500,510201711-201910

main81170-B5150iS500,510201910

81196RETAINER, HEADLAMP

main81196-B5010×2iS500,510201409-201610

81196ERETAINER, HEADLAMP

main81196-B5020×2iS500,510201409-201610

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90049-51143×2iS500,510201610-201711

main90049-51148×2iS500,510201711-201910

81610FBULB(FOR CLEARANCE LAMP)

main90049-51183×2iS500,510201610-201910

main00000-00000iS500,510..EXT; S500,510..SPL201806-201910

mainGAITONASHIiS510..PS1;S500..SPL..PS1;S510..EXT..PS2;S500..EXT..(PS1,PS2)201711-201911

81615DSOCKET, CLEARANCE LAMP

main81125-97502×2iS500,510201610-201910

main00000-00000iS500,510..EXT; S500,510..SPL201806-201910

mainGAITONASHIiS500,510..SPL..PS2201806-201911

8202WIRING & CLAMP

→ Go to FIG 82-02

9163160612

main91631-60612

9415080600

main94150-80600

15 parts on this diagram · 2 diagrams in section
