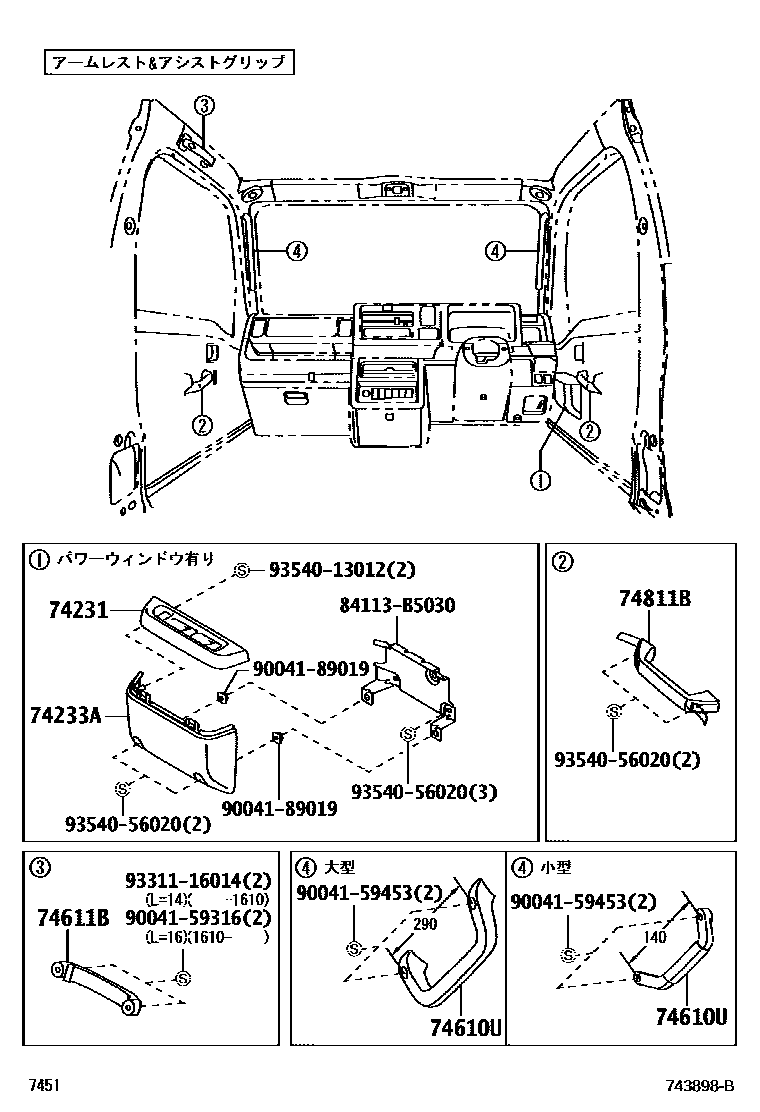

ARMREST & VISOR

0001 1������ 0002 1�����

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-B5060-B0iS500,510..EXT; S500,510..SPL201409-201610

main74231-B5060-C0iS500,510..EXT; S500,510..SPL201711

74233APANEL, FRONT DOOR ARMREST BASE, LOWER RH

main74233-B5010-B0iS500,510..EXT; S500,510..SPL201409-201610

main74233-B5010-C0iS500,510..EXT; S500,510..SPL201711

74610UGRIP ASSY, ASSIST

main74610-87502-B2×2iS500,510..SPL201806

main74610-97502-B1×2supersedes 74610-87502-B2iS500,510..EXT201610-201806

74611BGRIP, ASSIST

main74617-87501-B2iS500,510201409-201610

LT.GRAY,TRIM1#

74811BHANDLE, DOOR PULL

main74811-87203-B3×2iS500,510201409-201610

DK.GRAY,TRIM1#

main74811-87203-C0×2iS500,510201711

BLACK,TRIM2#

84113B5030BRACKET, LIGHT CONTROL RHEOSTAT

main84113-B5030

9004159316

main90041-59316

9004159453

main90041-59453

9004189019

main90041-89019

9331116014

main93311-16014

9354013012

main93540-13012

9354056020

main93540-56020

12 parts on this diagram · 2 diagrams in section
