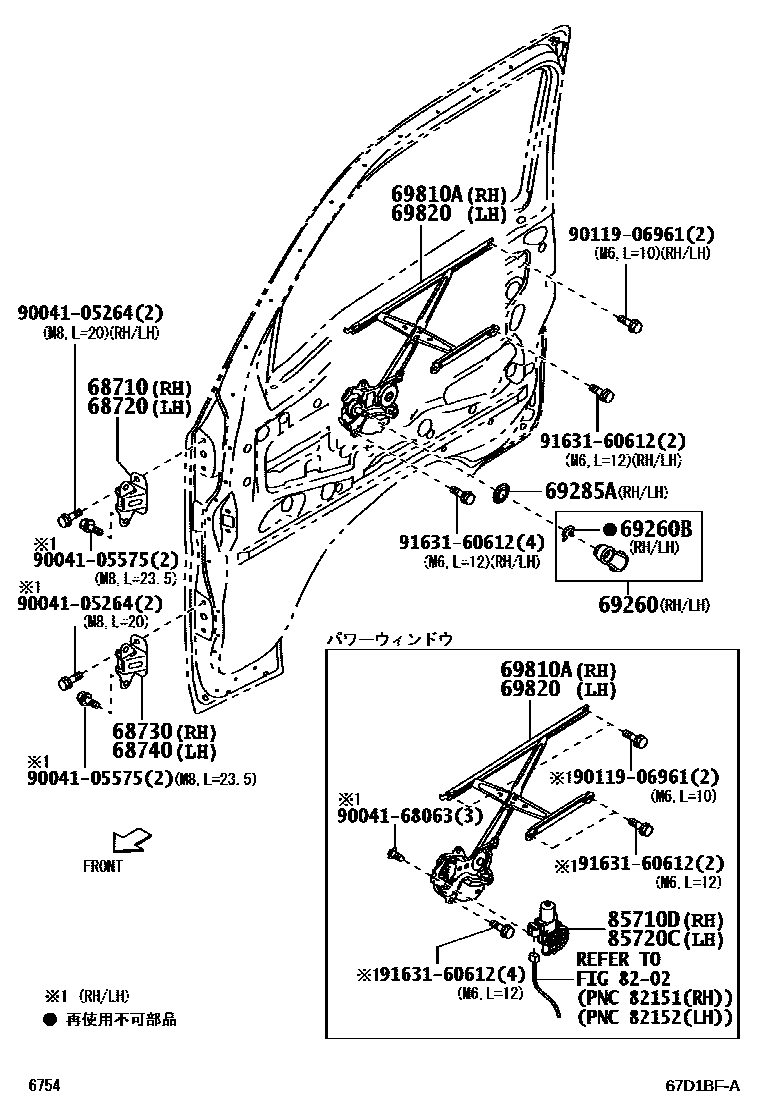

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-B5010iS500,510201610

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-B5030iS500,510201610

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-B5030iS500,510201409-201610

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-B5010iS500,510201409-201610

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-87103-B2×2iS500,510..SPL201610-201711

main69260-87103-C0×2iS500,510..SPL201711

BLACK,TRIM2#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iS500,510..SPL201409-201610

69285APLATE, DOOR VENT WINDOW CONTROL HANDLE

main69285-87201×2iS500,510..SPL201409-201610

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69801-B2200supersedes 69810-B5090iS500,510..EXT; S500,510..SPL201409-201610

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69802-B2190supersedes 69820-B5090iS500,510..EXT; S500,510..SPL201409-201610

8202WIRING & CLAMP

→ Go to FIG 82-02

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-B5020iS500,510..EXT; S500,510..SPL201409-201610

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-B2110iS500,510..EXT; S500,510..SPL201409-201610

9004105264

main90041-05264

9004105575

main90041-05575

9004168063

main90041-68063

9011906961

main90119-06961

9163160612

main91631-60612

17 parts on this diagram · 1 diagram in section
