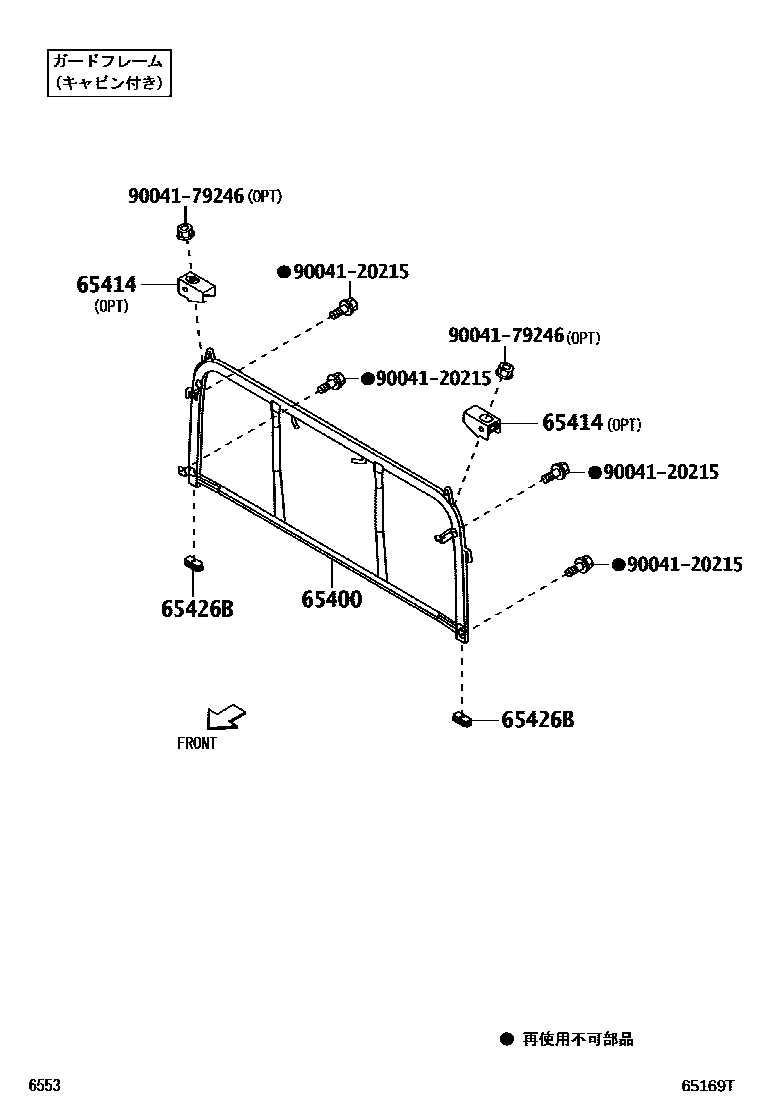

REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1

65400FRAME ASSY, REAR BODY GUARD

main65410-B5310iS500,510..SPL201711

main65410-B5320iS500,510..EXT; S510..SPL..5MT201711

main65410-B5180iS500,510..EXT; S510..SPL..5MT201610-201711

main65410-B5220supersedes 65410-B5170iS500,510..EXT; S500,510..SPL; S510..SPL..5MT201409-201610

65414STOPPER, GUARD FRAME

main65480-B5011×2iS500,510..EXT; S500,510..SPL; S510..SPL..5MT201610-201711

65426BLID, GUARD FRAME HORIZONTAL BAR END

main65426-B5011×2iS500,510201409-201610

main65426-B5012×2iS500,510201806-202112

9004120215

main90041-20215

9004179246

main90041-79246

5 parts on this diagram · 2 diagrams in section
