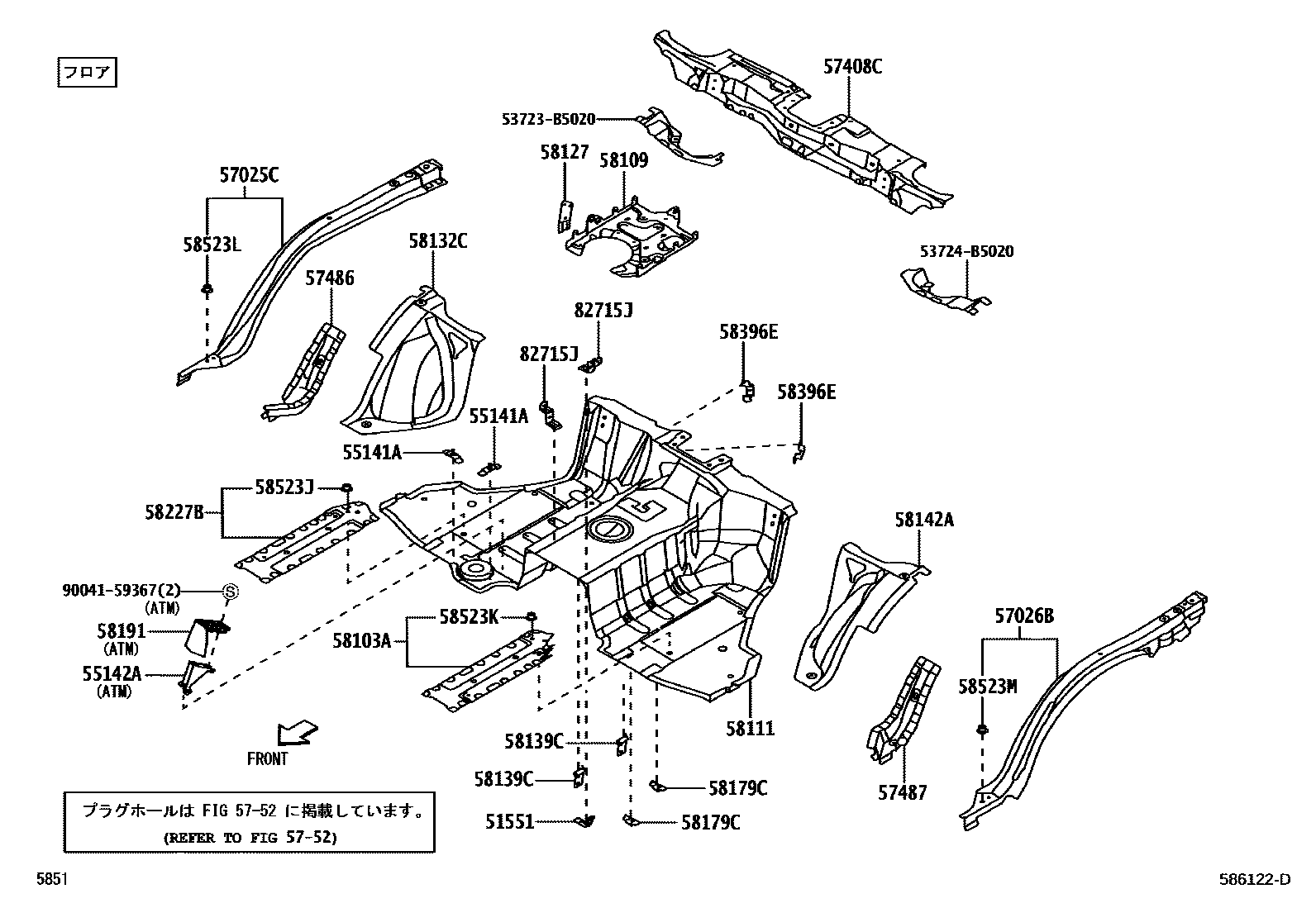

FRONT FLOOR PANEL & FRONT FLOOR MEMBER
51551BRACKET, TUBE CLAMP, NO.1
55141ABRACKET, FOOT REST MOUNTING
55142ABRACKET, FOOT REST MOUNTING, NO.2
57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH
57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH
57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS
57486REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH
57487REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH
5752HOLE PLUG
58103AREINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, LH
58109BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING
58111PAN, FRONT FLOOR
58127PATCH, FRONT FLOOR PANEL
58132CAPRON, FRONT FLOOR SIDE, NO.1 RH
58139CBRACKET, HARNESS CLAMP
58142AAPRON, FRONT FLOOR SIDE, NO.1 LH
58179CBRACKET, CLAMP FLOOR
58191FOOTREST, FRONT FLOOR
58227BPLATE, FRONT FLOOR PANEL SIDE, RH
58396EBRACKET, WIRE HARNESS CLAMP
58523JHOOK, MALE, NO.1
58523KHOOK, MALE, NO.2
58523LHOOK, MALE, NO.3
58523MHOOK, MALE, NO.4
82715JBRACKET, WIRING HARNESS CLAMP
53723B5020BRACKET, BRAKE BOOSTER
main53723-B5020
53724B5020BRACKET, CLAMP
main53724-B5020
9004159367
main90041-59367
28 parts on this diagram · 2 diagrams in section
