Toyota PIXIS TRUCK — FRONT FENDER APRON & DASH PANEL

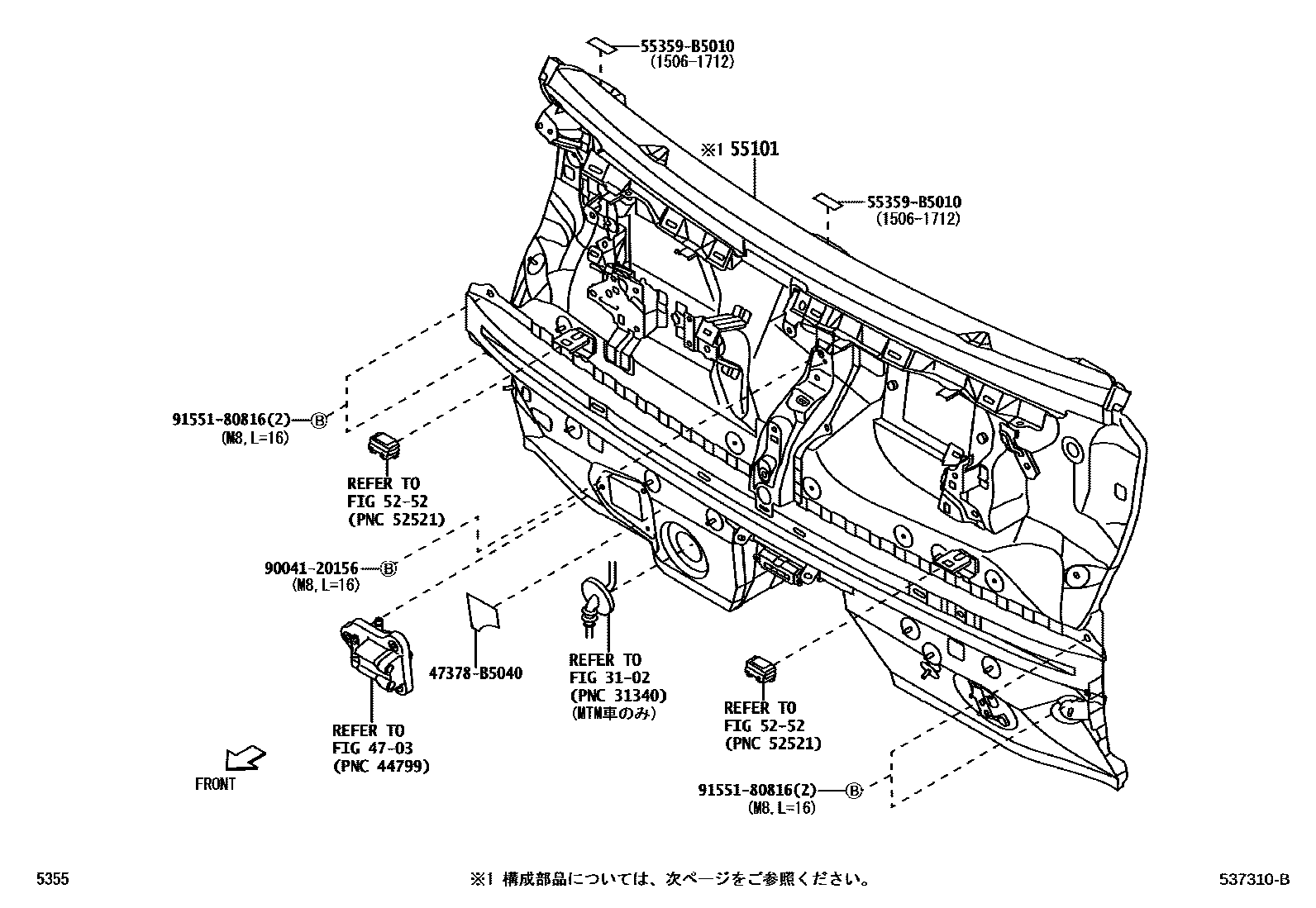

Parts diagram

3102CLUTCH PEDAL & FLEXIBLE HOSE

→ Go to FIG 31-02

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

55101PANEL SUB-ASSY, DASH

47378B5040PROTECTOR, BRAKE TUBE

55359B5010REINFORCEMENT, INSTRUMENT LOWER GARNISH

9004120156

9155180816

8 parts on this diagram · 2 diagrams in section

FRONT FENDER APRON & DASH PANEL for Toyota PIXIS TRUCK

This section contains 24 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota PIXIS TRUCK. Key components include: CLUTCH PEDAL & FLEXIBLE HOSE, BRAKE BOOSTER & VACUUM TUBE, BRACKET, FRONT BUMPER SIDE MOUNTING, RH, BRACKET, FRONT BUMPER SIDE MOUNTING, LH, FRONT BUMPER & BUMPER STAY.
