Toyota PIXIS TRUCK — FRONT AXLE ARM & STEERING KNUCKLE

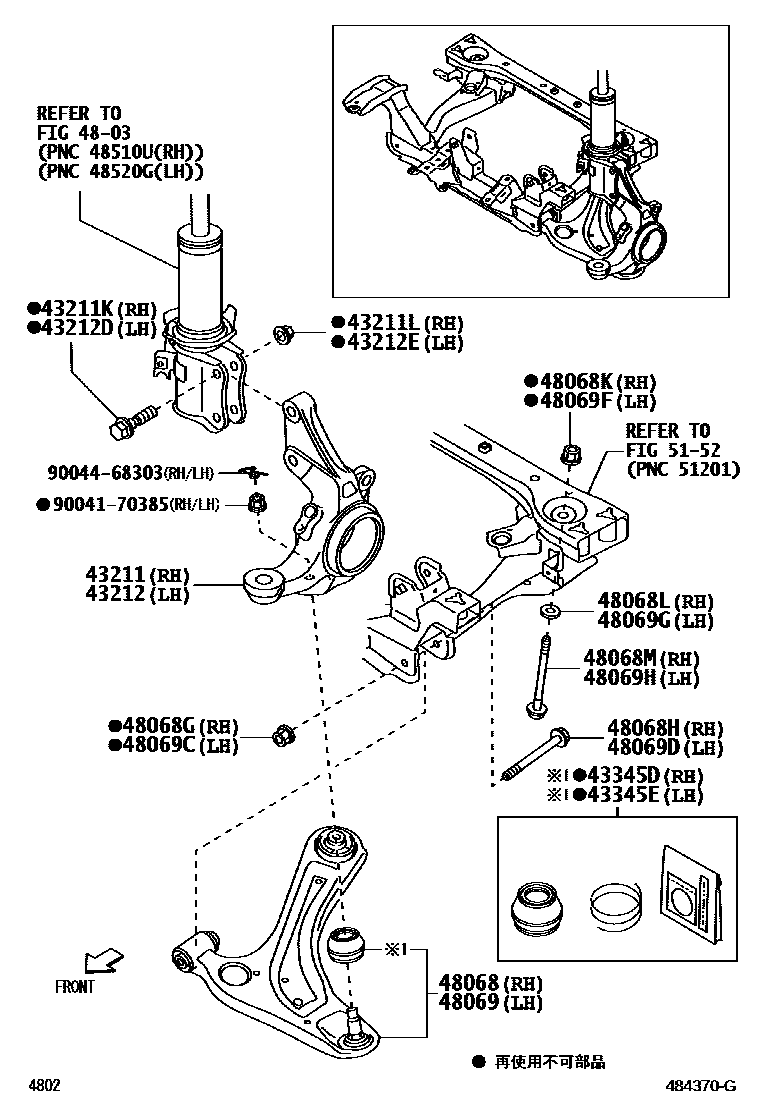

Parts diagram
43211KNUCKLE, STEERING, RH
43211-B5050
43211-B5060
43211-B5070
43211-B5080
90041-70393
90041-01652
43211KBOLT (FOR STEERING KNUCKLE RH)
43211LNUT (FOR STEERING KNUCKLE RH)
43212KNUCKLE, STEERING, LH
43212-B5050
43212-B5060
43212-B5070
43212-B5080
90041-70393
90041-01652
43212DBOLT (FOR STEERING KNUCKLE LH)
43212ENUT (FOR STEERING KNUCKLE LH)
43345DCOVER, LOWER BALL JOINT DUST, RH
43345ECOVER, LOWER BALL JOINT DUST, LH
4803FRONT SPRING & SHOCK ABSORBER
→ Go to FIG 48-03
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-B5070
90041-20293
90041-70342
94622-51400
90041-05524
48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48068KNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
48068LWASHER(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-B5070
90041-20293
90041-70342
94622-51400
90041-05524
48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48069FNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
48069GWASHER(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
5152SUSPENSION CROSSMEMBER & UNDER COVER
→ Go to FIG 51-52
9004170385
90041-70385
9004468303
90044-68303

24 parts on this diagram · 1 diagram in section

FRONT AXLE ARM & STEERING KNUCKLE for Toyota PIXIS TRUCK

This section contains 24 genuine Toyota parts for the FRONT AXLE ARM & STEERING KNUCKLE system of the Toyota PIXIS TRUCK. Key components include: KNUCKLE, STEERING, RH, BOLT (FOR STEERING KNUCKLE RH), NUT (FOR STEERING KNUCKLE RH), KNUCKLE, STEERING, LH, BOLT (FOR STEERING KNUCKLE LH).
