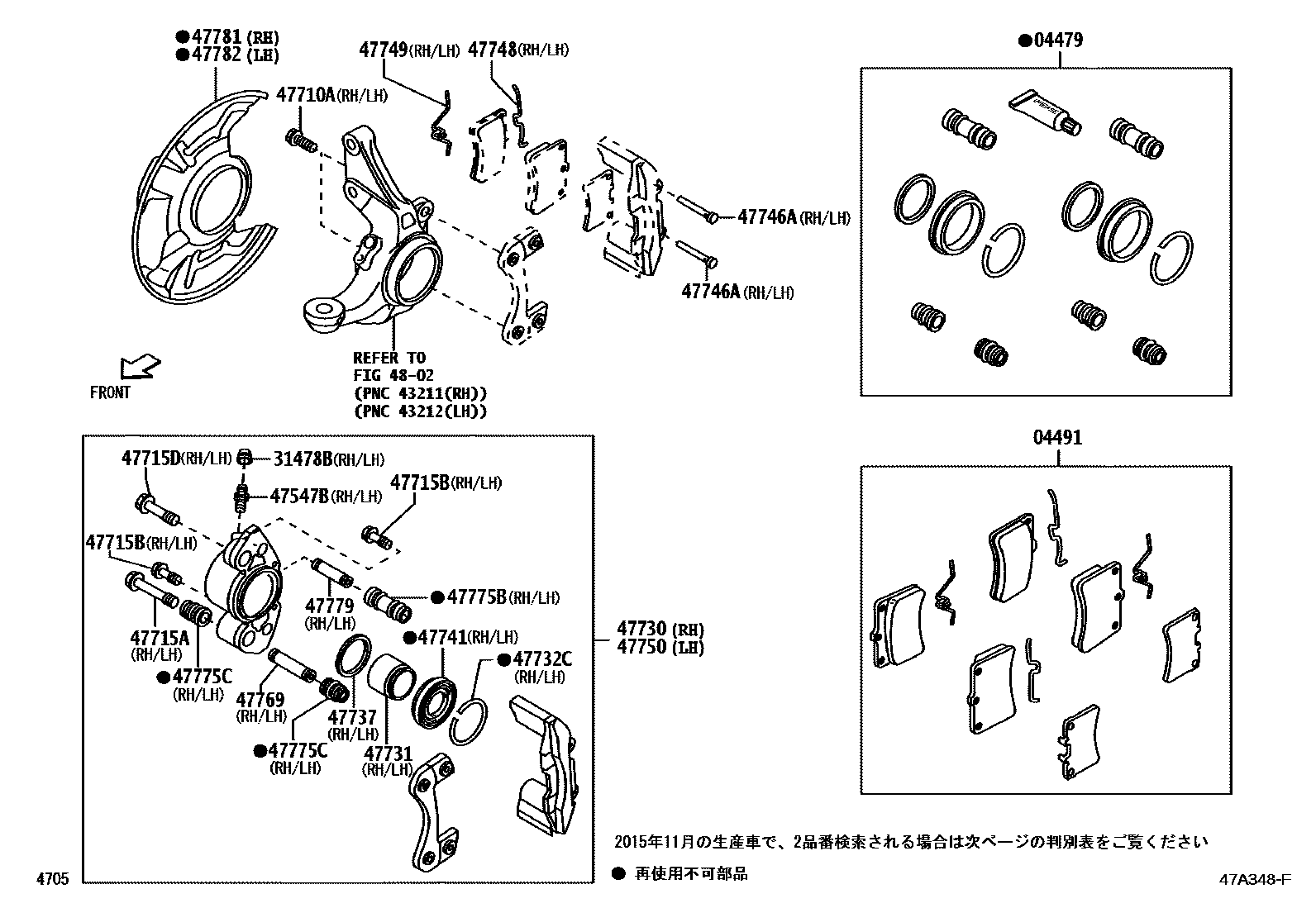

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1����������(���� ���) 0003 1����������(3����� ���) 0004 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-B5020iS500,510201409-201511

main04478-B5061iS500,510201511-201610

04491PAD KIT, DISC BRAKE, FRONT

main04465-B5021iS500,510201409-201511

main04465-B5090iS500,510201511-201603

main04465-B5091iS500,510201604-201610

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main47548-87501×2iS500,510201409-201610

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-87204×2iS500,510201610-202112

main47547-87206×2iS500,510201409-201511

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90041-05242×4iS500,510201409-201610

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-97501×2iS500,510201409-201511

main47715-B5010×2iS500,510201511-201610

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main47715-B5020×4iS500,510201511-201610

main90041-01362×4iS500,510201409-201511

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47714-B5010×2iS500,510201511-201610

main47715-97204×2iS500,510201409-201511

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-B5011iS500,510201409-201511

main47730-B5050iS500,510201610

47731PISTON, FRONT DISC BRAKE

main47731-B5010×2iS500,510201409-201511

main47731-B5020×2iS500,510201511-201610

47732CRING, SET, NO.2(FOR FRONT DISC BRAKE)

main90045-22015×2iS500,510201409-201511

47737SEAL, FRONT DISC BRAKE CYLINDER PISTON

main47737-97202×2iS500,510201409-201610

47741BOOT, FRONT DISC BRAKE CYLINDER

main47741-87501×2iS500,510201409-201511

main47741-87503×2iS500,510201511-201610

47746APIN, W/HOLE(FOR DISC BRAKE PAD, FRONT)

main90042-40149×4iS500,510201409-201511

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-87501×2iS500,510201409-201511

47749CLIP, PIN HOLD

main47749-87501×2iS500,510201409-201511

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-B5011iS500,510201409-201511

main47750-B5050iS500,510201511-201610

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-B5010×2iS500,510201409-201511

main47769-B5020×2iS500,510201511-201610

47775BBOOT, BUSH DUST, NO.1

main47775-87202×2iS500,510201409-201511

47775CBOOT, BUSH DUST, NO.2

main47775-87203×4iS500,510201409-201511

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-87202×2iS500,510201409-201511

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-B5030iS500,510201409-201511

main47781-B5040iS500,510201511-201610

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-B5030iS500,510201409-201511

main47782-B5040iS500,510201511-201610

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

24 parts on this diagram · 4 diagrams in section
