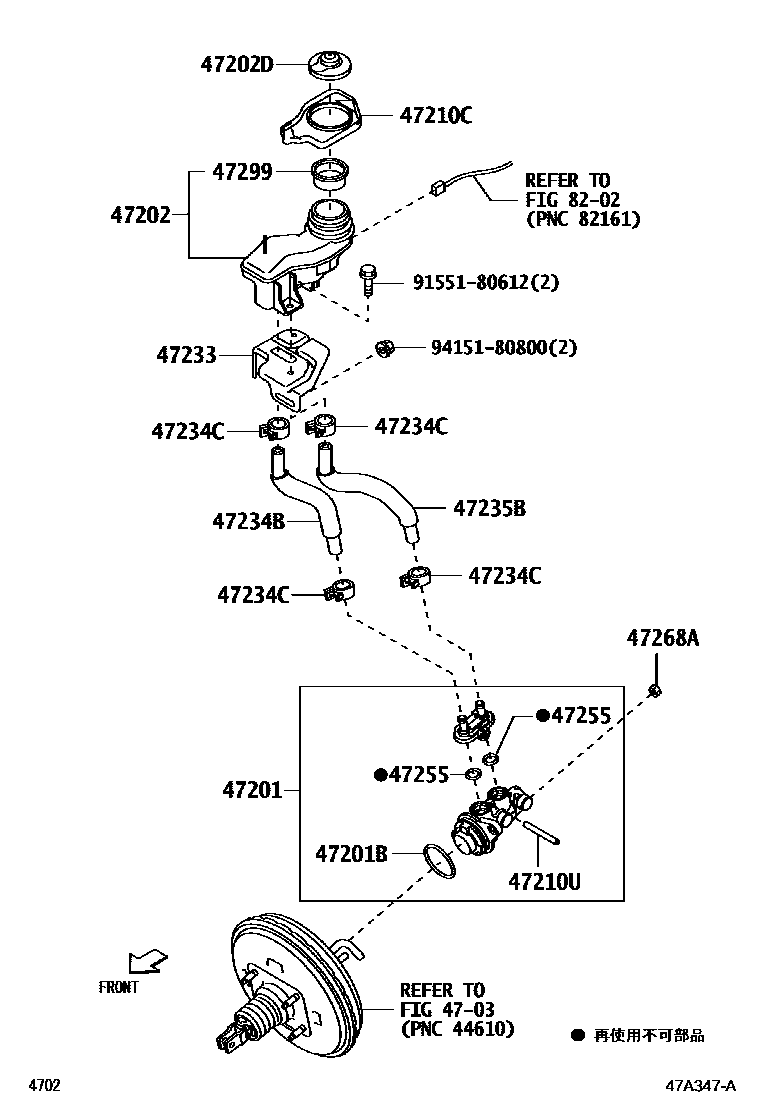

BRAKE MASTER CYLINDER

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-B5090iS500,510201409-201610

main47201-B5091iS500,510201709-201806

main47201-B5130iS500,510201806

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90043-01352iS500,510201610

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47203-B5020iS500,510201409-201610

47202DCAP, RESERVOIR(FOR MASTER CYLINDER RESERVOIR SET)

main47230-BZ100iS500,510201409-201610

47210CPLATE(FOR BRAKE MASTER CYLINDER PISTON STOP)

main11494-B5020iS500,510201409-201610

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90042-43029iS500,510201610

47233BRACKET, RESERVOIR

main47233-B5010iS500,510201409-201610

47234BTUBE, RESERVOIR, NO.1

main47234-B5050iS500,510201409-201610

47234CCLIP(FOR RESERVOIR TUBE NO.1)

main90044-67246×4iS500,510201409-201610

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-B5030iS500,510201409-201610

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-B2050×2iS500,510201409-201610

47268ANUT, BRAKE MASTER CYLINDER

main90041-79124×2iS500,510201409-201610

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-B2030iS500,510201409-201610

8202WIRING & CLAMP

→ Go to FIG 82-02

9155180612

main91551-80612

9415180800

main94151-80800

17 parts on this diagram · 1 diagram in section
