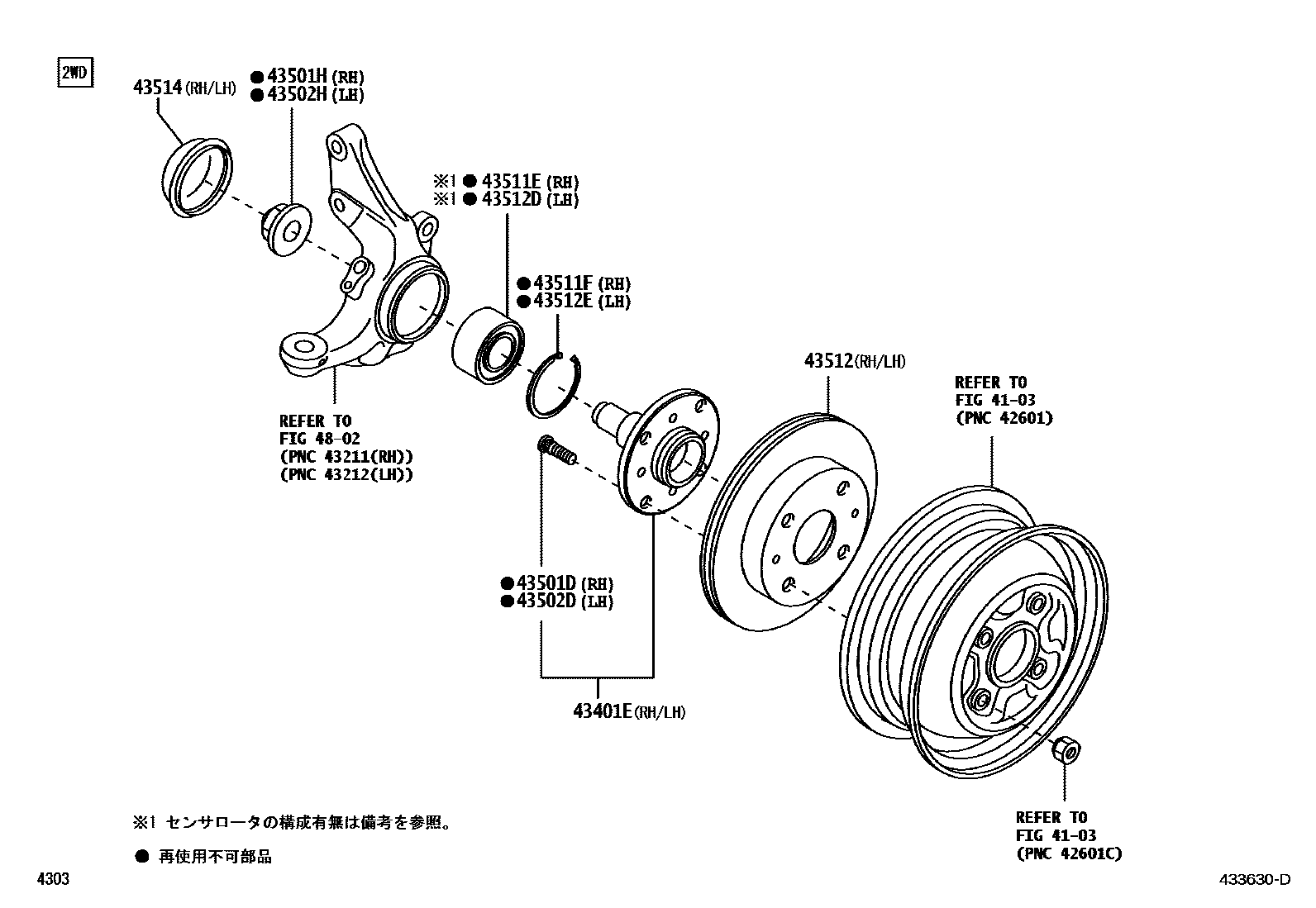

FRONT AXLE HUB

0001 1 0002 1

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

43401ESPINDLE SUB-ASSY, STEERING

main43401-97501×2iS500201409-201610

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90049-12056×4iS500,510201610

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90041-78071iS500201409-201610

main90041-79274iS510201409-201610

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90049-12056×4iS500,510201610

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90041-78071iS500201610

main90041-79274iS510201409-201610

43511EBEARING (FOR FRONT AXLE HUB RH)

main43560-B6010supersedes 90043-63409iS500,510201711-201908

main43560-B6011iS500,510201909

main43560-B1011iS500,510201610-201701

main43560-B5010supersedes 90043-63303iS500,510201409-201511

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90045-21111iS500,510201511-201610

main90045-21163iS500,510201409-201511

43512DISC, FRONT

main43512-97503×2iS500,510201409-201509

main43512-B5050×2iS500,510201510-201610

43512DBEARING (FOR FRONT AXLE HUB LH)

main43560-B6010supersedes 90043-63409iS500,510201711-201908

main43560-B6011iS500,510201909

main43560-B1011iS500,510201610-201701

main43560-B5010supersedes 90043-63303iS500,510201409-201511

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90045-21111iS500,510201511-201610

main90045-21163iS500,510201409-201511

43514CAP, FRONT HUB GREASE

main43514-97501×2iS500201610-202112

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

13 parts on this diagram · 2 diagrams in section
