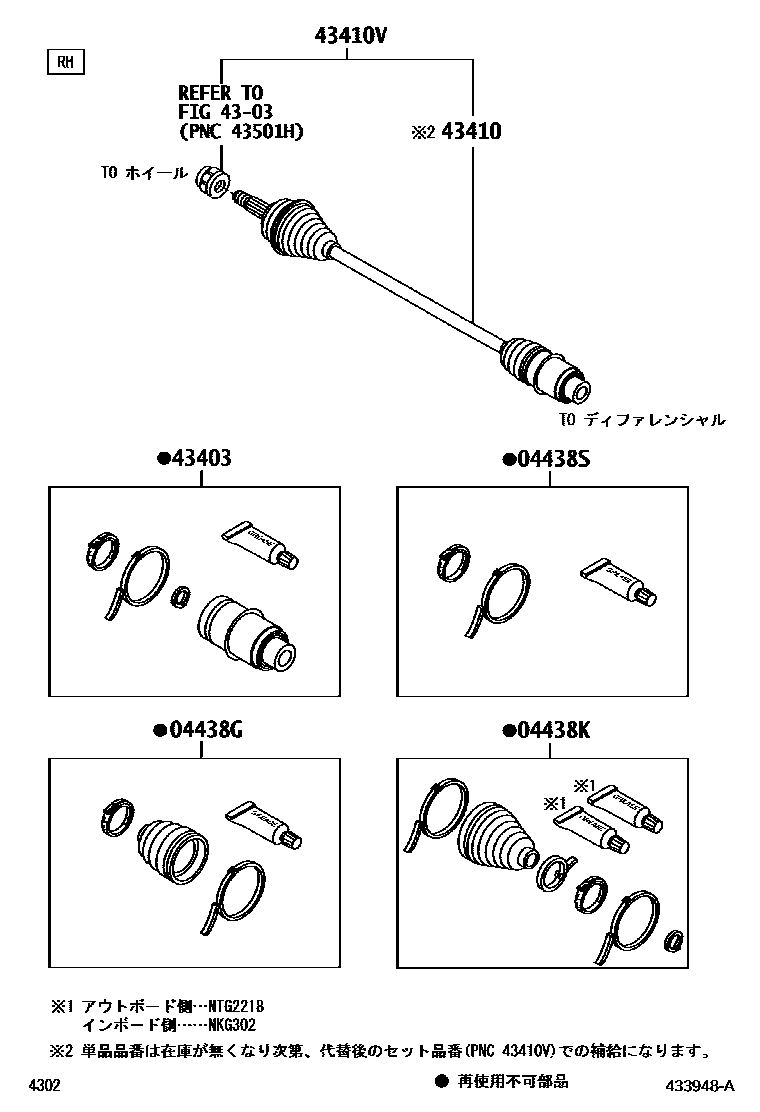

FRONT DRIVE SHAFT

0001 1 0002 1 0003 1 0004 1

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-B2010iS510201511-201610

main04437-B5010iS510201409-201510

04438KBOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, RH

main04425-B5040iS510201511-201610

main04425-B5050iS510201510-201511

04438SCLAMP KIT, FRONT DRIVE SHAFT, RH

main04435-B2010iS510201511-201610

main04435-B5010iS510201409-201510

4303FRONT AXLE HUB

→ Go to FIG 43-03

43403JOINT SET, FRONT AXLE INBOARD, RH

main43408-B9310iS510201409-201510

main43408-B9490iS510201511-201610

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-B5070iS510201610-201711

main43410-B5041supersedes 43410-B5070iS510201409-201510

main43410-B5080supersedes 43410-B5070iS510201610-201710

43410VSHAFT SET, FRONT DRIVE, RH

main43410-B9780iS510201711

main43410-B9760supersedes 43410-B9750iS510201409-201610

7 parts on this diagram · 4 diagrams in section
