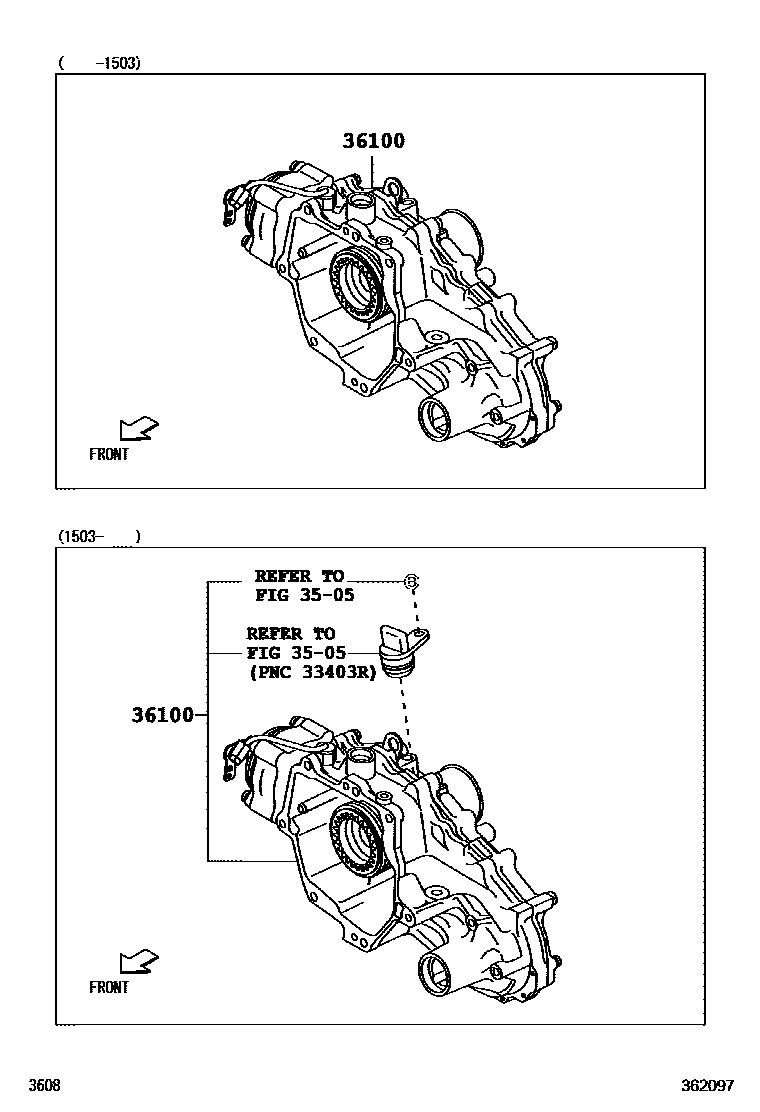

TRANSFER ASSEMBLY & GASKET KIT

0001 1 0002 1

3505SPEEDOMETER DRIVEN GEAR (ATM)

→ Go to FIG 35-05

36100TRANSFER ASSY

main36110-B5130iS510..4AT201409-201503

main36110-B5140iS510..EXT..5MT; S510..SPL..5MT201610-201711

main36110-B5141supersedes 36110-B5111iS510..EXT..5MT; S510..SPL..5MT201711

main36110-B5170iS510..4AT201503-201610

main36110-B5171iS510..4AT201711

main36110-B5100supersedes 36110-B5110iS510..SPL..5MT201610-201711

2 parts on this diagram · 2 diagrams in section
