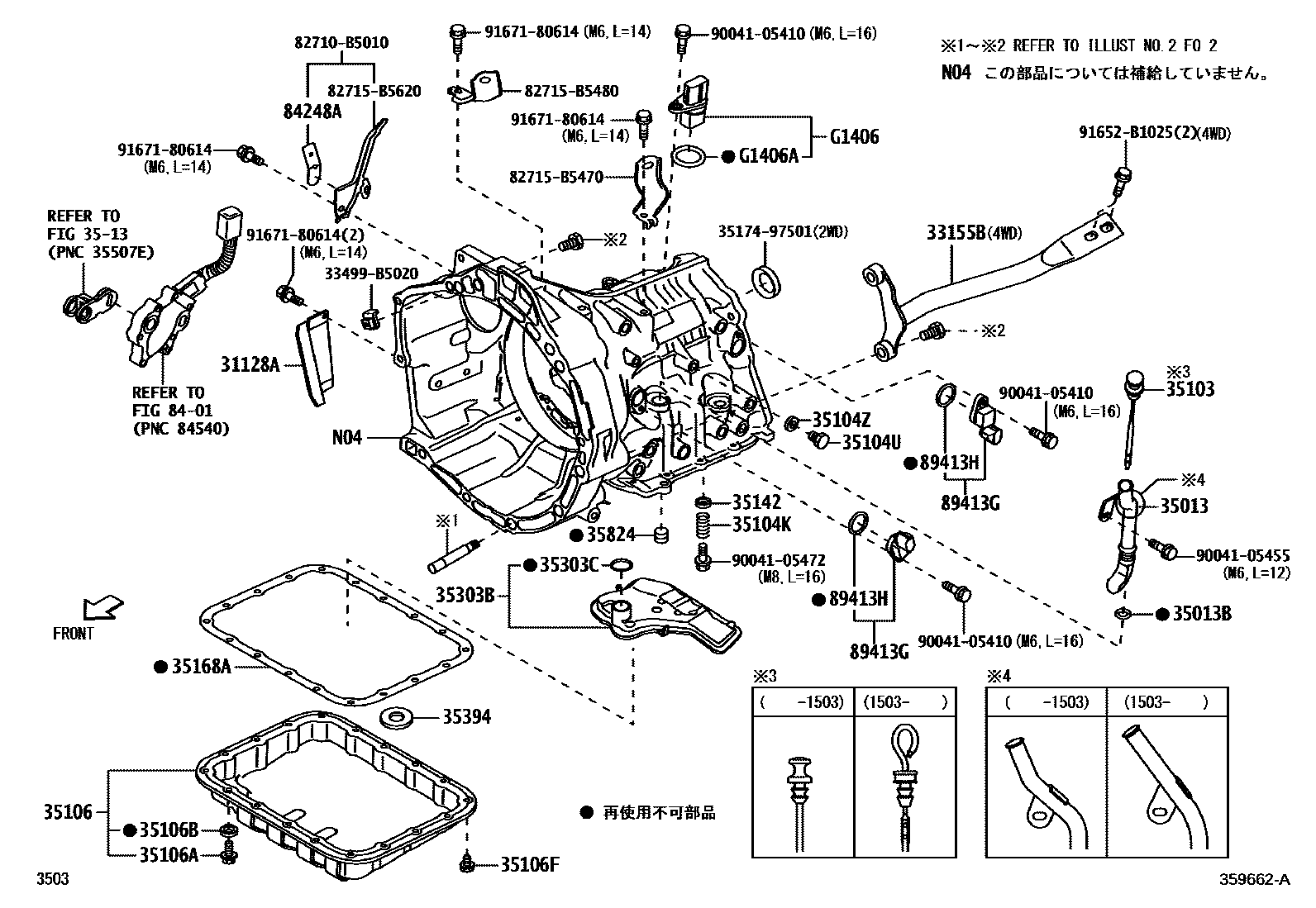

TRANSMISSION CASE & OIL PAN (ATM)

0001 1 0002 1

31128ACOVER, CLUTCH HOUSING UNDER(ATM)

main31123-B5020iS500,510..4AT201610

33155BSTIFFENER, POWER TRAIN

main36119-B5040iS510..4AT201409-201610

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-B1060iS500,510..4AT201409-201503

main35013-B5060iS500,510..4AT201503-201508

main35013-B5061iS500,510..4AT201610

35013BRING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90043-01193iS500,510..4AT201409-201610

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-B1050iS510..4AT201409-201503

main35103-B1060iS500..4AT201409-201503

main35103-B5020iS510..4AT201503-201610

main35103-B5030iS500..4AT201503-201610

35104KCOMPRESSION SPRING, TRANSAXLE CASE

main90045-01951iS500,510..4AT201409-201610

35104UBOLT (FOR TRANSAXLE CASE)

main90041-05404×4iS500,510..4AT201409-201610

35104ZGASKET (FOR TRANSAXLE CASE)

main90044-30317×4iS500,510..4AT201409-201610

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35160-B1030iS500,510..4AT201409-201610

35106APLUG SUB-ASSY, DRAIN (ATM)

main90043-41041iS500,510..4AT201409-201610

35106BGASKET, DRAIN PLUG (ATM)

main90044-30281iS500,510..4AT201409-201610

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90041-20203×18iS500,510..4AT201409-201610

3513THROTTLE LINK & VALVE LEVER (ATM)

→ Go to FIG 35-13

35142GASKET, TRANSMISSION CASE(ATM)

main90044-30330iS500,510..4AT201409-201610

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-B1060iS500,510..4AT201409-201610

35303BSTRAINER SUB-ASSY,OIL

main35303-B1010iS500,510..4AT201409-201610

35303CRING,O(FOR OIL STRAINER)

main90043-01364iS500,510..4AT201409-201610

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main33449-B2010iS500,510..4AT201409-201610

35824SEAL, BRAKE CYLINDER

main35824-97501iS500,510..4AT201409-201610

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

84248ACLAMP, SWITCH HARNESS

main84248-B5020iS500,510..4AT201409-201610

89413GSENSOR, TRANSMISSION REVOLUTION

main89413-97202×2iS500,510..4AT201409-201610

89413HRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90043-01278×2iS500,510..4AT201409-201610

G1406CONNECTOR SUB-ASSY, TRANS SOLENOID

mainG1406B1010iS500,510..4AT201409-201610

G1406ARING, O(FOR TRANS SOLENOID CONNECTOR)

main44618-B1010iS500,510..4AT201409-201610

33499B5020

main33499-B5020

3517497501SEPARATOR, TRANSAXLE HOUSING OIL

main35174-97501

82710B5010HARNESS ASSY, OIL HEATER

main82710-B5010

82715B5470BRACKET,WIRING HARNESS CLAMP

main82715-B5470

82715B5480BRACKET,WIRING HARNESS CLAMP

main82715-B5480

82715B5620BRACKET,WIRING HARNESS CLAMP

main82715-B5620

9004105410

main90041-05410

9004105455

main90041-05455

9004105472

main90041-05472

91652B1025

main91652-B1025

9167180614

main91671-80614

36 parts on this diagram · 2 diagrams in section
