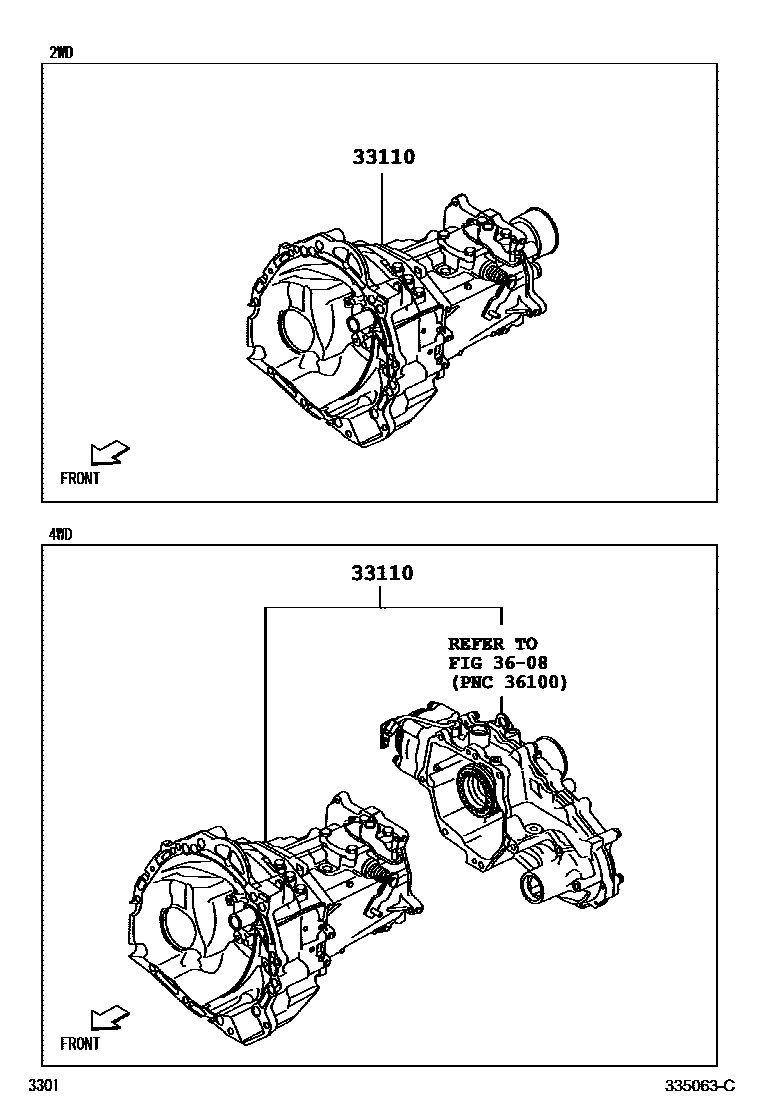

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

33110TRANSMISSION ASSY, MANUAL

main33010-B5130iS510..EXT..5MT; S510..SPL..5MT201610-201711

main33010-B5131supersedes 33010-B5121iS510..EXT..5MT; S510..SPL..5MT201711

main33030-B5231iS500..5MT201711

main33010-B5090supersedes 33010-B5120iS510..SPL..5MT201412-201610

main33030-B5190supersedes 33030-B5230iS500..5MT201412-201610

main33030-B5191iS500..SPL..5MT201711-202009

3608TRANSFER ASSEMBLY & GASKET KIT

→ Go to FIG 36-08

2 parts on this diagram · 1 diagram in section
