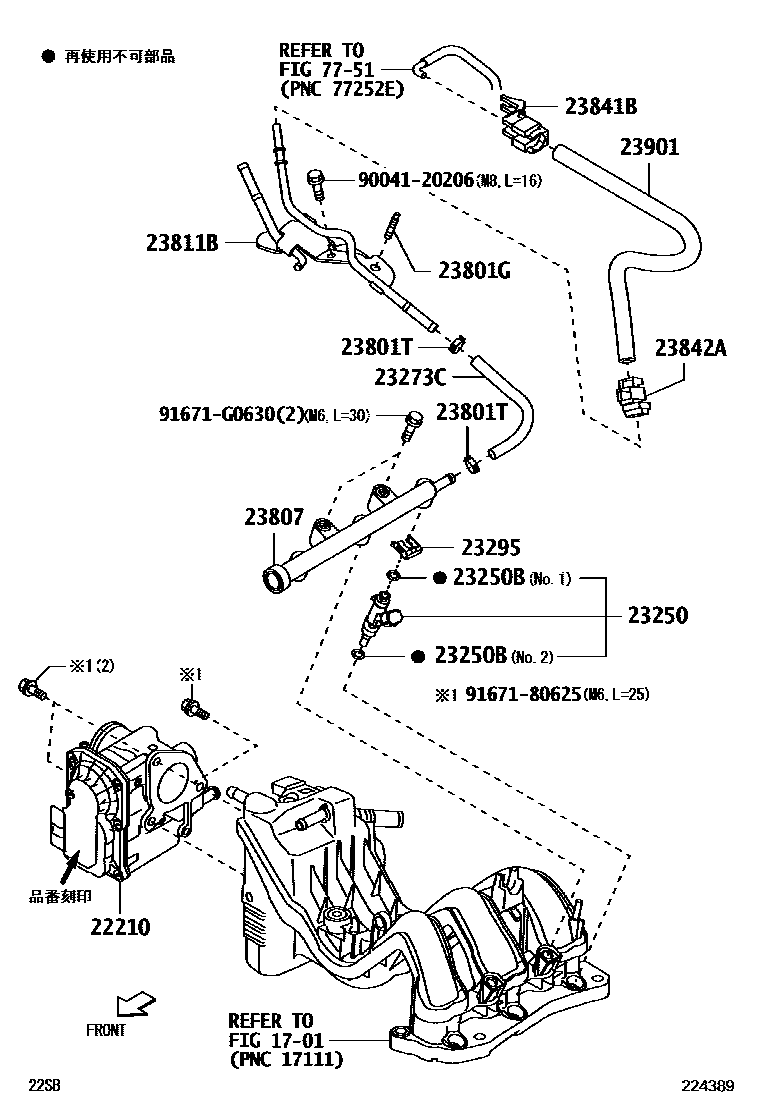

FUEL INJECTION SYSTEM

1701MANIFOLD

→ Go to FIG 17-01

22210BODY ASSY, THROTTLE

main22030-B2060iKFVE..S500,510201409-201503

main22030-B5010iKFVE..S500,510201503-201610

23250INJECTOR ASSY, FUEL

main23250-B2050×3iKFVE..S500,510201409-201610

23250BRING, O(FOR FUEL INJECTOR)

main90043-01348×3iKFVE..S500,510201610

main90043-01349×3iKFVE..S500,510201409-201610

23273CHOSE, FUEL, NO.2

main23273-B2020iKFVE..S500,510201409-201610

23295HOLDER, INJECTOR, NO.1

main23295-B2020×3iKFVE..S500,510201409-201610

23801GBOLT, UNION(FOR FUEL PIPE)

main90041-16487iKFVE..S500,510201409-201412

main90041-26008iKFVE..S500,510201412-201610

23801TCLAMP OR CLIP, FUEL HOSE(FOR EFI)

main90044-67400×2iKFVE..S500,510201409-201610

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-B2040iKFVE..S500,510201409-201610

23811BPIPE, FUEL, NO.1

main23811-B2030iKFVE..S500,510201409-201610

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-B1010iKFVE..S500,510201409-201610

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-B5010iKFVE..S500,510201409-201610

23901TUBE SUB-ASSY, FUEL

main23901-B5010iKFVE..S500,510201409-201610

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9004120206

main90041-20206

9167180625

main91671-80625

91671G0630

main91671-G0630

17 parts on this diagram · 1 diagram in section
