STARTER

0001 1 0002 1

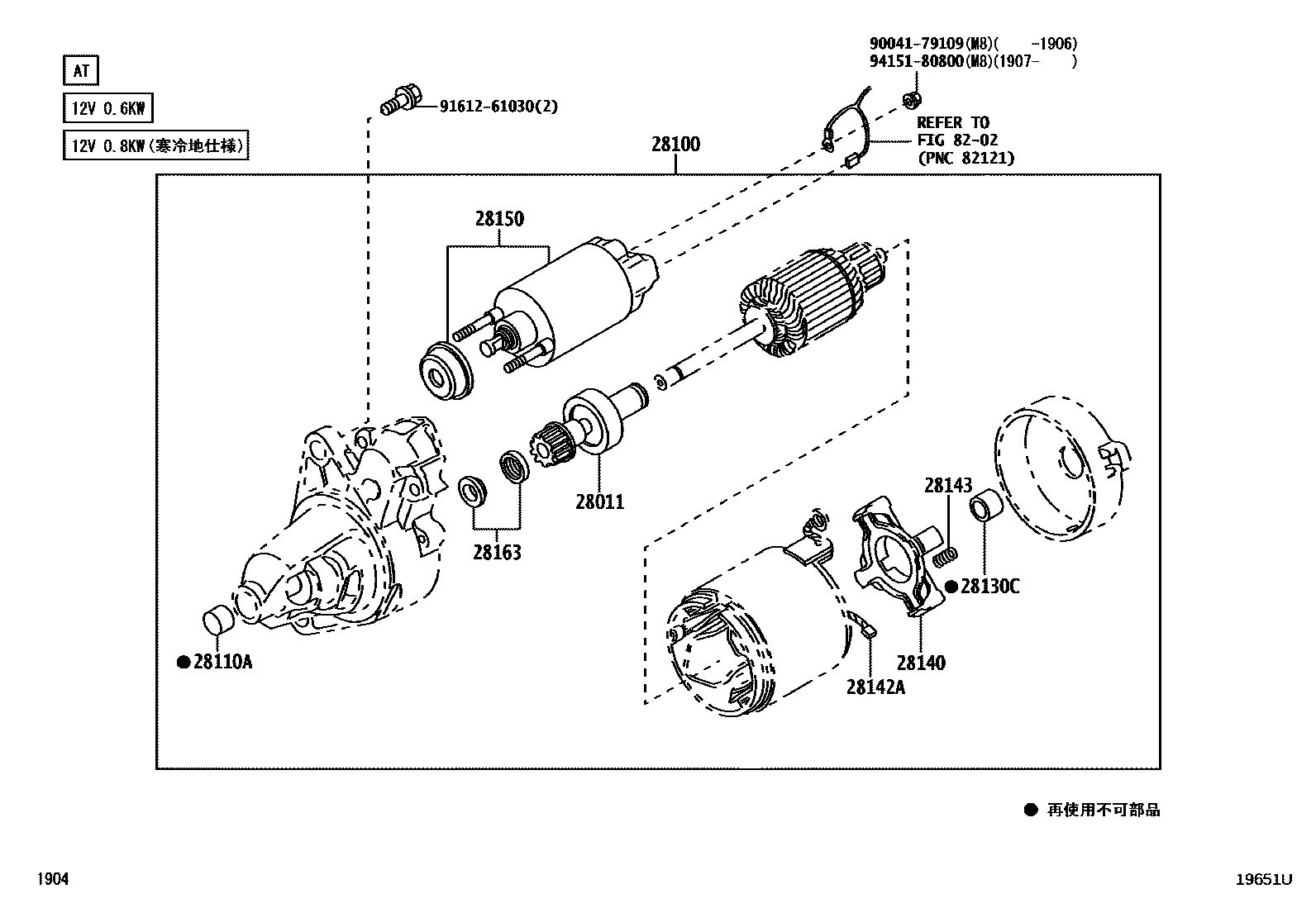

28011CLUTCH SUB-ASSY, STARTER

main28011-87208iKFVE..S500,510..4AT201610

main28011-97502iKFVE..S500,510..5MT201409-201610

28100STARTER ASSY

main28100-B2160supersedes 28100-B2150iKFVE..S500,510..5MT201610

main28100-B5030supersedes 28100-B5020iKFVE..S500,510..4AT201409-201610

28110ABEARING(FOR STARTER HOUSING)

main28277-87201supersedes 28271-87501iKFVE..S500,510201610

28130CBEARING, STARTER FLANGE

main28277-87201supersedes 28271-87502iKFVE..S500,510201409-201610

28140HOLDER ASSY, STARTER BRUSH

main28149-87501iKFVE..S500,510201409-201610

28142ASTARTER KIT

main28142-87504×4iKFVE..S500,510201610

28143SPRING, STARTER BRUSH

main28143-10020×4iKFVE..S500,510201409-201610

28150SWITCH ASSY, MAGNET STARTER

main28150-87536iKFVE..S500,510201409-201610

28163NUT OR COLLAR, PINION STOP, STARTER

main28142-87505iKFVE..S500,510201409-201610

8202WIRING & CLAMP

→ Go to FIG 82-02

9004179109

main90041-79109

9161261030

main91612-61030

9415180800

main94151-80800

13 parts on this diagram · 2 diagrams in section
