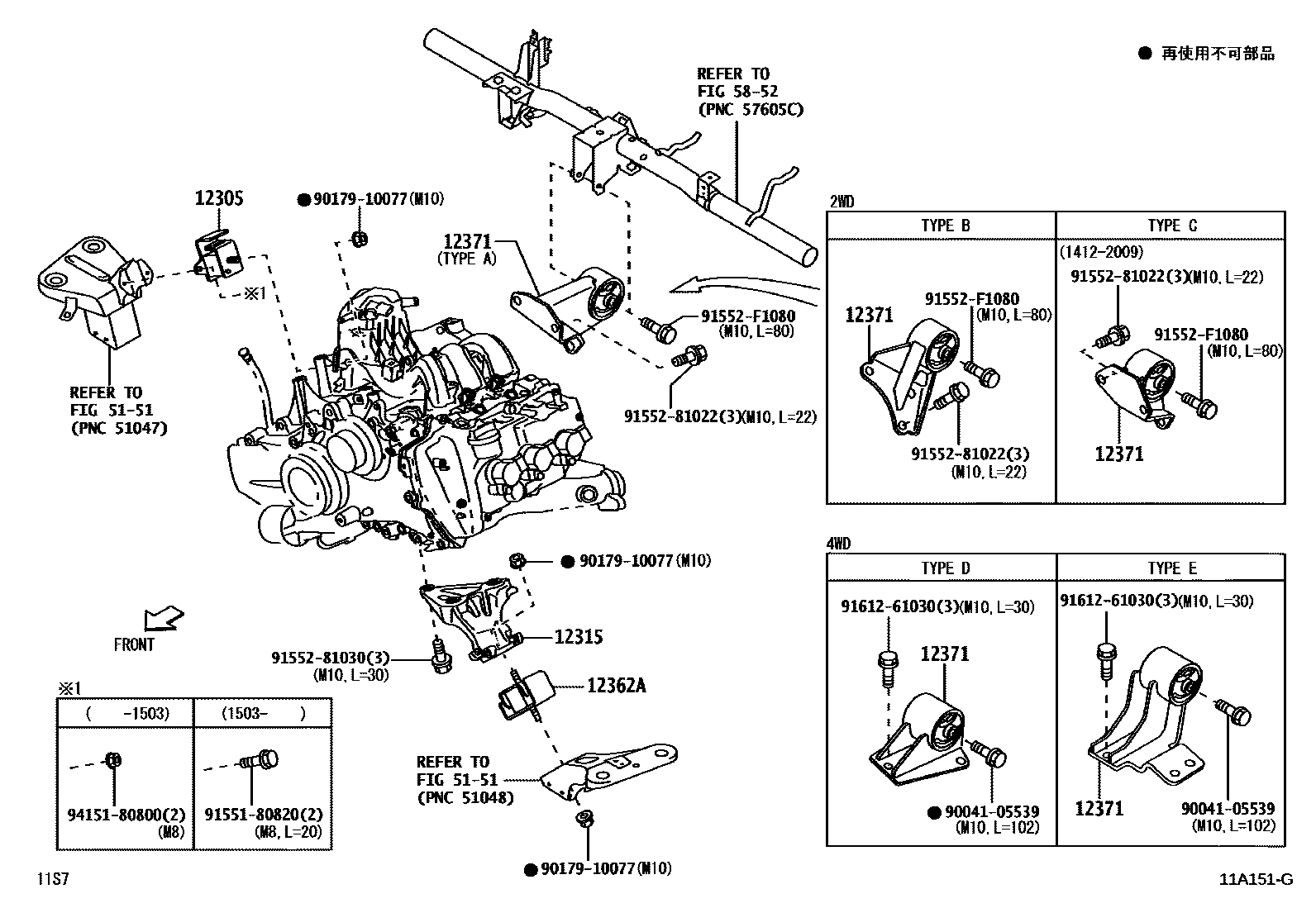

MOUNTING

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12361-B2010iKFVE..S500,510201610

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-B2080iKFVE..S500,510201409-201610

12362AINSULATOR, ENGINE MOUNTING, FRONT LH

main12362-B2071iKFVE..S500,510201409-201610

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-B5050iKFVE..S500..5MT201610

main12371-B5100iKFVE..S500..4AT201409-201610

main12371-B5101iKFVE..S500..4AT202004

main12371-B5130supersedes 12371-B5120iKFVE..S510..4AT;KFVE..S510..EXT..5MT; KFVE..S510..SPL..5MT201409-201610

main12371-B5110supersedes 12371-B5050iKFVE..S500..5MT201412-201610

5151FRAME

→ Go to FIG 51-51

5852REAR FLOOR PANEL & REAR FLOOR MEMBER

→ Go to FIG 58-52

9004105539

main90041-05539

9017910077

main90179-10077

9155180820

main91551-80820

9155281022

main91552-81022

9155281030

main91552-81030

91552F1080

main91552-F1080

9161261030

main91612-61030

9415180800

main94151-80800

14 parts on this diagram · 1 diagram in section
