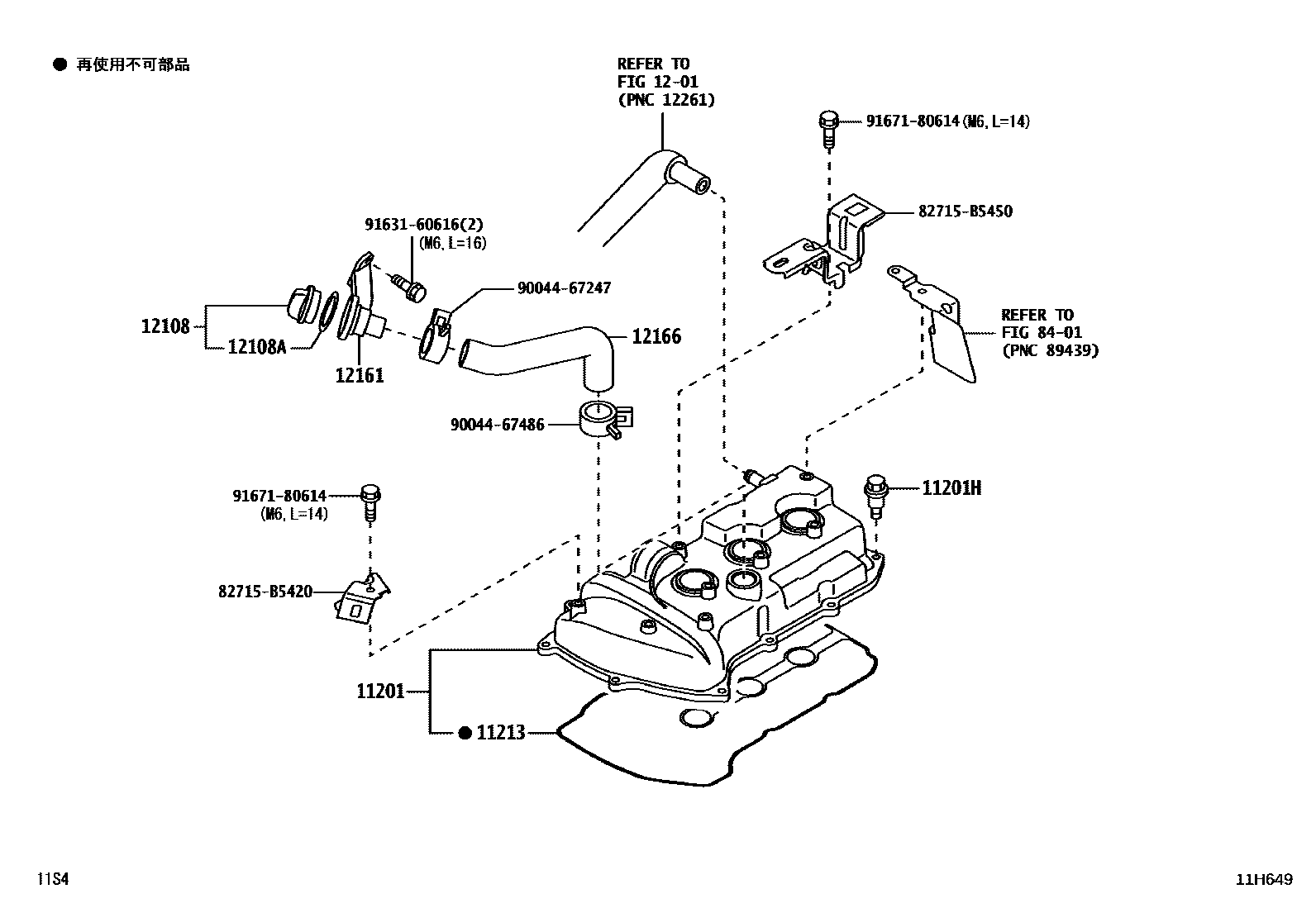

CYLINDER HEAD

0001 1 0002 1

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-B2112iKFVE..S500,510201409-201610

main11201-B2113iKFVE..S500,510201707

11201HBOLT(FOR CYLINDER HEAD COVER)

main91551-80620×10iKFVE..S500,510201610

11213GASKET, CYLINDER HEAD COVER

main11213-B2050iKFVE..S500,510201409-201610

main11213-B2051iKFVE..S500,510201810

1201VENTILATION HOSE

→ Go to FIG 12-01

12108CAP SUB-ASSY, OIL FILLER

main12180-97201iKFVE..S500,510201409-201610

12108AGASKET(FOR OIL FILLER CAP)

main12195-87206iKFVE..S500,510201409-201610

12161TUBE, OIL FILLER

main12161-97501iKFVE..S500,510201409-201610

12166HOSE, OIL FILLER

main12186-B5010iKFVE..S500,510201610

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

82715B5420BRACKET,WIRING HARNESS CLAMP

main82715-B5420

82715B5450BRACKET,WIRING HARNESS CLAMP

main82715-B5450

9004467247

main90044-67247

9004467486

main90044-67486

9163160616

main91631-60616

9167180614

main91671-80614

15 parts on this diagram · 2 diagrams in section
