STANDARD TOOL

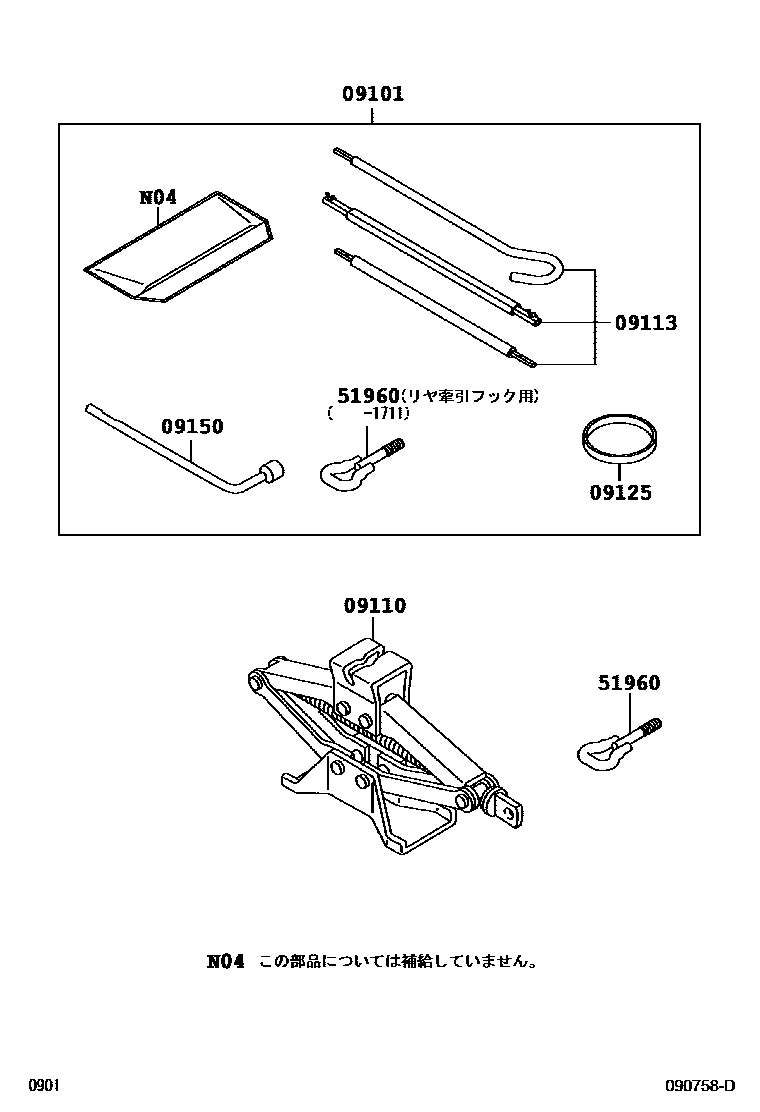

Parts diagram

09101TOOL SET, STANDARD W/O JACK

main09101-B5030i201610

main09101-B5080supersedes 09101-B5030i201409-201610

main09101-B5090i201610-201711

main09101-B5100supersedes 09101-B5030i201409-201610

09110JACK ASSY

main09111-B5020i201610

09113HANDLE, JACK

main09113-B5020i201409-201610

09125BAND, TOOL BAG

main09125-B5010i201409-201610

09150WRENCH, HUB NUT BOX

main09151-B5010i201610

main09151-97501i201610-201711

51960HOOK ASSY, FRONT

main51095-B5020i201409-201610

6 parts on this diagram · 1 diagram in section
