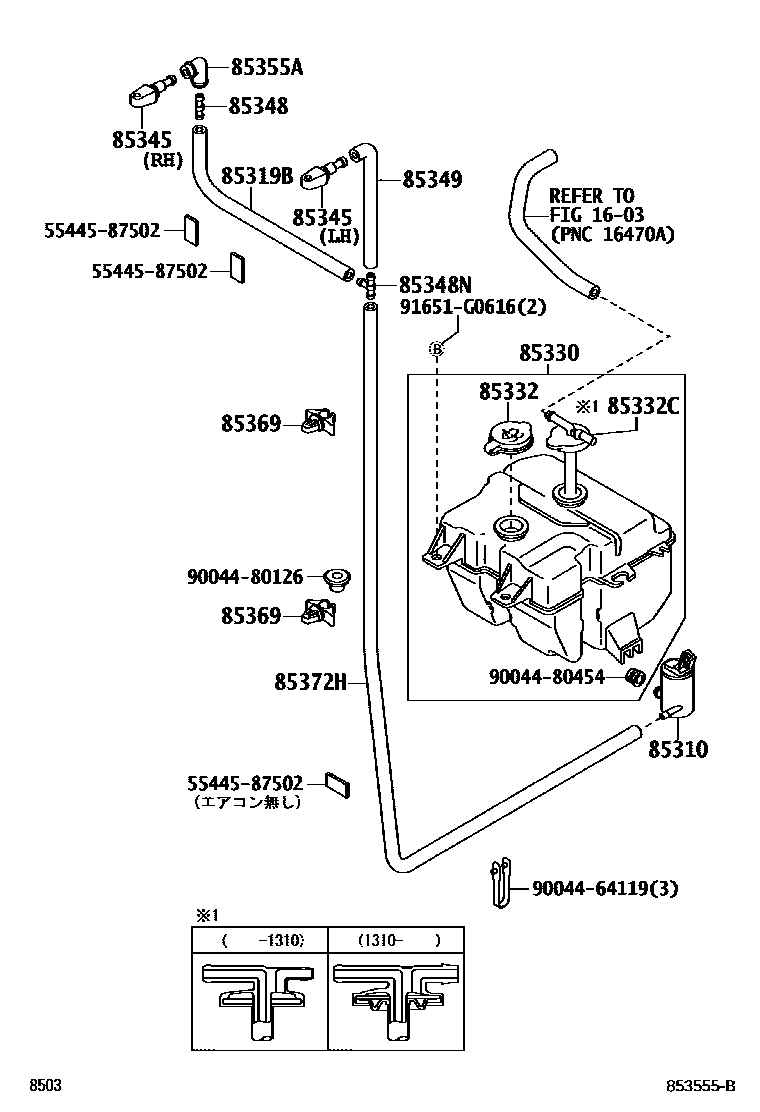

WINDSHIELD WASHER

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-87708iS201,211201112

85319BHOSE, WINDOW WASHER

main85376-87202iS201,211201112

85330JAR ASSY, WINDSHIELD WASHER

main85315-B5010iS201,211201310

main85330-87721iS201,211201112-201310

85332CAP, WINDSHIELD WASHER JAR

main85332-87204iS201,211201112-201407

85332CCAP, FRONT WASHER TANK

main85332-87705iS201,211201112-201310

main85332-B5020iS201,211201310-201407

85345NOZZLE, WINDSHIELD WASHER

main85381-B5020iS201,211201112-201407

main85381-B5030iS201,211201112-201407

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-87201iS201,211201112

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85348-87501iS201,211201112

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-87502iS201,211201112

85355AJOINT, WINDSHIELD WASHER ELBOW

main85355-87701iS201,211201112-201407

85369CLAMP

main85371-87401×2iS201,211201112

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main85374-97203iS201,211; S201,211..SPL201112

5544587502GARNISH, INSTRUMENT PANEL OUTSIDE, RH

main55445-87502

9004464119

main90044-64119

9004480126

main90044-80126

9004480454

main90044-80454

91651G0616

main91651-G0616

18 parts on this diagram · 1 diagram in section
