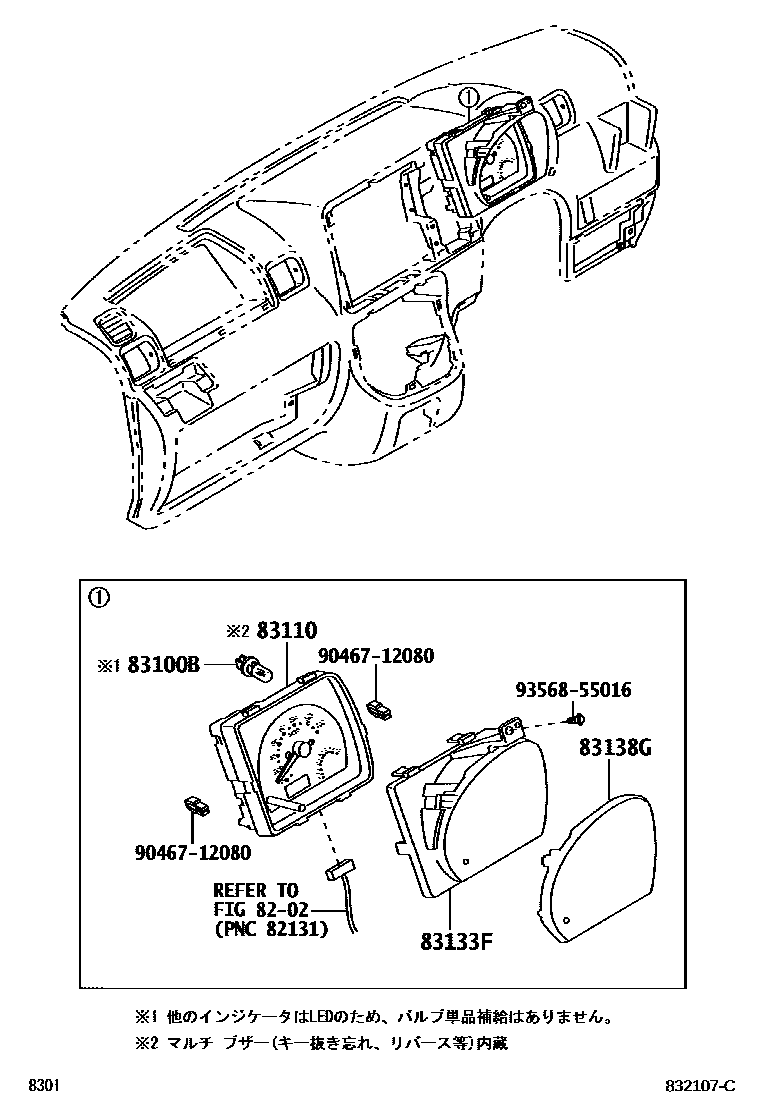

METER

0001 1 0002 1

8202WIRING & CLAMP

→ Go to FIG 82-02

83100BBULB, COMBINATION METER, NO.1

main83119-97505iS201,211201112-201407

83110SPEEDOMETER ASSY

main83220-B5B00iS201,211..MTM..EXT; S201,211..MTM..SPL201112

main83220-B5B70iS201,211..ATM..EXT; S201,211..ATM..SPL201112

main83220-B5A90supersedes 83220-B5A80iS211..MTM..SPL201112

main83220-B5B10iS211..MTM..EXT; S211..MTM..SPL201112

main83220-B5B20iS201,211..MTM..SPL; S201..MTM..EXT201112

main83220-B5B30iS211..MTM..EXT201112-201212

main83220-B5B60supersedes 83220-B5B50iS211..ATM..SPL201112

main83220-B5B80supersedes 83220-B5B50iS211..ATM..EXT; S211..ATM..SPL201112

main83220-B5B90iS211..ATM..EXT; S211..ATM..SPL201112

main83220-B5C00supersedes 83220-B5B50iS211..ATM..EXT; S211..ATM..SPL201112

main83220-B5C10supersedes 83220-B5A70iS201..MTM..EXT; S201..MTM..SPL201112

main83220-B5C20iS211..MTM..EXT; S211..MTM..SPL201112

main83220-B5C30iS211..MTM..EXT; S211..MTM..SPL201112

main83220-B5C40iS201..ATM..EXT; S201..ATM..SPL201212

main83220-B5C50iS211..ATM..EXT; S211..ATM..SPL201112

main83220-B5C60iS211..ATM..SPL201204-201212

83133FPLATE, METER

main83133-97509iS201,211201112-201407

83138GGLASS, COMBINATION METER

main83852-97503iS201,211201112

9046712080

main90467-12080

9356855016

main93568-55016

7 parts on this diagram · 2 diagrams in section
