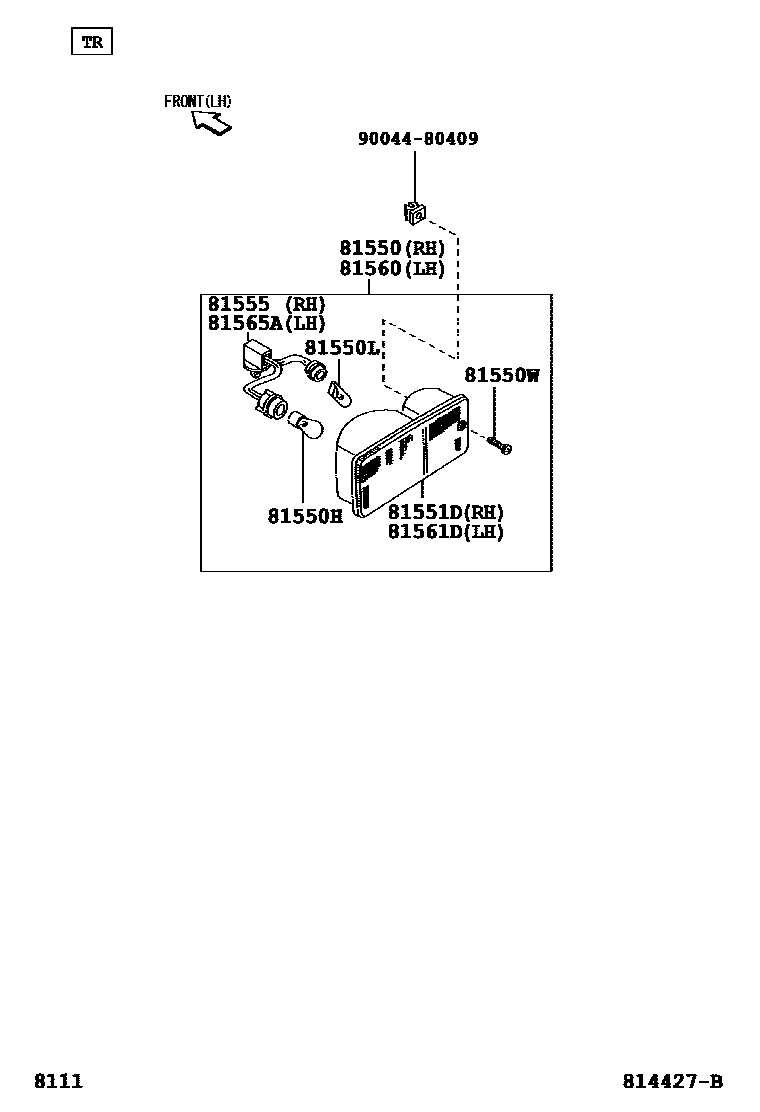

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-B5050iS201,211201112-201212

main81550-B5140iS201,211201212

81550HBULB, TAIL & STOP LAMP

main90049-51158×2iS201,211201112-201407

81550LBULB, REAR TURN SIGNAL LAMP

main90981-11059×2iS201,211201112

81550WSCREW(FOR RR COMBINATION LAMP)

main93540-65025×2iS201,211201112-201407

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-B5010iS201,211201112-201212

main81551-B5040iS201,211201212

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-97504iS201,211201112

81560LAMP ASSY, REAR COMBINATION, LH

main81560-B5050iS201,211201112-201212

main81560-B5140iS201,211201212

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-B5010iS201,211201112-201212

main81561-B5040iS201,211201212

81565ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-97504iS201,211201112

9004480409

main90044-80409

10 parts on this diagram · 1 diagram in section
