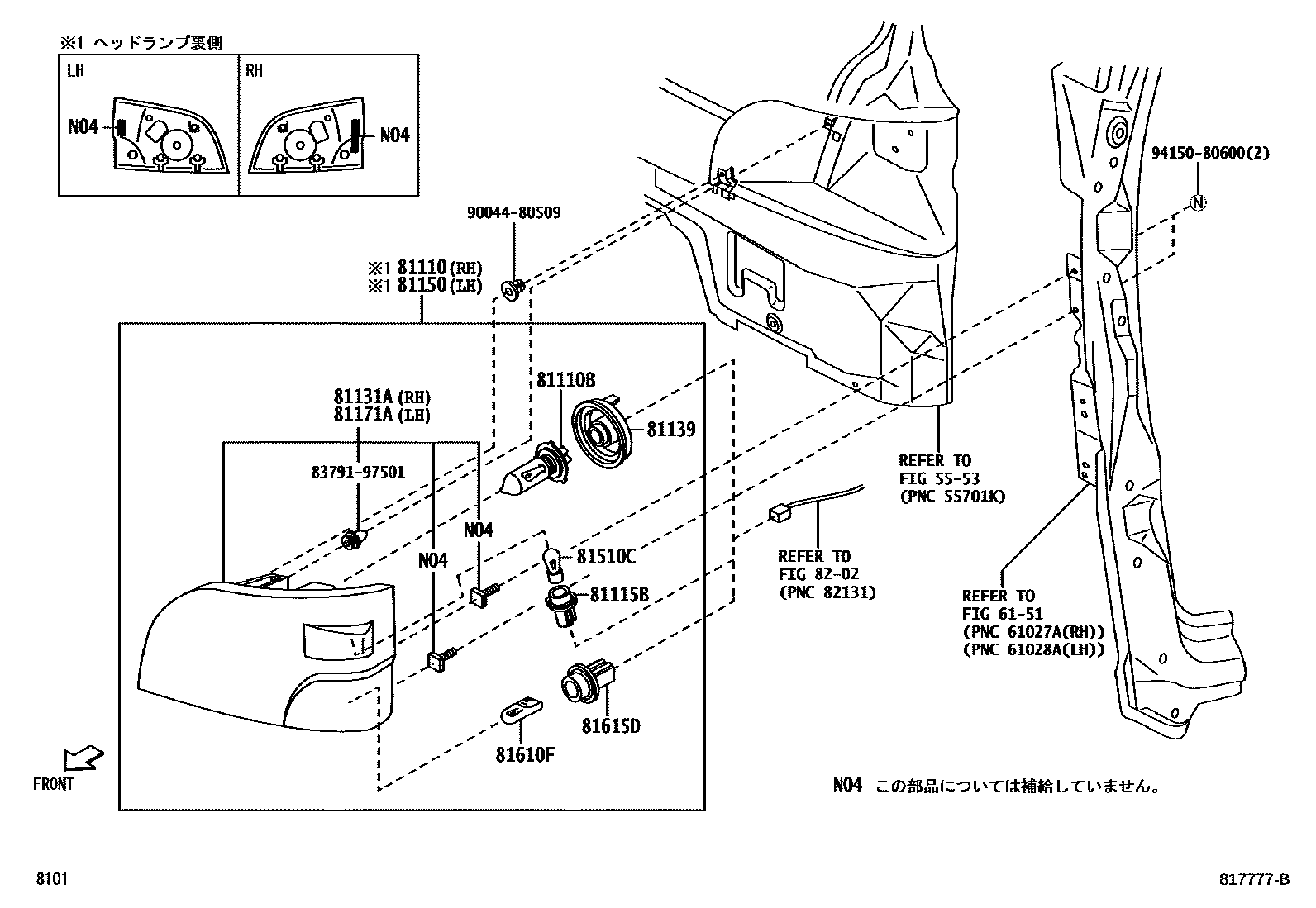

HEADLAMP

5553COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-53

6151SIDE MEMBER

→ Go to FIG 61-51

81110HEADLAMP ASSY, RH

main81110-B5050iS201,211201112-201407

81110BBULB(FOR HEADLAMP, NO.1)

main90049-51088×2iS201,211201112-201407

81115BSOCKET,HEADLAMP, NO.1

main81179-97501×2iS201,211201112

81131AUNIT, HEADLAMP, RH

main81130-B5040iS201,211201112-201407

81139COVER, HEADLAMP SOCKET

main81139-97501×2iS201,211201112-201304

main81139-B2030×2iS201,211201305

81150HEADLAMP ASSY, LH

main81150-B5050iS201,211201112-201407

81171AUNIT, HEADLAMP, LH

main81170-B5040iS201,211201112

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90049-51148×2iS201,211201112

81610FBULB(FOR CLEARANCE LAMP)

main90049-51183×2iS201,211201112

81615DSOCKET, CLEARANCE LAMP

main81125-97502×2iS201,211201112

8202WIRING & CLAMP

→ Go to FIG 82-02

8379197501

main83791-97501

9004480509

main90044-80509

9415080600

main94150-80600

16 parts on this diagram · 1 diagram in section
