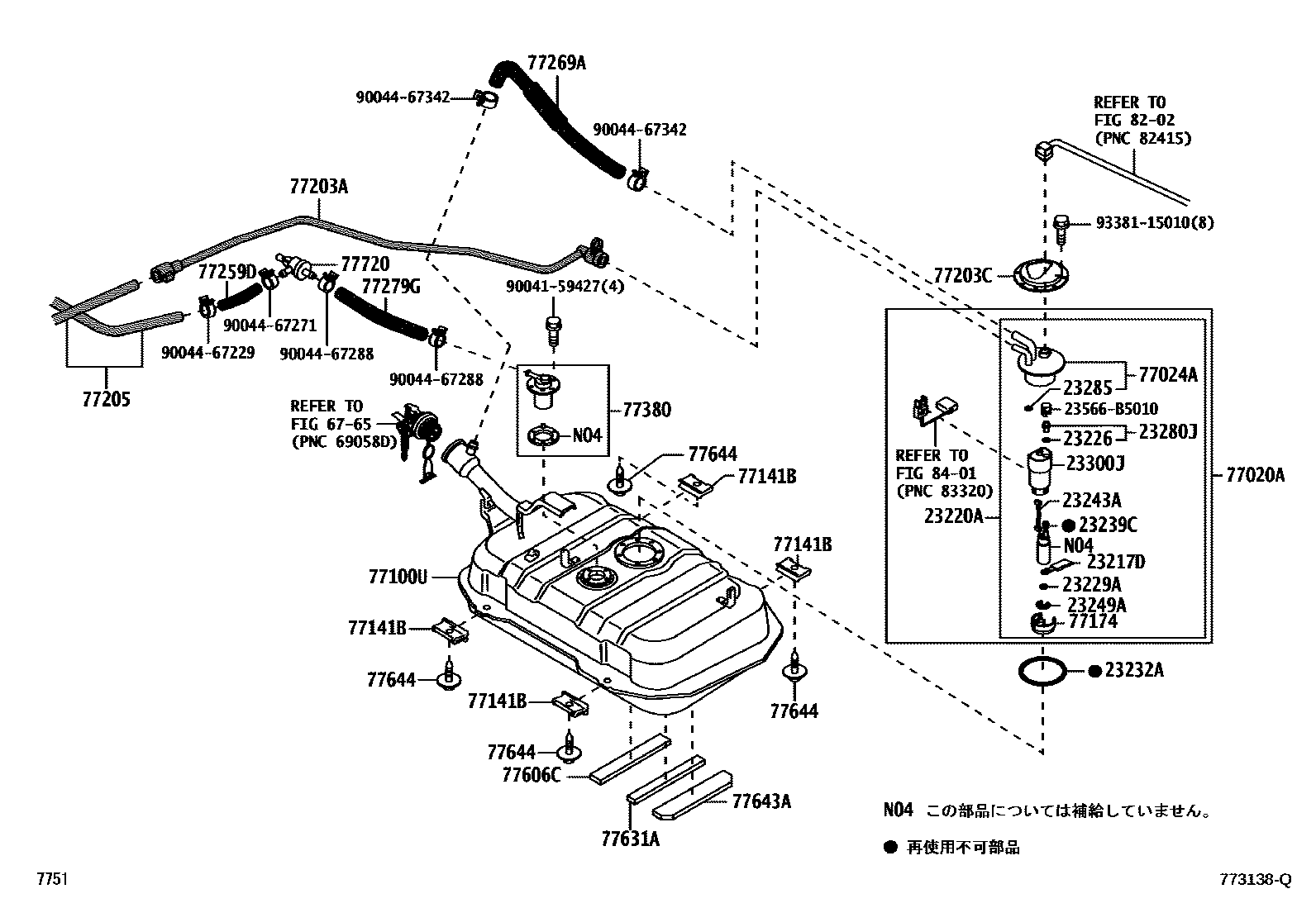

FUEL TANK & TUBE
23217DFILTER, FUEL PUMP
23220APUMP ASSY, FUEL W/FILTER
23226RING, O(FOR FUEL PUMP)
23229ACLIP(FOR FUEL PUMP FILTER)
23232AGASKET, FUEL PUMP
23239CSEAL, FUEL PUMP FILTER
23243AWIRE, FUEL PUMP MOTOR
23249ARUBBER, CUSHION(FOR FUEL PUMP)
23280JREGULATOR ASSY, FUEL PRESSURE
23285RING, O
23300JFILTER ASSY, FUEL
6765LOCK CYLINDER SET
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
77141BREINFORCEMENT, FUEL TANK FLANGE, NO.1
77174SUPPORT, FUEL SUCTION, NO.1
77203ATUBE SUB-ASSY, FUEL SUCTION
77203CBRACKET, FUEL PUMP
77205TUBE SUB-ASSY, FUEL MAIN
77259DHOSE, FUEL, NO.1
77269AHOSE, FUEL TANK BREATHER
77279GHOSE, FUEL, NO.2
77380VALVE ASSY, FUEL CUT OFF
77606CPROTECTOR, FUEL TANK, NO.2
77631APROTECTOR, FUEL TANK, LOWER CENTER
77643APROTECTOR, FUEL TANK, NO.3
77644BOLT, FUEL TANK
77720VALVE SUB-ASSY, SAFETY
8202WIRING & CLAMP
8401SWITCH & RELAY & COMPUTER
23566B5010COVER(FOR VACUUM LOCK DIAPHRAGM)
main23566-B5010
9004159427
main90041-59427
9004467229
main90044-67229
9004467271
main90044-67271
9004467288
main90044-67288
9004467342
main90044-67342
9338115010
main93381-15010
38 parts on this diagram · 2 diagrams in section
