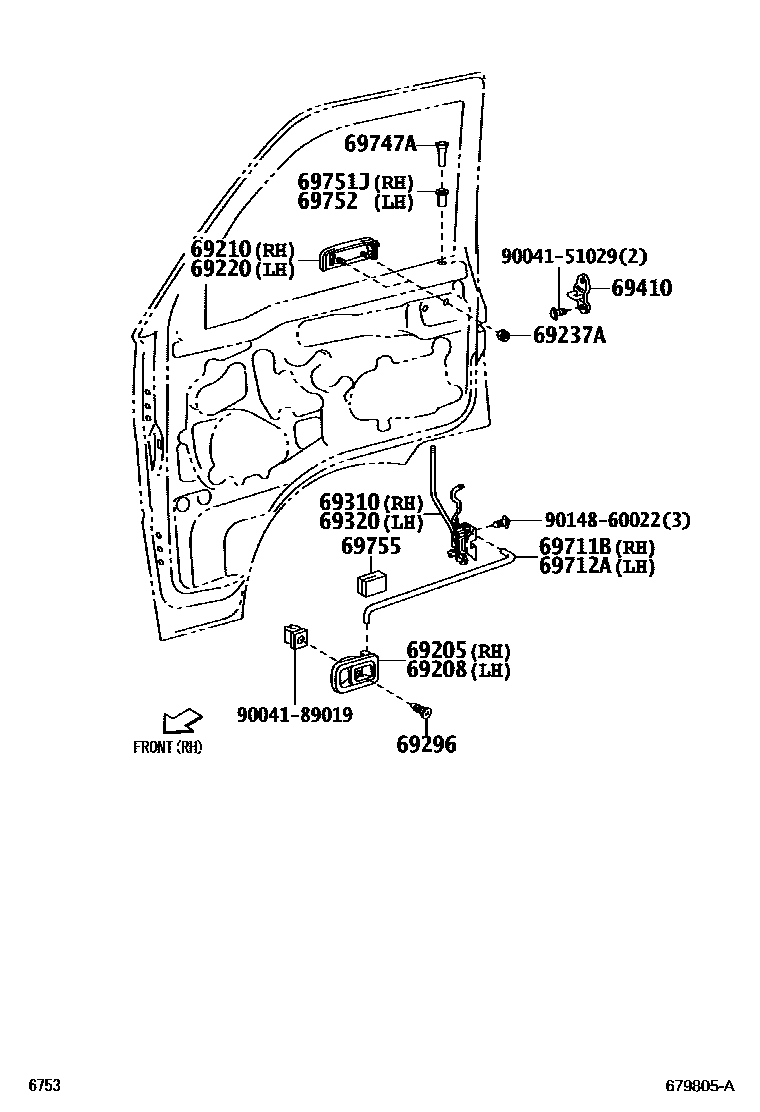

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69270-87707-B0iS201,211201112-201407

GRAY,TRIM1#

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69270-87707-B0iS201,211201112-201407

GRAY,TRIM1#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-87214iS201,211..SPL201203-201204

main69210-87510iS201,211..SPL201112-201202

main69210-87511-A1iS201,211..EXT201112-201203

WHITE,W09

main69210-87511-B1iS201,211..EXT201112-201203

SILVER ME.,S28

main69210-B5030-A0iS201,211..EXT201203

WHITE,W09

main69210-B5030-B0iS201,211..EXT201203

SILVER ME.,S28

main69210-B5040iS201,211..SPL201205

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-87214iS201,211..SPL201203-201204

main69220-87510iS201,211..SPL201112-201202

main69220-87511-A1iS201,211..EXT201112-201203

WHITE,W09

main69220-87511-B1iS201,211..EXT201112-201203

SILVER ME.,S28

main69220-B5030-A0iS201,211..EXT201203

WHITE,W09

main69220-B5030-B0iS201,211..EXT201203

SILVER ME.,S28

main69220-B5040iS201,211..SPL201205

69237ANUT, FRONT DOOR HANDLE

main90041-79104×4iS201,211201112-201407

69296SCREW, DOOR INSIDE HANDLE

main93530-55012×2iS201,211201112-201407

69310LOCK ASSY, FRONT DOOR, RH

main69310-B5070iS201,211..EXT201112-201407

main69310-97509supersedes 69310-97508iS201,211..SPL201112-201407

69320LOCK ASSY, FRONT DOOR, LH

main69320-B5050iS201,211..EXT201112-201407

main69320-97509supersedes 69320-97508iS201,211..SPL201112-201407

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-97501×2iS201,211201112

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-97502iS201,211201112

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-97502iS201,211201112

69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)

main69743-B5010-B1×2iS201,211201112

DK.GRAY,TRIM1#

69751JHOLDER, FRONT DOOR LOCK CONTROL KNOB, RH

main69751-87502-B1iS201,211..SPL201112

DK.GRAY,TRIM1#

69752HOLDER, FRONT DOOR LOCK CONTROL KNOB, LH

main69751-87502-B1iS201,211..SPL201112

DK.GRAY,TRIM1#

69755SILENCER, FRONT DOOR LOCK LINK

main69759-87207×2iS201,211201112

9004151029

main90041-51029

9004189019

main90041-89019

9014860022

main90148-60022

18 parts on this diagram · 1 diagram in section
