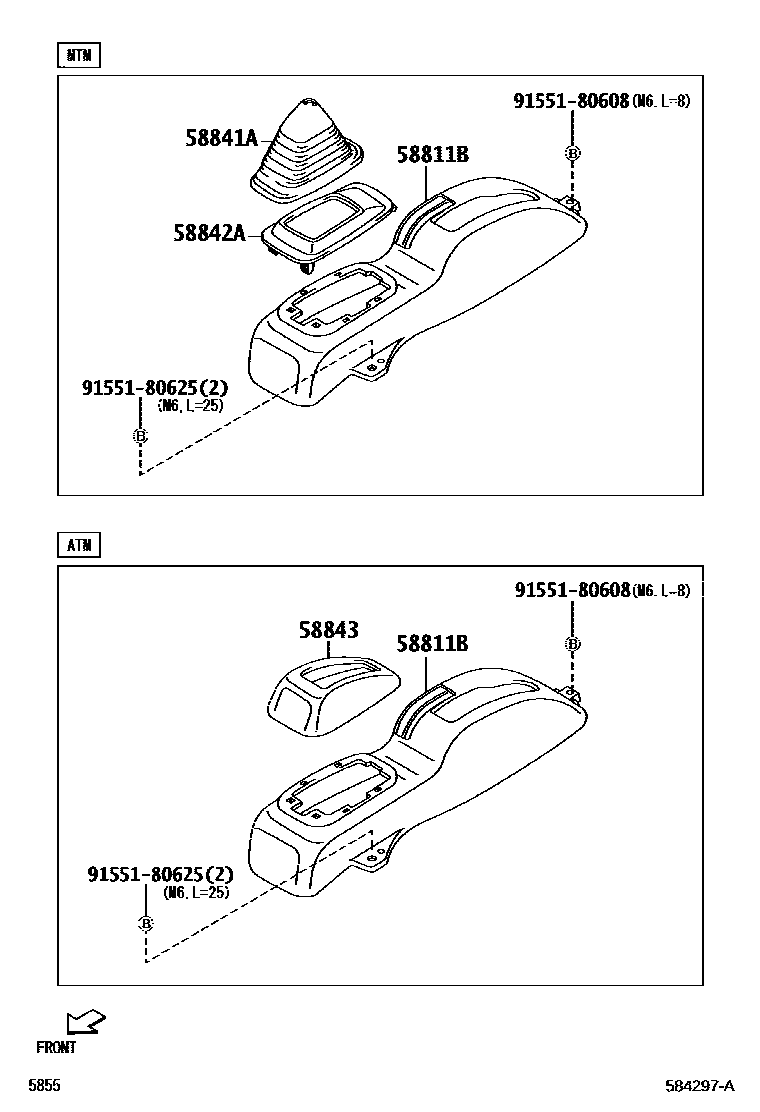

CONSOLE BOX & BRACKET

58811BBOX, CONSOLE

main58811-B5020-B0iS201;S211..ATM;S211..MTM..SPL201112

GRAY,TRIM1#

main58811-B5030-B0iS211..MTM..EXT; S211..MTM..SPL201112

58841ACOVER, SHIFTING HOLE

main58841-87504-B0iS201,211..MTM201112

GRAY,TRIM1#

58842AFRAME, SHIFTING HOLE

main58842-87503iS201,211..MTM201112

58843BEZEL, SHIFTING HOLE

main58843-87501-B0iS201,211..ATM201112

GRAY,TRIM1#

9155180608

main91551-80608

9155180625

main91551-80625

6 parts on this diagram · 1 diagram in section
