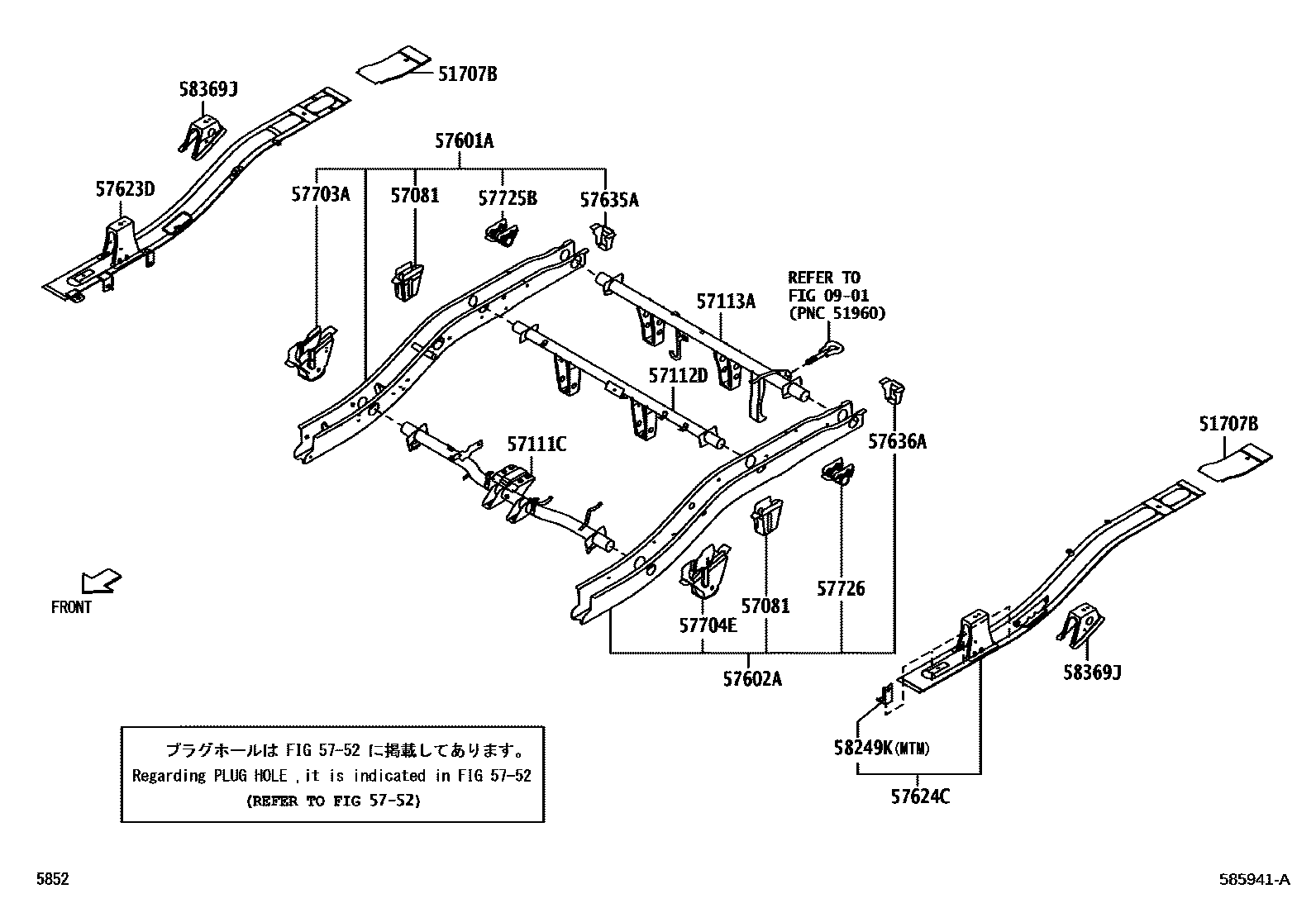

REAR FLOOR PANEL & REAR FLOOR MEMBER

0901STANDARD TOOL

→ Go to FIG 09-01

51707BBRACKET SUB-ASSY, CAB MOUNTING, NO.4

main51757-97501×2iS201,211201112

57081BRACKET SUB-ASSY, REAR BUMPER MOUNTING

main57702-87508iS201,211201112-201209

main57702-B5010iS201,211201210

57111CCROSSMEMBER, FLOOR, NO.1

main51201-B5060iS201201112-201210

main51201-B5061iS201201211

main51201-B5070iS211201112-201210

main51201-B5071iS211201211

57112DCROSSMEMBER, FLOOR, NO.2

main51202-97502iS201,211201112

57113ACROSSMEMBER, FLOOR, NO.3

main51203-B5010supersedes 51203-B5052iS201,211; S201..MTM;S211..MTM..SPL201112-201202

main51203-B5011supersedes 51203-B5052iS201,211; S201..MTM;S211..MTM..SPL201203-201211

main51203-B5012iS201,211; S201..MTM;S211..MTM..SPL201212

5752HOLE PLUG

→ Go to FIG 57-52

57601AMEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57023-B5010iS201,211201112

57602AMEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-97503iS201,211201112

57623DPLATE, REAR FLOOR SIDE MEMBER, RR RH

main57045-B5020iS201,211201112-201202

main57045-B5021iS201,211201203-201209

main57045-B5022iS201,211201210

57624CPLATE, REAR FLOOR SIDE MEMBER, RR LH

main57046-B5040iS201..ATM201112-201209

main57046-B5041iS211..ATM201203-201209

main57046-B5042iS201,211..ATM201210

main57046-B5060iS211..MTM201112-201202

main57046-B5061iS211..MTM201203-201208

main57046-B5062iS201,211..MTM201209-201210

main57046-B5063iS201,211..MTM201210

57635AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR RH

main51735-B5010iS201,211201112

57636AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR LH

main51743-97501iS201,211201112

57703ABRACKET SUB-ASSY, REAR SUSPENSION ARM, FRONT RH

main57707-97503iS201,211201112

57704EBRACKET SUB-ASSY, REAR SUSPENSION ARM, FRONT LH

main57708-97503iS201,211201112

57725BSUPPORT, REAR SUSPENSION MEMBER MOUNTING, NO.2 RH

main57703-97503iS201,211201112

57726SUPPORT, REAR SUSPENSION MEMBER MOUNTING, NO.2 LH

main57703-97503iS201,211201112

58249KBRACKET, CENTER FLOOR BOARD SUPPORT

main51437-97501×3iS201,211..MTM201112-201208

main51437-B5010×3iS201,211..MTM201209

58369JBRACKET, REAR FLOOR BRACE

main51755-B5010iS201,211201210

19 parts on this diagram · 1 diagram in section
