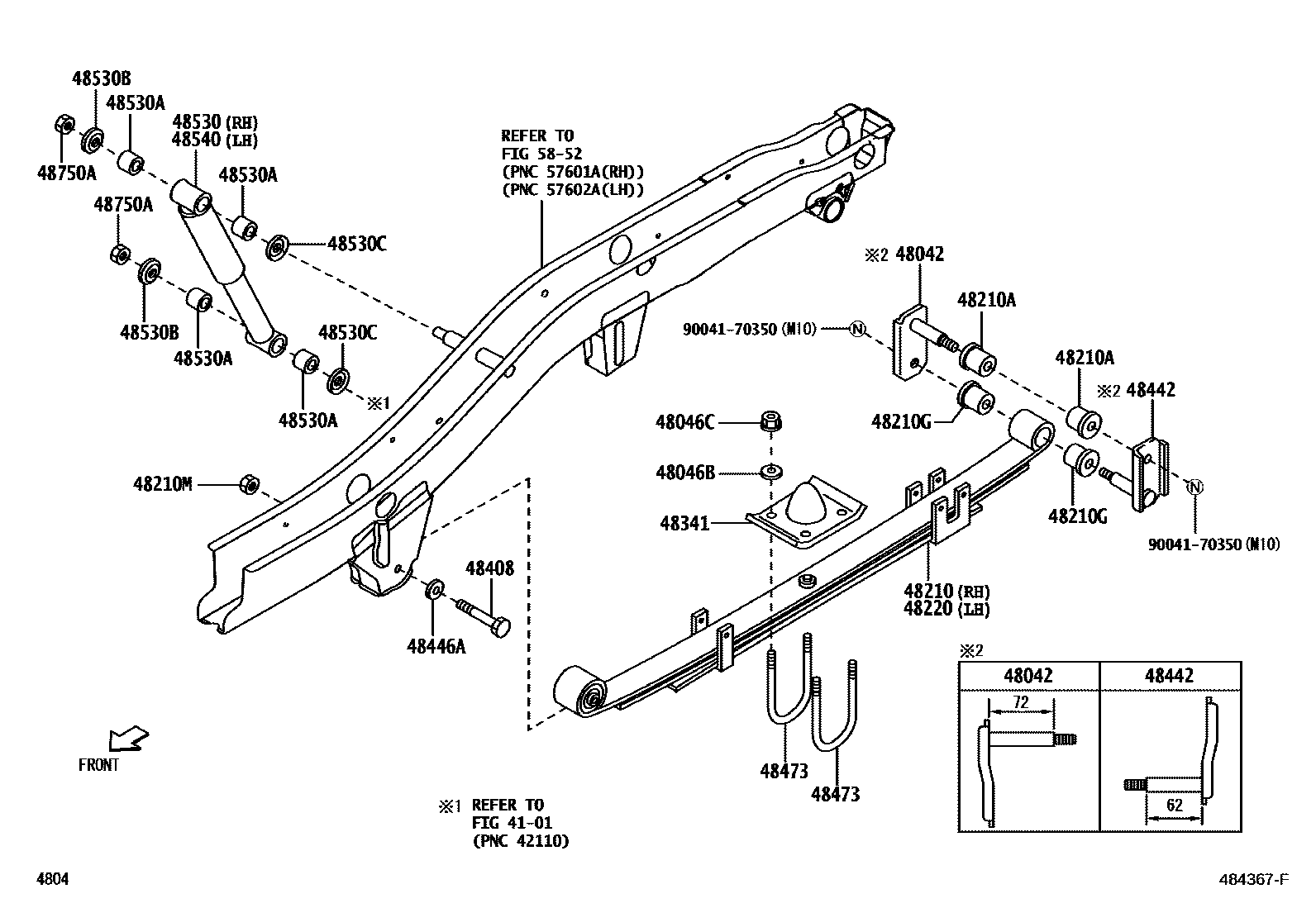

REAR SPRING & SHOCK ABSORBER

4101REAR AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 41-01

48042SHACKLE SUB-ASSY, REAR SPRING, NO.2

main48408-97502×2iS201,211201112-201407

48046BWASHER(FOR REAR SPRING U BOLT)

main94612-11001×8iS201,211201112-201407

48046CNUT(FOR REAR SPRING U BOLT)

main94151-81000×8iS201,211201112-201407

48210SPRING ASSY, REAR RH

main48210-B5020supersedes 48210-B5010iS201;S211..SPL; S211..EXT201112-201407

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90043-85172×4iS201,211201112-201407

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90043-85171×4iS201,211201112-201407

48210MNUT(FOR REAR SPRING)

main94130-01202×2iS201,211201112-201407

48220SPRING ASSY, REAR LH

main48210-B5020supersedes 48210-B5010iS201;S211..SPL; S211..EXT201112-201407

48341BUMPER, REAR SPRING

main48341-B5030×2iS201,211201112

48408PIN SUB-ASSY, SPRING BRACKET

main48423-87503×2iS201,211201112

48442SHACKLE, SPRING, NO.2

main48408-97501×2iS201,211201112

48446AWASHER, SPRING SHACKLE(FOR SPRING BRACKET PIN)

main94612-11200×2iS201,211201112-201407

48473SEAT, REAR SPRING U BOLT

main90041-17086×4supersedes 90041-17106iS201;S211..SPL; S211..EXT201112

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-97503iS201,211201112-201407

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90043-85002×8iS201,211201112

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03003×4iS201,211201112

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90042-09105×4iS201,211201112

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-97503iS201,211201112-201407

48750ANUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)

main94130-61200×4iS201,211201112

5852REAR FLOOR PANEL & REAR FLOOR MEMBER

→ Go to FIG 58-52

9004170350

main90041-70350

22 parts on this diagram · 1 diagram in section
