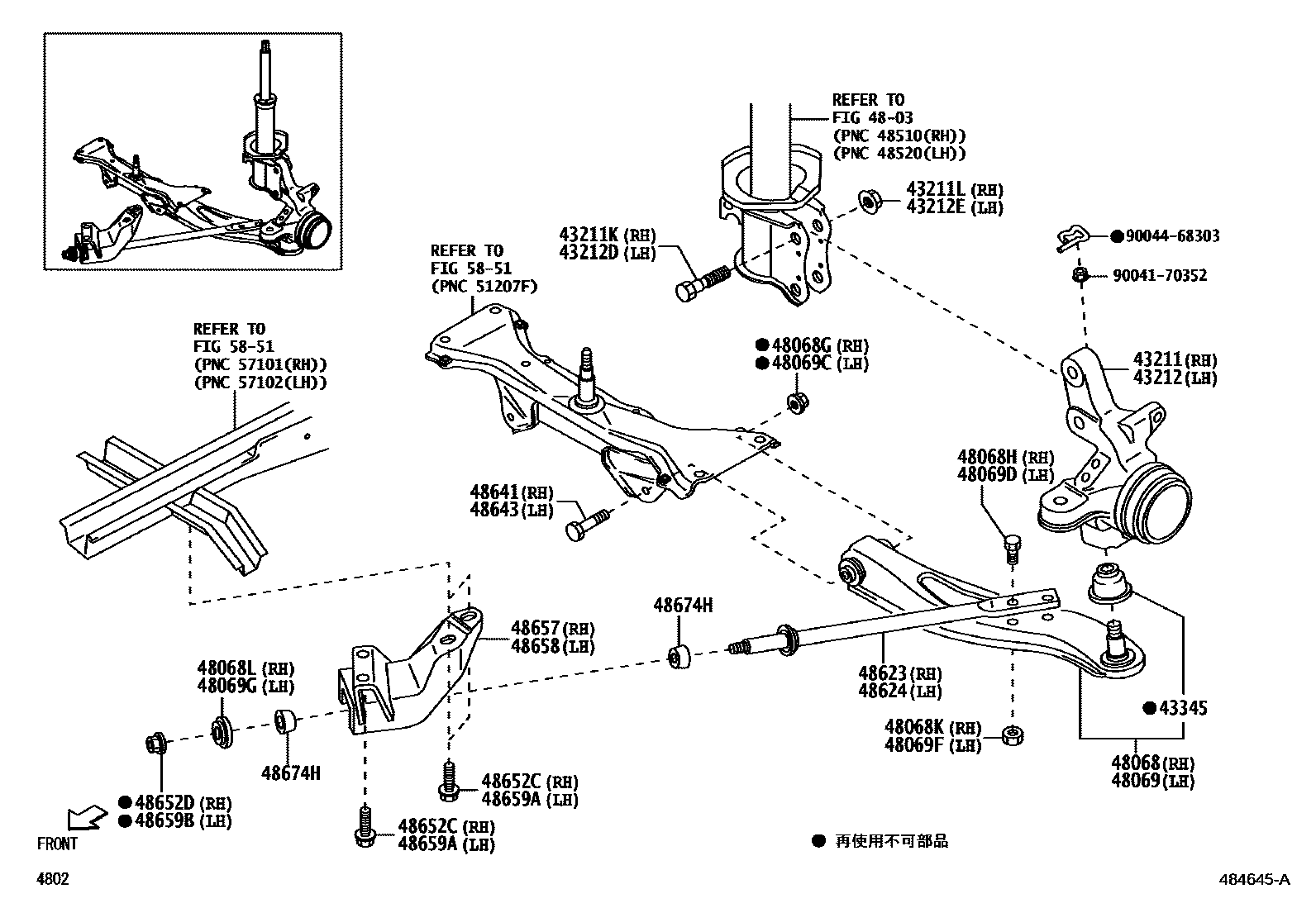

FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
43211KBOLT (FOR STEERING KNUCKLE RH)
43211LNUT (FOR STEERING KNUCKLE RH)
43212KNUCKLE, STEERING, LH
43212DBOLT (FOR STEERING KNUCKLE LH)
43212ENUT (FOR STEERING KNUCKLE LH)
43345COVER, LOWER BALL JOINT DUST
4803FRONT SPRING & SHOCK ABSORBER
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48068KNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
48068LWASHER(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48069FNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
48069GWASHER(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48623ARM, FRONT SUSPENSION, LOWER NO.2 RH
48624ARM, FRONT SUSPENSION, LOWER NO.2 LH
48641SHAFT, LOWER ARM, RH
48643SHAFT, LOWER ARM, LH
48652CBOLT(FOR FRONT LOWER ARM BRACKET RH)
48652DNUT(FOR FRONT LOWER ARM BRACKET RH)
48657STAY, LOWER ARM BRACKET, RH
48658STAY, LOWER ARM BRACKET, LH
48659ABOLT(FOR FRONT LOWER ARM BRACKET LH)
48659BNUT(FOR FRONT LOWER ARM BRACKET LH)
48674HCUSHION, STRUT BAR
5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER
9004170352
main90041-70352
9004468303
main90044-68303
32 parts on this diagram · 1 diagram in section
