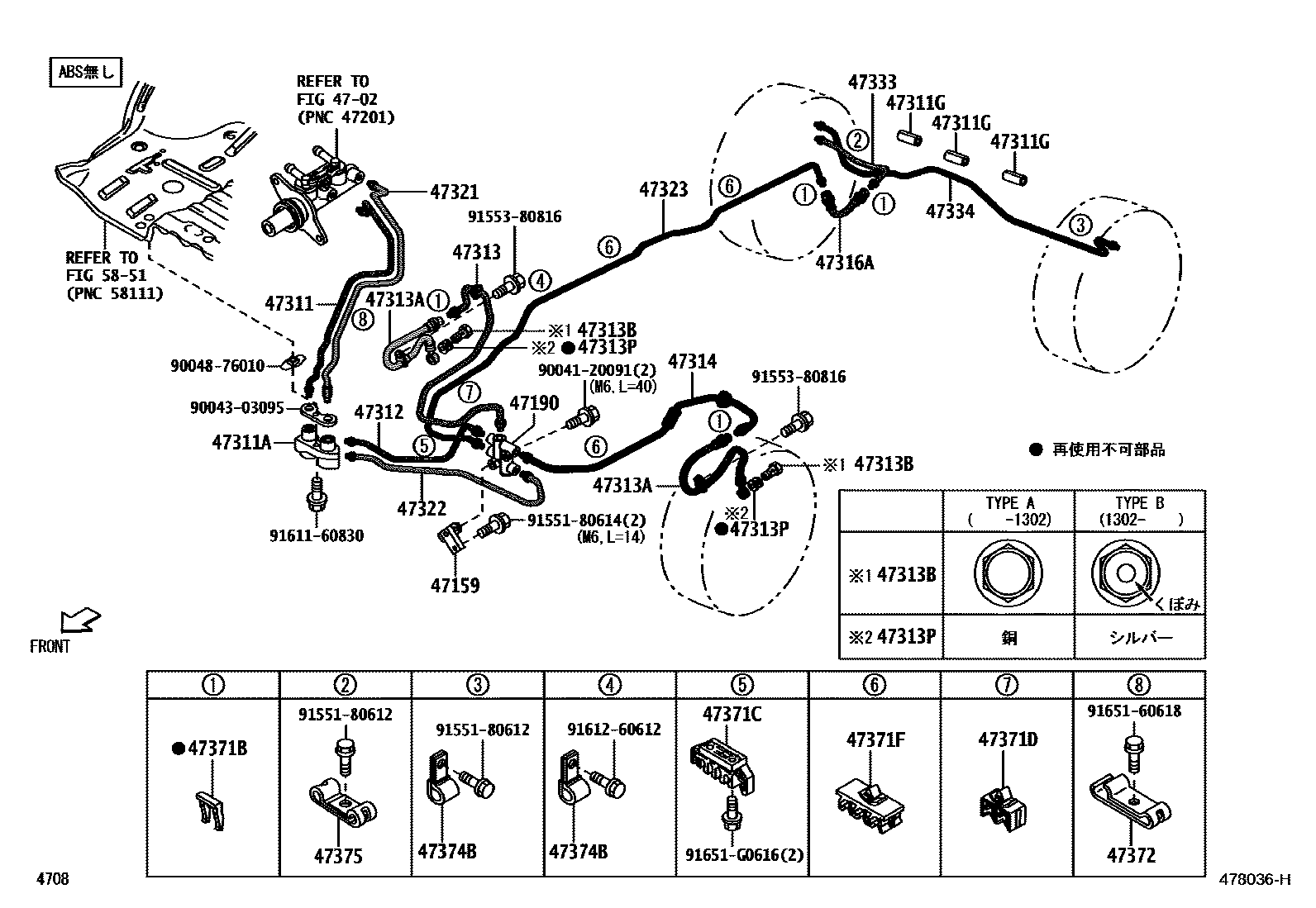

BRAKE TUBE & CLAMP

0001 1L/ABS 0002 1W/ABS 0003 1W/ABS 0004 1W/ABS

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47159BRACKET, PROPORTIONING VALVE

main47159-97502iS201,211201112

main47159-B5010iS201..MTM;S211..ATM;S211..MTM..SPL201308

47190VALVE ASSY, PROPORTIONING & BY-PASS

main47190-97507iS201,211201112

main47150-97503iS201..ATM;S211..MTM..EXT201112-201212

main47150-B5010iS201..MTM;S211..ATM;S211..MTM..SPL201308

47311TUBE, FRONT BRAKE, NO.1

main47311-B5020iS201,211201112-201212

main47311-B5050iS201,211201212

main47311-B5030iS201..ATM;S211..MTM..EXT201112-201212

47311AWAY(FOR FRONT BRAKE TUBE)

main90044-14026iS201,211201112

47311GHOSE, FLEXIBLE(FOR BRAKE TUBE)

main90044-46059×3iS201,211201112

47312TUBE, FRONT BRAKE, NO.2

main47312-97512iS201,211201112

main47312-B5030iS201..ATM;S211..MTM..EXT201112-201212

main47312-B5090iS201..MTM;S211..ATM;S211..MTM..SPL201308

47313TUBE, FRONT BRAKE, NO.3

main47313-B5030iS201,211201112

main47313-97505iS201..ATM;S211..MTM..EXT201112-201212

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90049-22178×2iS201,211201112

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90044-01079×2iS201,211201112-201302

main90401-10058×2iS201,211201302

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iS201,211201302-201407

main47389-97201×2iS201,211201112-201302

47314TUBE, FRONT BRAKE, NO.4

main47314-97506iS201,211201112

main47314-97503iS201..ATM;S211..MTM..EXT201112-201212

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90049-22197iS201,211201112

47321TUBE, REAR BRAKE, NO.1

main47321-B5020iS201,211201112-201212

main47321-B5050iS201,211201212

main47321-B5030iS201..ATM;S211..MTM..EXT201112-201212

47322TUBE, REAR BRAKE, NO.2

main47322-97511iS201,211201112

main47322-B5040iS201..ATM;S211..MTM..EXT201112-201212

main47322-B5070iS201..MTM;S211..ATM;S211..MTM..SPL201308

47323TUBE, REAR BRAKE, NO.3

main47323-B5020iS201,211201112

main47323-97504iS201..MTM;S211..ATM;S211..MTM..SPL201112-201308

main47323-B5050iS201..MTM;S211..ATM;S211..MTM..SPL201308

47333TUBE, REAR BRAKE, NO.12

main47333-97503iS201,211201112

47334TUBE, REAR BRAKE, NO.13

main47334-B5010iS201,211201112

47371BCLAMP, BRAKE TUBE, NO.6

main90044-65441×2iS201,211201112

47371CCLAMP, BRAKE TUBE, NO.7

main90044-65520iS201,211201112

47371DCLAMP, BRAKE TUBE, NO.8

main90044-61718iS201,211201112

47371FCLAMP, BRAKE TUBE, NO.10

main90044-64742×3iS201,211; S201..MTM;S211..ATM;S211..MTM..SPL201112

47372CLAMP, BRAKE TUBE, NO.2

main90044-61287iS201,211201112

47374BCLAMP, BRAKE TUBE, NO.4

main96221-30705iS201,211201112

47375CLAMP, BRAKE TUBE, NO.5

main90044-61363iS201,211201112

5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER

→ Go to FIG 58-51

9004120091

main90041-20091

9004303095

main90043-03095

9004876010

main90048-76010

9155180612

main91551-80612

9155180614

main91551-80614

9155380816

main91553-80816

9161160830

main91611-60830

9161260612

main91612-60612

9165160618

main91651-60618

91651G0616

main91651-G0616

36 parts on this diagram · 4 diagrams in section
