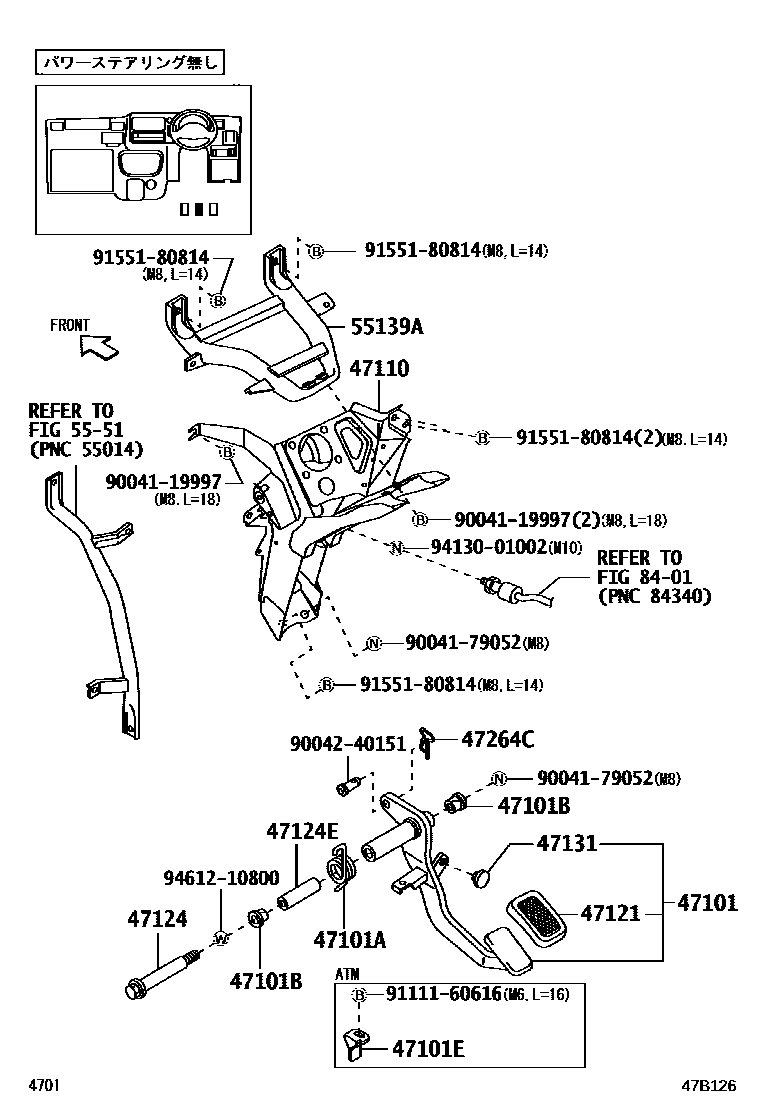

BRAKE PEDAL & BRACKET

0001 1L/����������� 0002 1W/�����������

47101PEDAL SUB-ASSY, BRAKE

main47101-97504iS201,211201112

47101ASPRING(FOR BRAKE PEDAL RETURN)

main31394-97501iS201,211201112-201407

47101BBUSH(FOR BRAKE PEDAL)

main90043-86121×2iS201,211201112

47101ESTOPPER, SHIFT LOCK

main31322-97503iS201,211..ATM; S211..ATM..EXT; S211..ATM..SPL201112

47110SUPPORT ASSY, BRAKE PEDAL

main31305-B5021supersedes 31305-B5011iS201,211..EXT; S201,211..SPL201112-201407

47121PAD, BRAKE PEDAL

main31321-87503iS201,211201112

47124SHAFT, BRAKE PEDAL

main90041-19983iS201,211201112

47124ECOLLAR, BRAKE PEDAL SHAFT, NO.2

main90045-60265iS201,211201112

47131CUSHION(FOR STOP LAMP SWITCH)

main90045-40158iS201,211201112

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90044-68207iS201,211201112

55139ASTAY, STEERING COLUMN, UPPER

main55139-B5021supersedes 55139-B5010iS201,211..EXT; S201,211..SPL201112

5551INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-51

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004119997

main90041-19997

9004179052

main90041-79052

9004240151

main90042-40151

9111160616

main91111-60616

9155180814

main91551-80814

9413001002

main94130-01002

9461210800

main94612-10800

20 parts on this diagram · 2 diagrams in section
