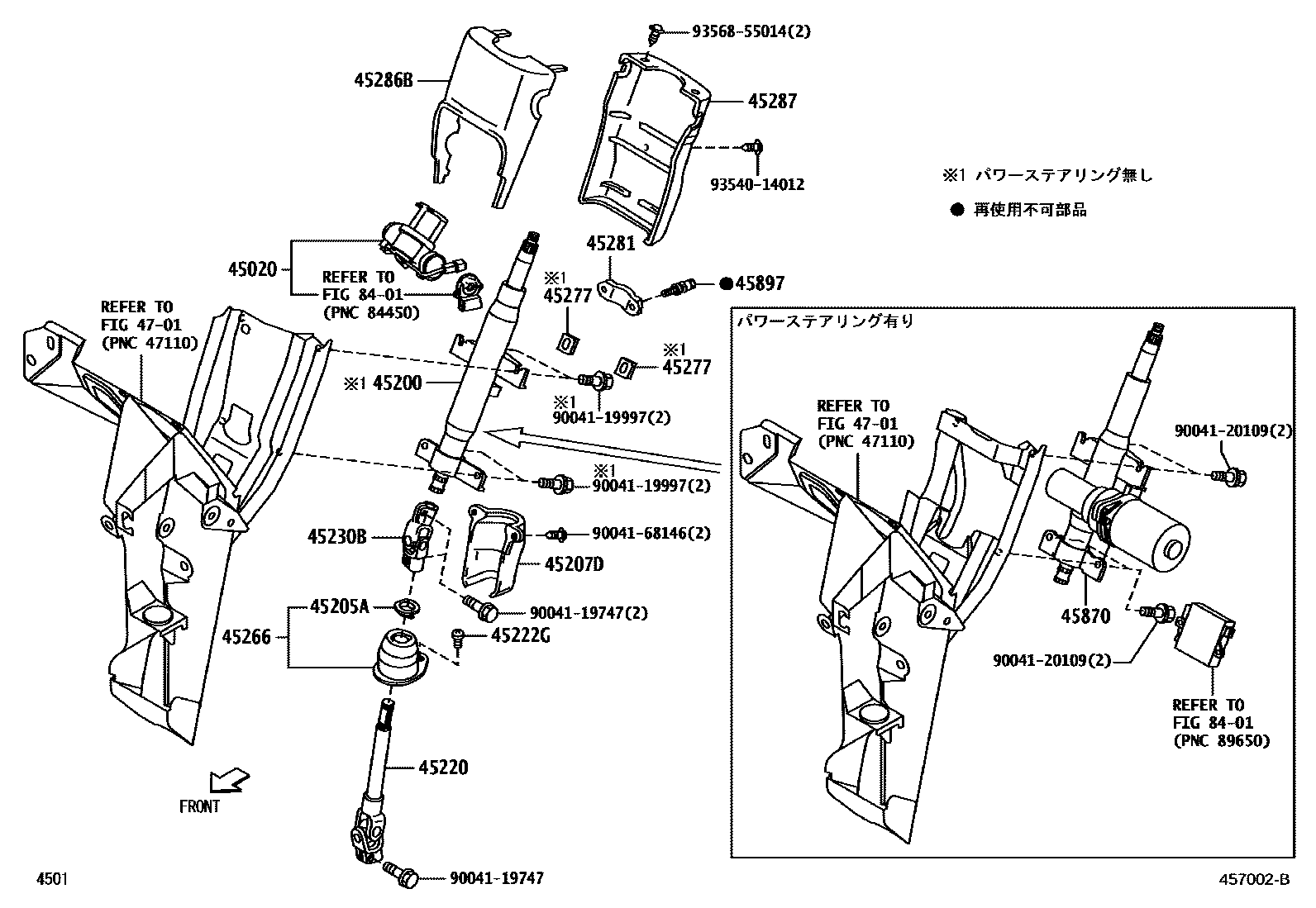

STEERING COLUMN & SHAFT

45020BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH

main45020-B5030iS201,211..MTM201112

main45020-B5040iS201,211..ATM201112

45200POST ASSY, STEERING

main45200-B5011iS201,211..SPL201112-201407

45205ABUSH(FOR STEERING COLUMN TUBE)

main90043-85161iS201,211201112

45207DCOVER SUB-ASSY, MAIN SHAFT JOINT

main45233-97501iS201,211201112

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-97501iS201,211201112

45222GCLIP, DUST COVER

main90044-68261iS201,211201112

45230BJOINT ASSY, STEERING SHAFT UNIVERSAL

main45230-97502iS201,211201112

45266COVER, STEERING INTERMEDIATE SHAFT DUST

main45028-97501iS201,211201112

45277PLATE, STEERING COLUMN UPPER ATTACHMENT

mainGAITONASHI×2supersedes 45277-97501iS201,211..SPL201112-201407

45281HOUSING, STEERING COLUMN

main45281-B5020iS201,211201112

45286BCOVER, STEERING COLUMN, UPR

main45286-B5020-B0iS201,211201112

GRAY,TRIM1#

45287COVER, STEERING COLUMN, LWR

main45287-B5020-B0iS201,211201112

GRAY,TRIM1#

45870TUBE ASSY, STEERING COLUMN

main45870-B5011iS201,211..EXT; S201,211..SPL201112-201210

main45870-B5012iS201,211..EXT; S201,211..SPL201211

45897BOLT, STEERING LOCK SET

main45897-B5010×2iS201,211201112

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004119747

main90041-19747

9004119997

main90041-19997

9004120109

main90041-20109

9004168146

main90041-68146

9354014012

main93540-14012

9356855014

main93568-55014

22 parts on this diagram · 1 diagram in section
