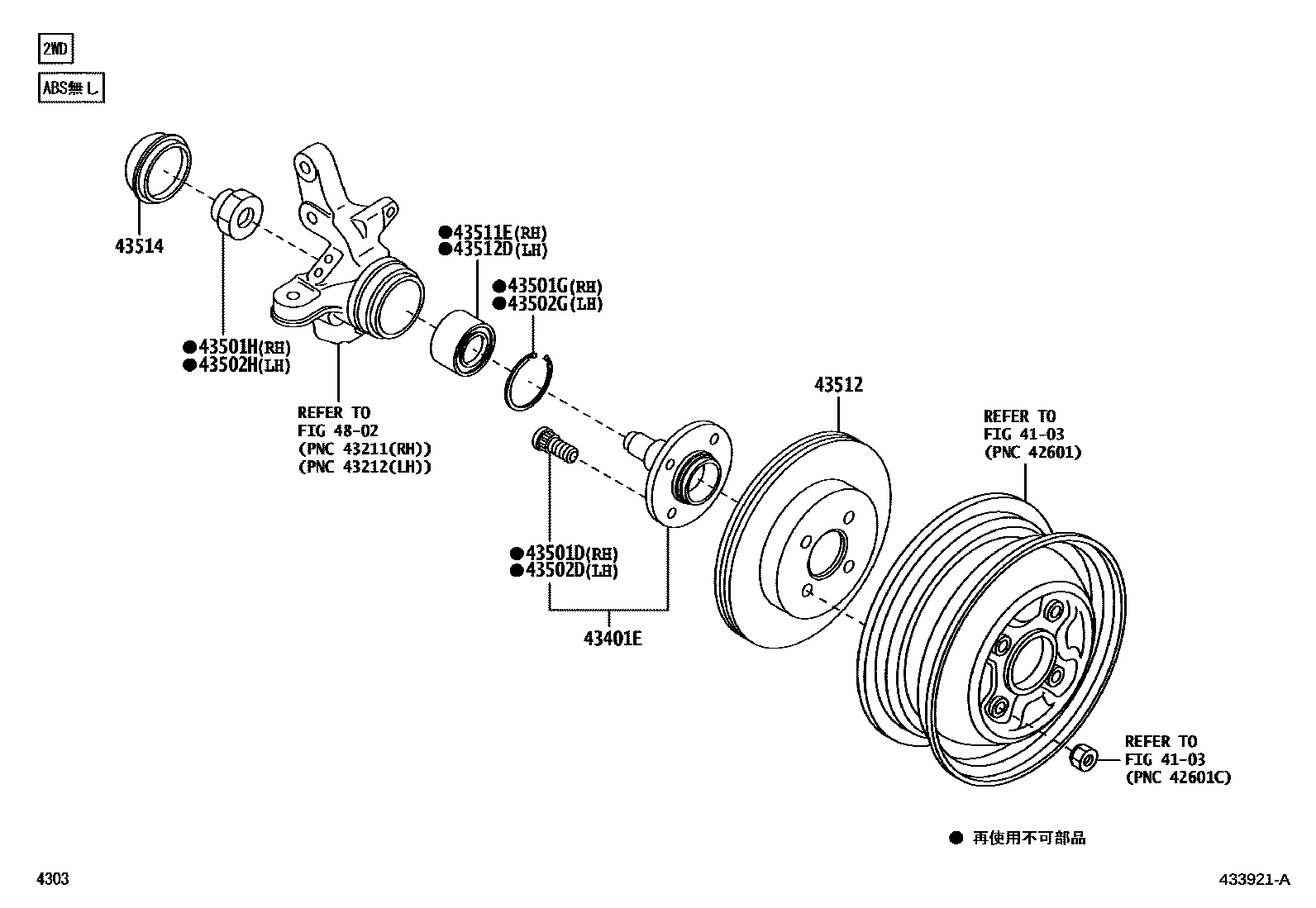

FRONT AXLE HUB

0001 12WD 0002 12WD 0003 14WD

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

43401ESPINDLE SUB-ASSY, STEERING

main43401-97501×2iS201201112

main43401-B5010×2iS201..MTM201112

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90049-12056×4iS201,211201112-201407

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90045-21163iS201,211201112

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90041-78071iS201201112-201407

main90041-79274iS201..MTM; S211201112-201407

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90049-12056×4iS201,211201112-201407

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90045-21163iS201,211201112

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90041-78071iS201201112-201407

main90041-79274iS201..MTM; S211201112-201407

43511EBEARING (FOR FRONT AXLE HUB RH)

main90043-63303iS201,211201112-201407

43512DISC, FRONT

main43512-97503×2iS201,211201112

43512DBEARING (FOR FRONT AXLE HUB LH)

main90043-63303iS201,211201112-201407

43514CAP, FRONT HUB GREASE

main43514-97501×2iS201201112

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

13 parts on this diagram · 3 diagrams in section
