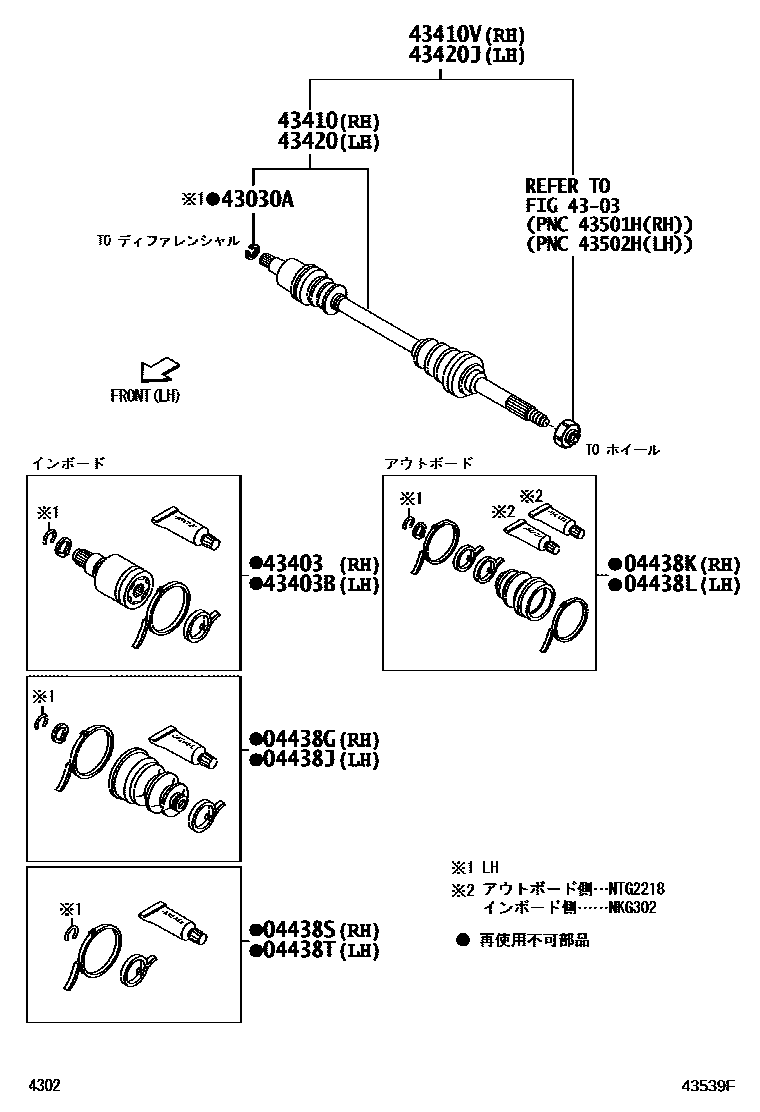

FRONT DRIVE SHAFT

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-B5010iS211201112-201407

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04437-B2010iS211201112-201407

04438KBOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, RH

main04425-B5050iS211201112-201407

04438LBOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, LH

main04425-B5040iS211201112-201407

04438SCLAMP KIT, FRONT DRIVE SHAFT, RH

main04435-B5010iS211201112

04438TCLAMP KIT, FRONT DRIVE SHAFT, LH

main04435-B2010iS211201112-201407

4303FRONT AXLE HUB

→ Go to FIG 43-03

43030ARING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT)

main90045-20298iS211201112

43403JOINT SET, FRONT AXLE INBOARD, RH

main43408-B9310iS211201112

43403BJOINT SET, FRONT AXLE INBOARD, LH

main43408-B9320iS211201112

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-B5031iS211201112-201407

main43410-B5021iS211..ATM;S211..MTM..SPL201112-201407

43410VSHAFT SET, FRONT DRIVE, RH

main43410-B9750iS211201112-201407

main43410-B9740iS211..MTM..EXT201112-201212

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-B5011iS211201112-201407

main43420-B5021iS211..MTM..EXT201112-201212

43420JSHAFT SET, FRONT DRIVE, LH

main43420-B9650iS211201112-201407

main43420-B9660iS211..MTM..EXT201112-201212

14 parts on this diagram · 1 diagram in section
