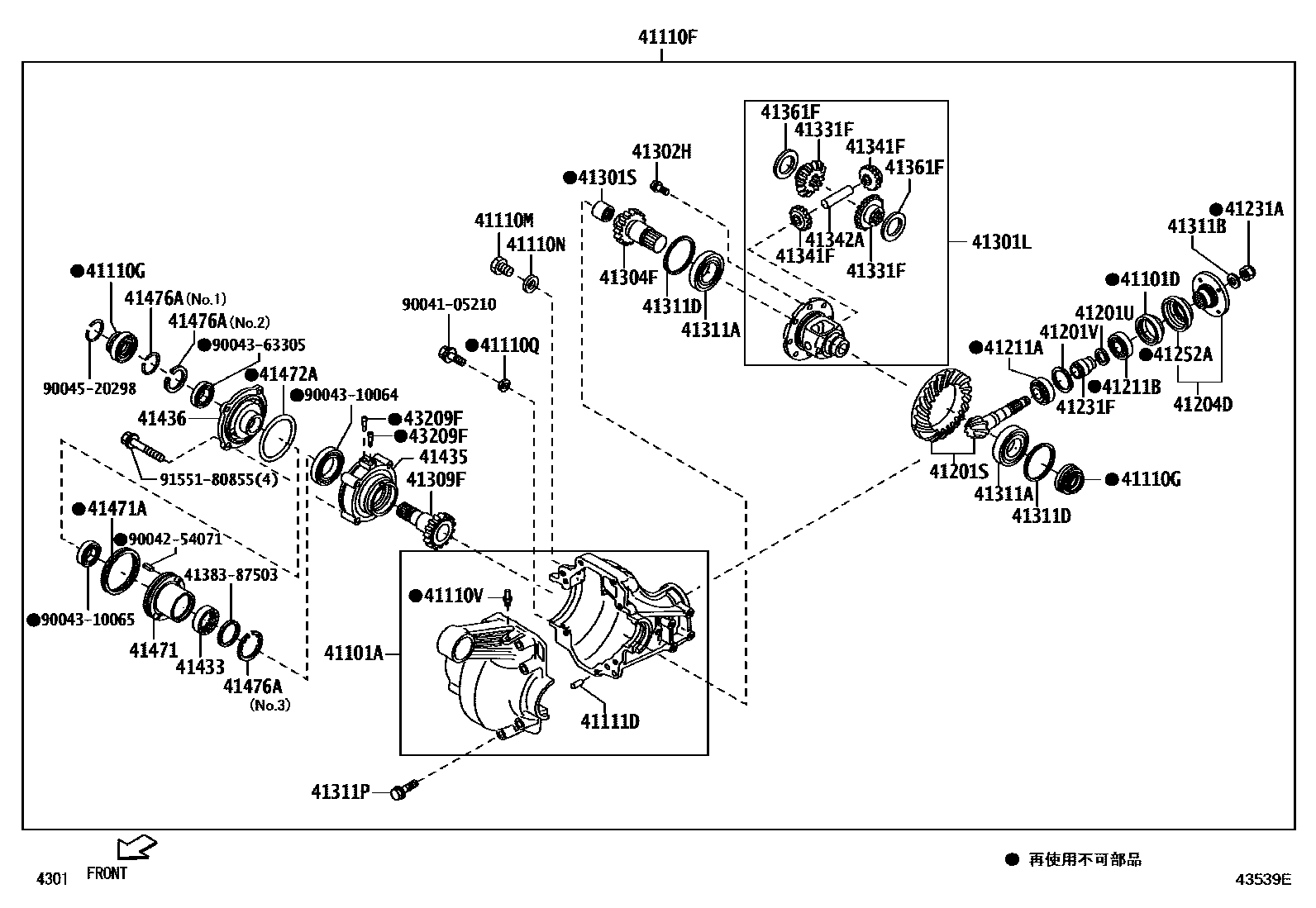

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1

41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT

main41101-B5030iS211201112

41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)

main90043-11399iS211201112

41110FCARRIER ASSY, DIFFERENTIAL, FRONT

main41110-B5081iS211201112-201407

41110GSEAL, OIL (FOR DIFFERENTIAL SIDE)

main90043-11400×2iS211201112

41110MPLUG, FRONT DIFFERENTIAL FILLER

main90043-41035iS211201112

41110NGASKET, FRONT DIFFERENTIAL FILLER PLUG

main90044-30178iS211201112

41110QGASKET, FRONT DIFFERENTIAL DRAIN PLUG

main90044-30026iS211201112

41110VUNION (FOR FRONT DIFFERENTIAL)

main90044-04146iS211201112

41111DPIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER)

main90042-50202iS211201112-201407

41201SFINAL GEAR KIT, DIFFERENTIAL, FRONT

main41201-B5060iS211201112

41201USHIM (FOR FRONT DIFF DRIVE PINION SPACER FRONT ADJUST)

main90045-64533iS211201112

main90045-64534iS211201112

main90045-64535iS211201112

main90045-64536iS211201112

main90045-64537iS211201112

main90045-64538iS211201112

main90045-64539iS211201112

main90045-64540iS211201112

main90045-64541iS211201112

main90045-64542iS211201112

main90045-64543iS211201112

main90045-64544iS211201112

main90045-64545iS211201112

main90045-64546iS211201112

main90045-64547iS211201112

main90045-64548iS211201112

main90045-64549iS211201112

41201VSHIM (FOR FRONT DIFF DRIVE PINION SPACER REAR ADJUST)

main90045-64318iS211201112

main90045-64319iS211201112

main90045-64320iS211201112

main90045-64321iS211201112

41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT

main41204-87514iS211201112

41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)

main90043-66036iS211201112

41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)

main90043-66012iS211201112

41231ANUT, DRIVE PINION LOCK

main90041-79243iS211201112-201407

41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING

main41231-B5010iS211201112

41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)

main41252-87504iS211201112

41301LCASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1

main41301-B5030iS211201112

41301SBEARING, NEEDLE ROLLER

main90043-64141iS211201112

41302HBOLT(FOR FRONT DIFFERENTIAL CASE)

main90041-05235×8iS211201112-201407

41304FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH

main41333-B5010iS211201112

41309FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH

main41337-B5010iS211201112

41311ABEARING (FOR FRONT DIFFERENTIAL CASE)

main90043-63228×2iS211201112

41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)

main90042-01730iS211201112-201407

41311DSHIM (FOR FRONT DIFFERENTIAL CASE FRONT)

main90045-64598iS211201112

main90045-64599iS211201112

main90045-64600iS211201112

main90045-64601iS211201112

main90045-64602iS211201112

main90045-64603iS211201112

main90045-64604iS211201112

main90045-64605iS211201112

main90045-64606iS211201112

main90045-64607iS211201112

main90045-64608iS211201112

41311PBOLT (FOR FRONT DIFFERENTIAL CASE)

main91551-80845×7iS211201112-201407

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-B1010×2iS211201112

41341FPINION, FRONT DIFFERENTIAL

main41341-87101×2iS211201112

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main41342-B5010iS211201112

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-87501×2iS211201112

main41361-87506×2iS211201112

main41361-87507×2iS211201112

41433SLEEVE, DIFFERENTIAL CLUTCH

main41433-B5010iS211201112

41435CASE, DIFFERENTIAL CLUTCH

main41435-B5010iS211201112

41436COVER, FRONT DIFFERENTIAL CLUTCH CASE

main41436-B5010iS211201112

41471PISTON, DIFFERENTIAL LOCK CLUTCH, NO.1

main41471-B5010iS211201112

41471ARING, O (FOR DIFFERENTIAL LOCK CLUTCH PISTON NO.1)

main90043-01242iS211201112

41472ARING, O (FOR DIFFERENTIAL LOCK CLUTCH PISTON NO.2)

main90043-01244iS211201112

41476ARING, HOLE SNAP (FOR DIFFERENTIAL LOCK CLUTCH FLANGE)

main90045-21154iS211201112

main96150-02500iS211201112

main96151-04700iS211201112

43209FTUBE, BREATHER

main90044-40004×2iS211201112-201407

4138387503WASHER, CLUTCH MEMBER THRUST

main41383-87503

9004105210

main90041-05210

9004254071

main90042-54071

9004310064

main90043-10064

9004310065

main90043-10065

9004363305

main90043-63305

9004520298

main90045-20298

9155180855

main91551-80855

47 parts on this diagram · 2 diagrams in section
