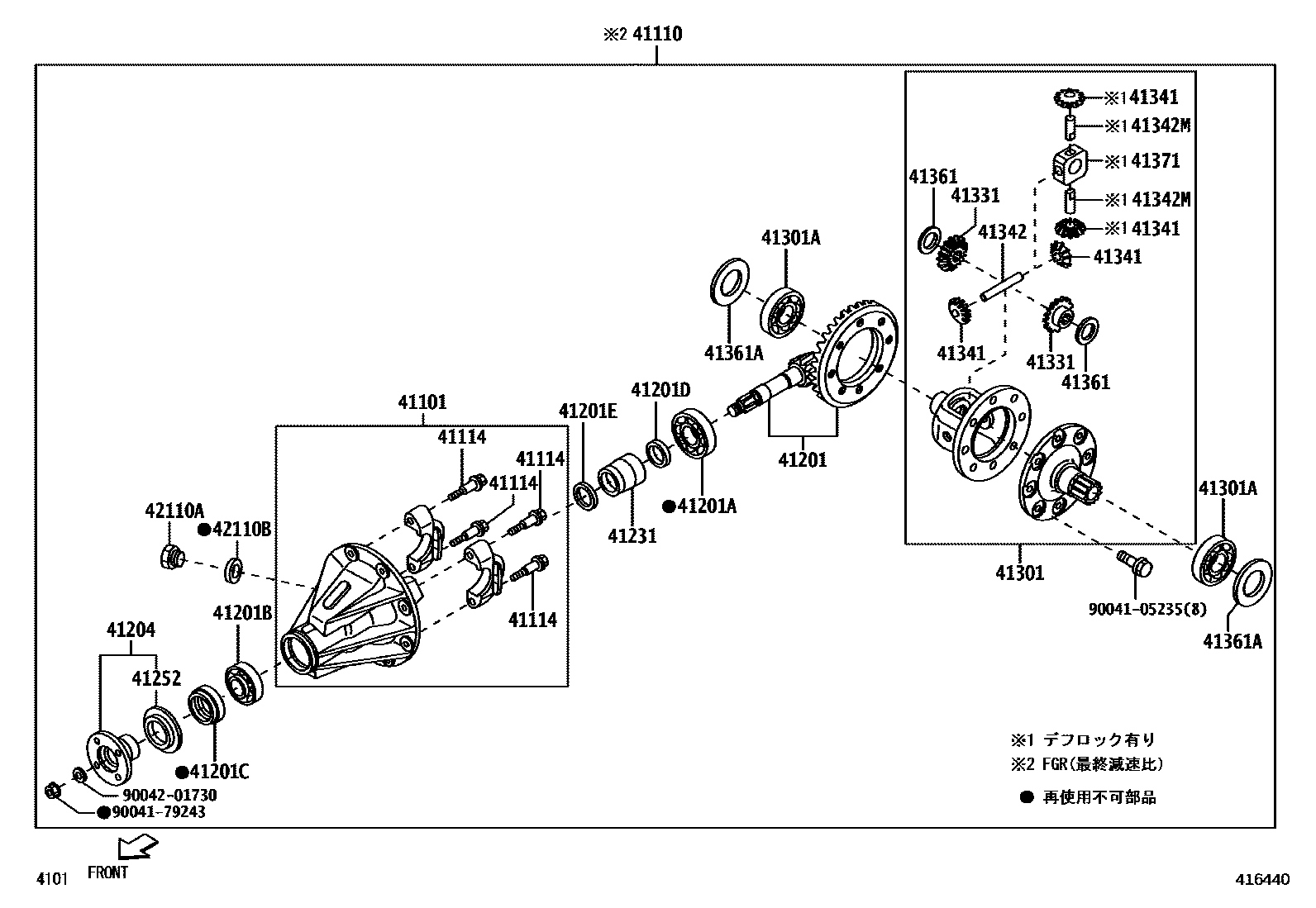

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-B5012iS201,211201112-201407

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-B5032iS201..MTM;S211..MTM..SPL; S211..MTM..EXT201112-201203

main41110-B5033iS201..MTM;S211..MTM..SPL; S211..MTM..EXT201204-201407

main41110-B5052iS201..MTM;S211..ATM;S211..MTM..SPL201112-201203

main41110-B5053iS201..MTM;S211..ATM;S211..MTM..SPL201204-201407

main41110-B5062iS201..ATM201112-201203

main41110-B5063iS201..ATM201204-201407

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main41114-B5010×4iS201,211201112

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-B5011iS211;S201..MTM201112

main41201-B5021iS201..ATM201112

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90043-66013iS201,211201112-201203

main90043-66080iS201,211201204

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90043-66012iS201,211201112

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90043-11363iS201,211201112

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90045-64621iS201,211201112

main90045-64622iS201,211201112

main90045-64623iS201,211201112

main90045-64624iS201,211201112

main90045-64625iS201,211201112

main90045-64626iS201,211201112

main90045-64627iS201,211201112

main90045-64628iS201,211201112

main90045-64629iS201,211201112

main90045-64630iS201,211201112

main90045-64631iS201,211201112

41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)

main90045-64533iS201,211201112

main90045-64534iS201,211201112

main90045-64535iS201,211201112

main90045-64536iS201,211201112

main90045-64537iS201,211201112

main90045-64538iS201,211201112

main90045-64539iS201,211201112

main90045-64540iS201,211201112

main90045-64541iS201,211201112

main90045-64542iS201,211201112

main90045-64543iS201,211201112

main90045-64544iS201,211201112

main90045-64545iS201,211201112

main90045-64546iS201,211201112

main90045-64547iS201,211201112

main90045-64548iS201,211201112

main90045-64549iS201,211201112

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-87514iS201,211201112

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-B5010iS201,211201112

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-87504iS201,211201112

41301CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-B5010iS201;S211..ATM;S211..MTM..SPL201112

main41301-B5020iS201..MTM;S211..MTM..SPL; S211..MTM..EXT201112

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90043-63228iS201..MTM;S211..MTM..SPL; S201;S211..ATM;S211..MTM..SPL; S211..MTM..EXT201112

main90043-63229iS201..MTM;S211..MTM..SPL; S211..MTM..EXT201112

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-97202×2iS201,211201112

41341PINION, REAR DIFFERENTIAL

main41341-87510×2iS201..MTM;S211..MTM..SPL; S201;S211..ATM;S211..MTM..SPL; S211..MTM..EXT201112

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-87509iS201,211201112

41342MSHAFT, REAR DIFFERENTIAL PINION, NO.2

main41342-87403×2iS201..MTM;S211..MTM..SPL; S211..MTM..EXT201112

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-87501×2iS201,211201112

main41361-87506×2iS201,211201112

main41361-87507×2iS201,211201112

41361ASHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST)

main90045-64500iS201,211201112

main90045-64501iS201,211201112

main90045-64502iS201,211201112

main90045-64503iS201,211201112

41371SPIDER, REAR DIFFERENTIAL

main41371-87401iS201..MTM;S211..MTM..SPL; S211..MTM..EXT201112

42110HOUSING ASSY, REAR AXLE

main42110-B5010iS201;S211..ATM;S211..MTM..SPL201112-201407

main42110-B5020iS201..ATM201112-201212

main42110-B5060iS201..MTM;S211..MTM..SPL; S211..MTM..EXT201112-201407

main42110-B5070supersedes 42110-B5060iS201..MTM;S211..MTM..SPL; S211..MTM..EXT201112-201212

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90043-41046iS201,211201112

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main90044-30311iS201,211201112

9004105235

main90041-05235

9004179243

main90041-79243

9004201730

main90042-01730

27 parts on this diagram · 2 diagrams in section
