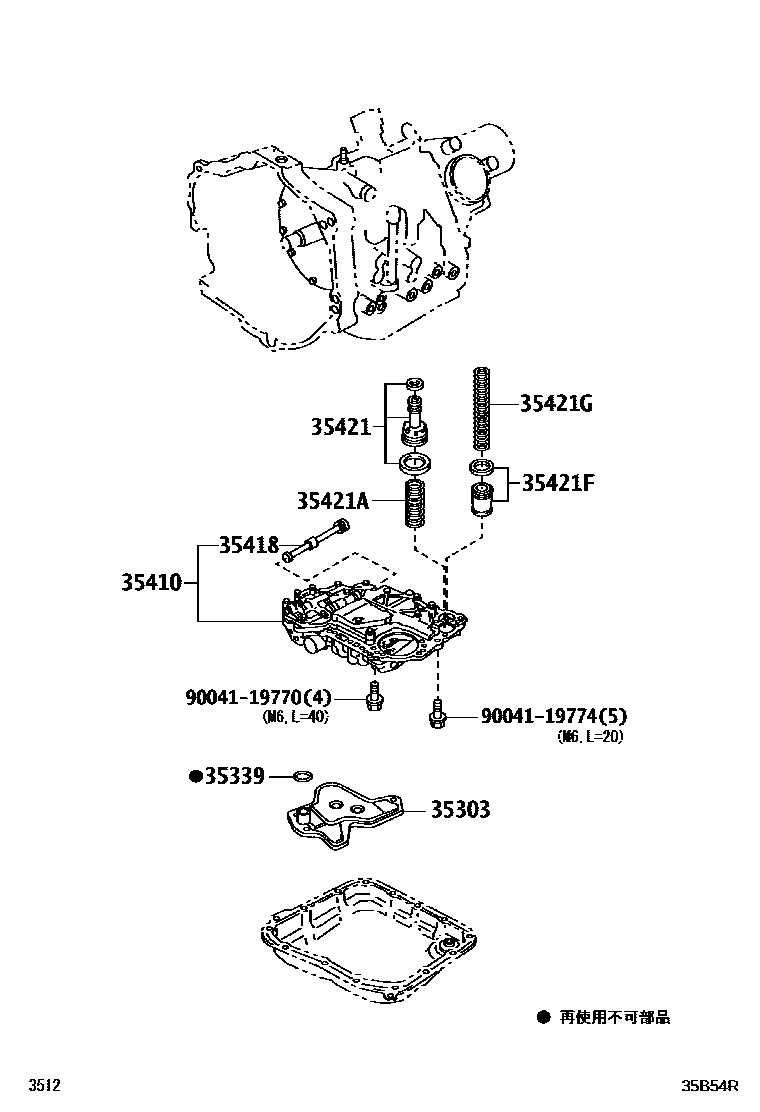

VALVE BODY & OIL STRAINER (ATM)

35303STRAINER SUB-ASSY, OIL

main35303-97502iS201,211..ATM201112

35339GASKET, OIL STRAINER

main96723-24020iS201,211..ATM201112

35410BODY ASSY, TRANSMISSION VALVE

main35410-B5020iS201..ATM201112

main35410-B5030iS211..ATM201112

35418VALVE, MANUAL

main35418-97204iS201,211..ATM201112

35421PISTON, ACCUMULATOR, NO.1

main35407-B2010iS201,211..ATM201112

35421ASPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1)

main90045-01715iS201,211..ATM201112

35421FPISTON, ACCUMULATOR, NO.2

main35405-B2010iS201,211..ATM201112

35421GSPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2)

main90045-01734iS201,211..ATM201112

9004119770

main90041-19770

9004119774

main90041-19774

10 parts on this diagram · 1 diagram in section
