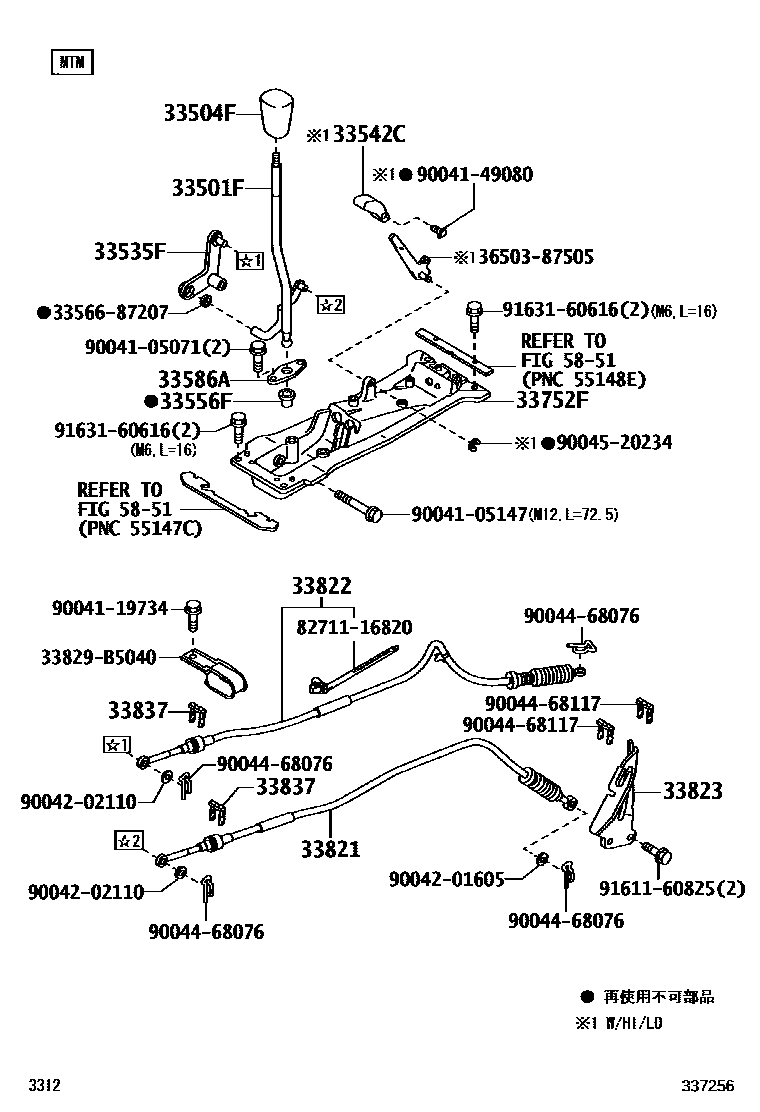

SHIFT LEVER & RETAINER

0001 1MTM 0002 1ATM

33501FSHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT)

main33501-97502iS201,211..MTM201112-201407

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-B2050-B1iS201,211..MTM201112

DK.GRAY,TRIM1#

33535FLEVER, CONTROL SELECT (FOR FLOOR SHIFT)

main33535-97502iS201,211..MTM201112

33542CKNOB, SHIFT LEVER

main33542-87503-B0iS211..MTM..EXT; S211..MTM..SPL201112

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-87202iS201,211..MTM201112

33586ASTOPPER, CONTROL LEVER (FOR FLOOR SHIFT)

main33586-97502iS201,211..MTM201112

33752FSUPPORT, CONTROL LINK (FOR FLOOR SHIFT)

main33752-B5010iS201,211..ATM201112

main33752-B5020iS201..MTM;S211..MTM..SPL201112

main33752-B5030iS211..MTM..EXT; S211..MTM..SPL201112

33821CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)

main33821-B5040iS201,211..MTM201112

33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)

main33822-B5030iS201,211..MTM201112

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-B5050iS201,211..MTM201112

33837CLIP, TRANSMISSION CONTROL CABLE ADJUST

main33837-B5010iS201,211..ATM; S201,211..MTM201301-201407

main90044-68075×2iS201,211..ATM; S201,211..MTM201112-201212

5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER

→ Go to FIG 58-51

3356687207PIN, SHIFT LEVER STOP

main33566-87207

33829B5040SUPPORT, TRANSMISSION CONTROL CABLE

main33829-B5040

3650387505

main36503-87505

8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16820

9004105071

main90041-05071

9004105147

main90041-05147

9004119734

main90041-19734

9004149080

main90041-49080

9004201605

main90042-01605

9004202110

main90042-02110

9004468076

main90044-68076

9004468117

main90044-68117

9004520234

main90045-20234

9161160825

main91611-60825

9163160616

main91631-60616

27 parts on this diagram · 2 diagrams in section
