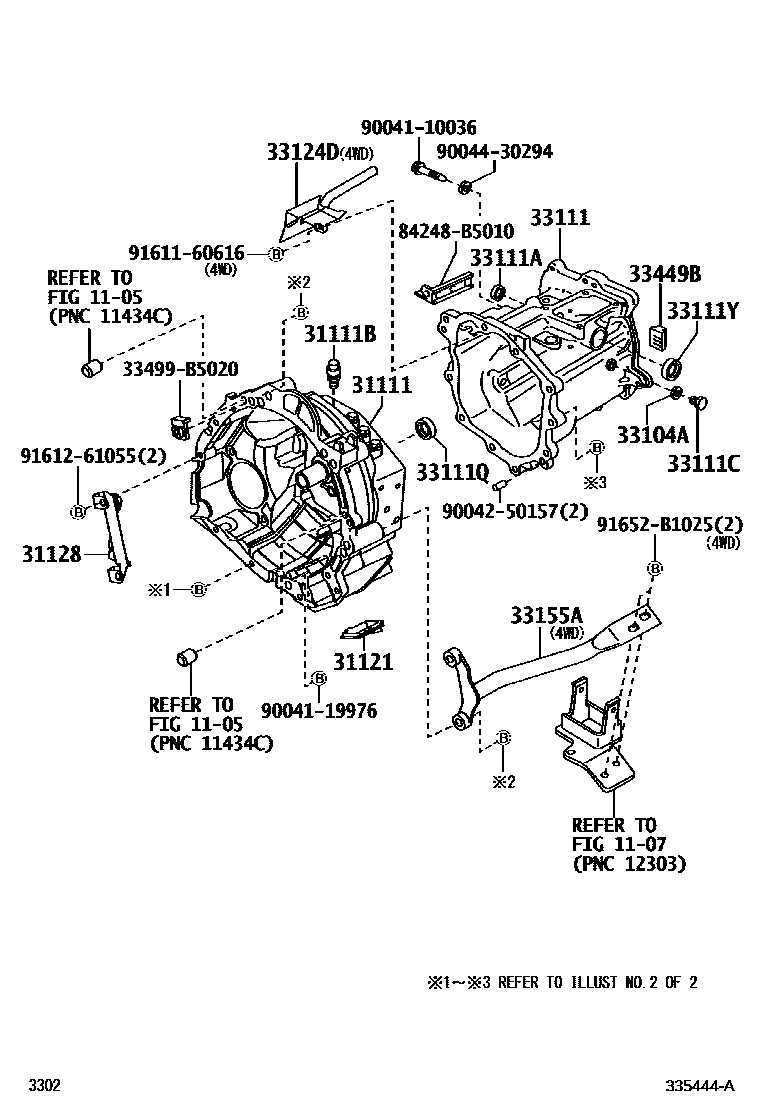

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

1107MOUNTING

→ Go to FIG 11-07

31111HOUSING, CLUTCH

main31111-B5010iS201,211..MTM201112-201402

main31111-B5020iS201,211..MTM201402-201407

31111BPLUG(FOR CLUTCH HOUSING)

main90049-15026iS201,211..MTM201112

31121COVER, CLUTCH HOUSING, NO.1

main31121-87504iS201,211..MTM201112-201407

31128COVER, CLUTCH HOUSING UNDER

main31128-B5020iS201,211..MTM201112

33104AGASKET, DRAIN PLUG(MTM)

main90044-30186iS201,211..MTM201112-201407

33111CASE, MANUAL TRANSMISSION

main33111-97501iS201,211..MTM201112-201402

main33111-B5010iS201,211..MTM201402-201407

33111APLUG, MANUAL TRANSMISSION CASE

main90043-31025iS201,211..MTM201112

33111CPLUG(FOR TRANSMISSION CASE)

main90043-41085iS201,211..MTM201112-201407

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90043-10051iS201,211..MTM201112

33111YSEAL, OIL(FOR TRANSMISSION CASE)

main90043-11308iS201,211..MTM201112

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-B5020iS211..MTM201112

33155ASTIFFENER, POWER TRAIN

main36119-B5020supersedes 36119-B5030iS211..MTM..EXT; S211..MTM..SPL201112

33449BMAGNET, TRANSMISSION

main33449-87501iS201,211..MTM201112

33499B5020

main33499-B5020

84248B5010CLAMP, CENTER CLUSTER MODULE SWITCH HARNESS

main84248-B5010

9004110036

main90041-10036

9004119976

main90041-19976

9004250157

main90042-50157

9004430294

main90044-30294

9161160616

main91611-60616

9161261055

main91612-61055

91652B1025

main91652-B1025

24 parts on this diagram · 2 diagrams in section
