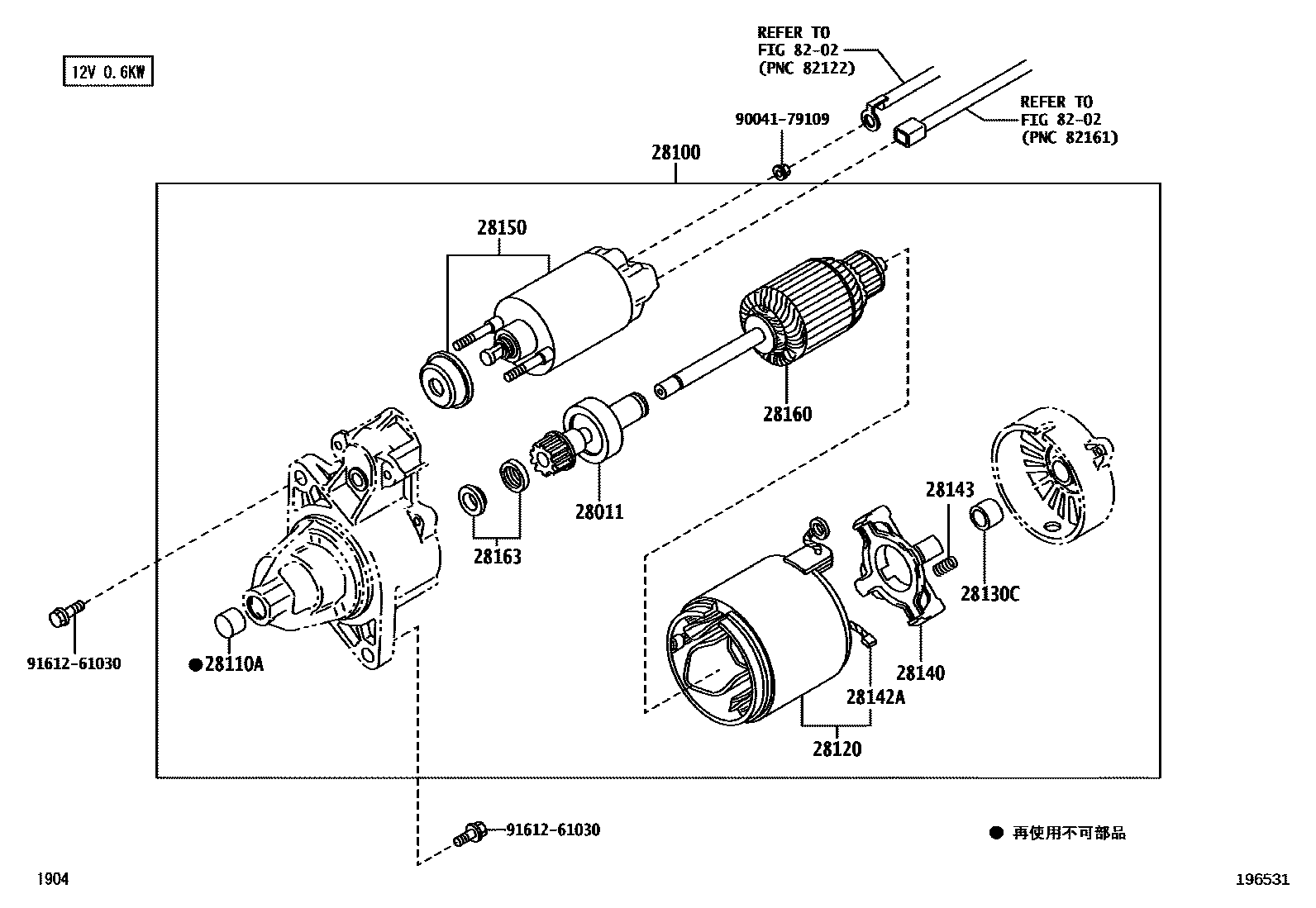

STARTER

0001 112V 0.6KW 0002 112V 0.8KW 0003 112V 1.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-97502iKFVE..S201,211..MTM201112-201407

main28011-87213supersedes 28011-87208iKFVE..S201,211..ATM201112-201407

28100STARTER ASSY

main28100-87544supersedes 28100-87547iKFVE..S201,211..ATM201112

main28100-B2160supersedes 28100-B2150iKFVE..S201,211..MTM201112

28110ABEARING(FOR STARTER HOUSING)

main28271-87501iKFVE..S201,211..MTM201112

main28271-87502iKFVE..S201,211..ATM201112

main28277-87201iKFVE..S201,211201112

28120YOKE ASSY, STARTER

main28120-87507iKFVE..S201,211201112

main28120-97201iKFVE..S201,211..ATM201112

28130CBEARING, STARTER FLANGE

main28271-87502iKFVE..S201,211201112

main28277-87201iKFVE..S201,211..MTM201112

main90099-10183iKFVE..S201,211..ATM201112

28140HOLDER ASSY, STARTER BRUSH

main28149-87501iKFVE..S201,211201112

main28140-87203iKFVE..S201,211..ATM201112

28142ASTARTER KIT

main28142-87504×4iKFVE..S201,211201112-201407

main28142-87204×2iKFVE..S201,211..ATM201112-201407

28143SPRING, STARTER BRUSH

main28143-10020×4iKFVE..S201,211201112

main28143-87202×4iKFVE..S201,211..ATM201112

28150SWITCH ASSY, MAGNET STARTER

main28150-87536iKFVE..S201,211201112

28160ARMATURE ASSY, STARTER

main28160-97201iKFVE..S201,211..MTM201112

main28160-87208supersedes 28160-87503iKFVE..S201,211..ATM201112

28163NUT OR COLLAR, PINION STOP, STARTER

main28142-87505iKFVE..S201,211201112

main28163-87202iKFVE..S201,211..ATM201112

8202WIRING & CLAMP

→ Go to FIG 82-02

9004179109

main90041-79109

9161261030

main91612-61030

14 parts on this diagram · 3 diagrams in section
