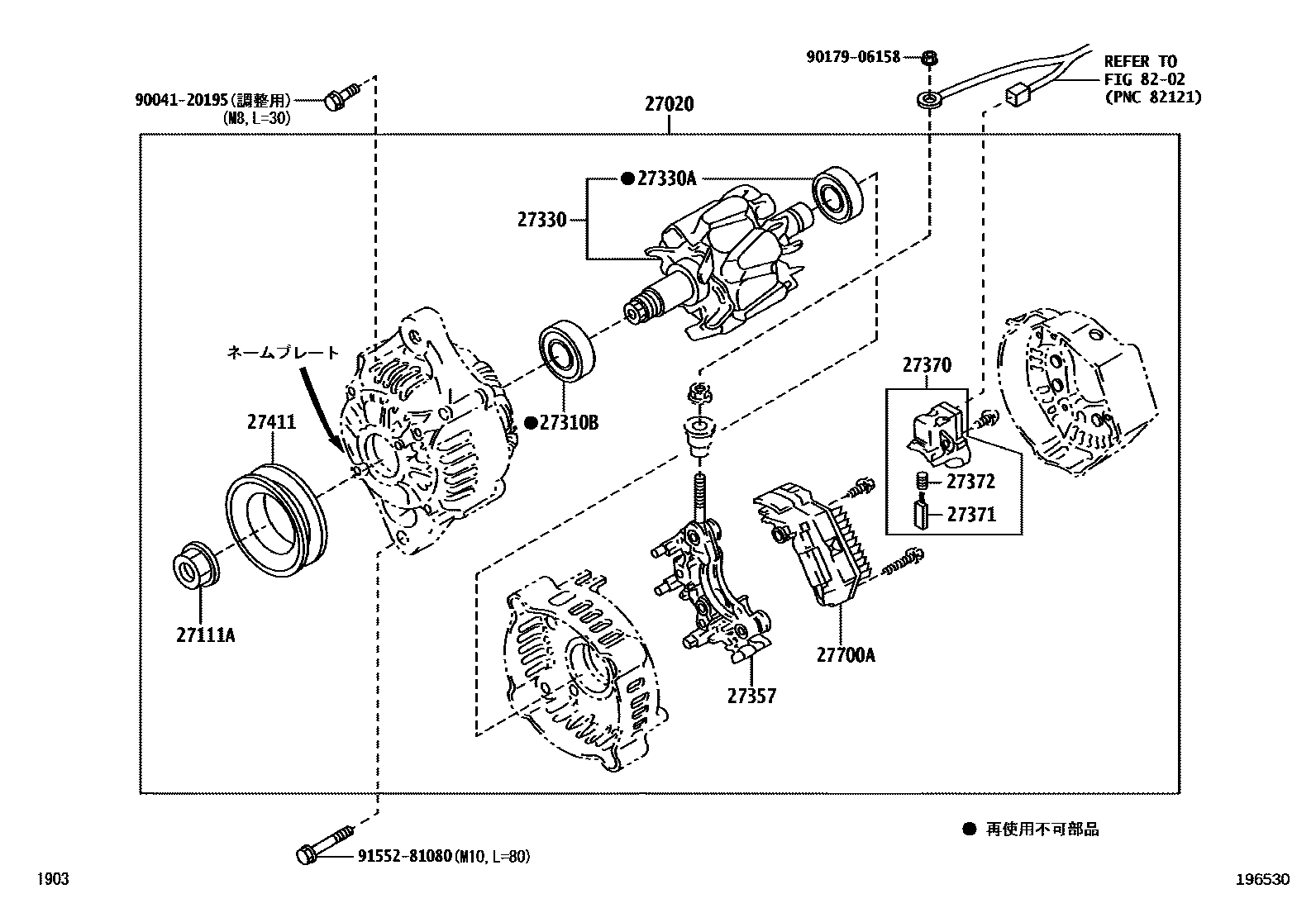

ALTERNATOR

27020ALTERNATOR ASSY

main27060-B2021iKFVE..S201,211201112-201407

27111ANUT, ALTERNATOR

main90099-05171iKFVE..S201,211201112-201407

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main9004C-37006iKFVE..S201,211201112

27330ROTOR ASSY, ALTERNATOR

main27330-97203iKFVE..S201,211201112

27330ABEARING(FOR ALTERNATOR ROTOR)

main27791-87701iKFVE..S201,211201112

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-97501iKFVE..S201,211201112

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-87708iKFVE..S201,211201112

27371BRUSH, ALTERNATOR

main27371-87501×2iKFVE..S201,211201112

27372SPRING, ALTERNATOR BRUSH

main27372-87501×2iKFVE..S201,211201112

27411PULLEY, ALTERNATOR

main27411-87710iKFVE..S201,211201112

27700AREGULATOR ASSY, GENERATOR

main27700-B2010iKFVE..S201,211201112

8202WIRING & CLAMP

→ Go to FIG 82-02

9004120195

main90041-20195

9017906158

main90179-06158

9155281080

main91552-81080

15 parts on this diagram · 1 diagram in section
