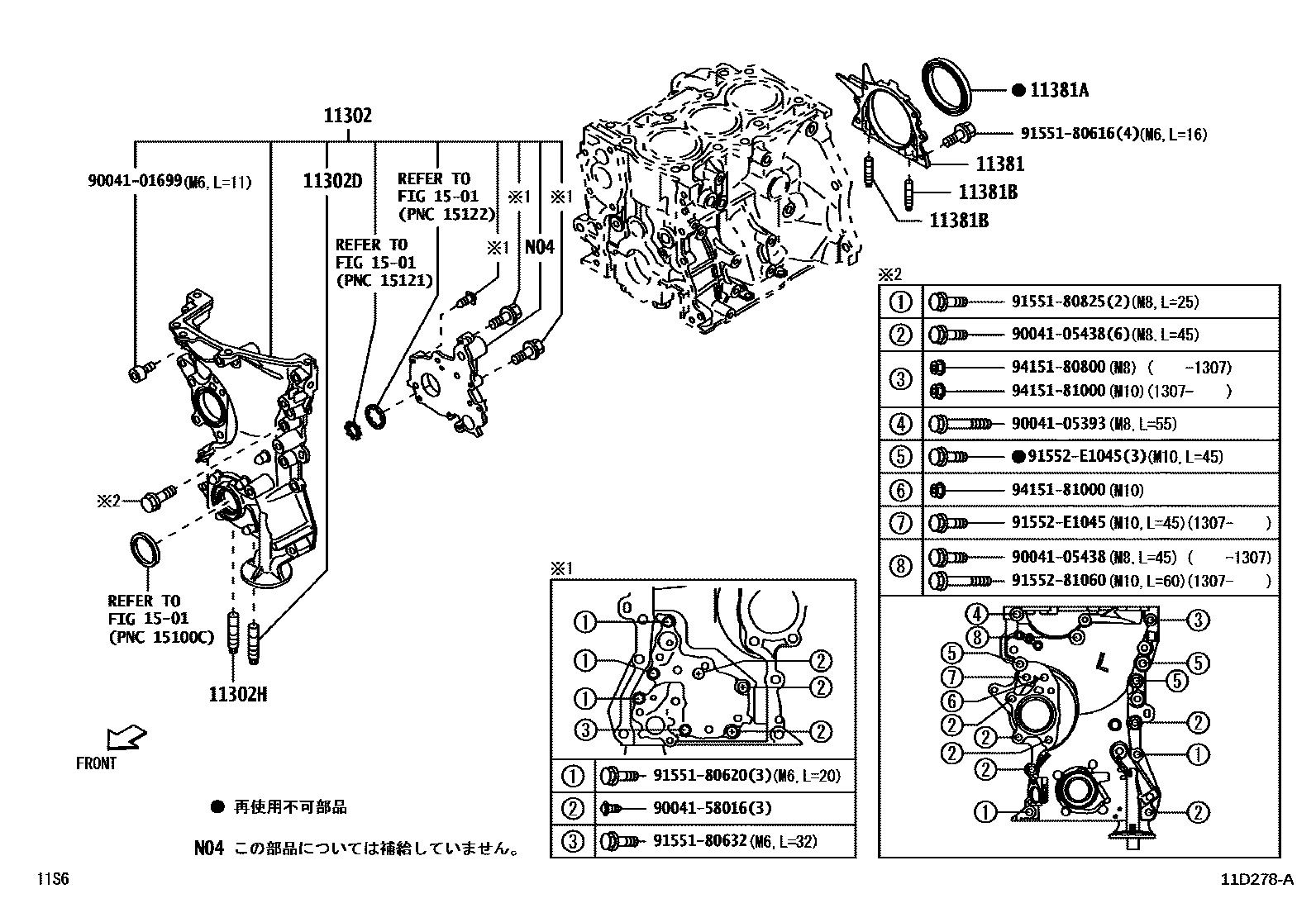

TIMING GEAR COVER & REAR END PLATE

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-B2083iKFVE..S201,211201112-201307

main11310-B2084iKFVE..S201,211201307-201407

11302DBOLT, STUD(FOR TIMING GEAR COVER)

main90041-26002iKFVE..S201,211201112-201401

main90041-26005iKFVE..S201,211201401-201407

11302HBOLT, STUD(FOR TIMING GEAR COVER)

main90041-26001iKFVE..S201,211201112-201401

main90041-26006iKFVE..S201,211201401-201407

11381RETAINER, ENGINE REAR OIL SEAL

main11381-B2030iKFVE..S201,211201112

11381ASEAL, ENGINE REAR OIL

main90043-11364iKFVE..S201,211201112

11381BBOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)

main90041-26001×2iKFVE..S201,211201112-201401

main90041-26006×2iKFVE..S201,211201401-201407

1501ENGINE OIL PUMP

→ Go to FIG 15-01

9004101699

main90041-01699

9004105393

main90041-05393

9004105438

main90041-05438

9004158016

main90041-58016

9155180616

main91551-80616

9155180620

main91551-80620

9155180632

main91551-80632

9155180825

main91551-80825

9155281060

main91552-81060

91552E1045

main91552-E1045

9415180800

main94151-80800

9415181000

main94151-81000

19 parts on this diagram · 1 diagram in section
