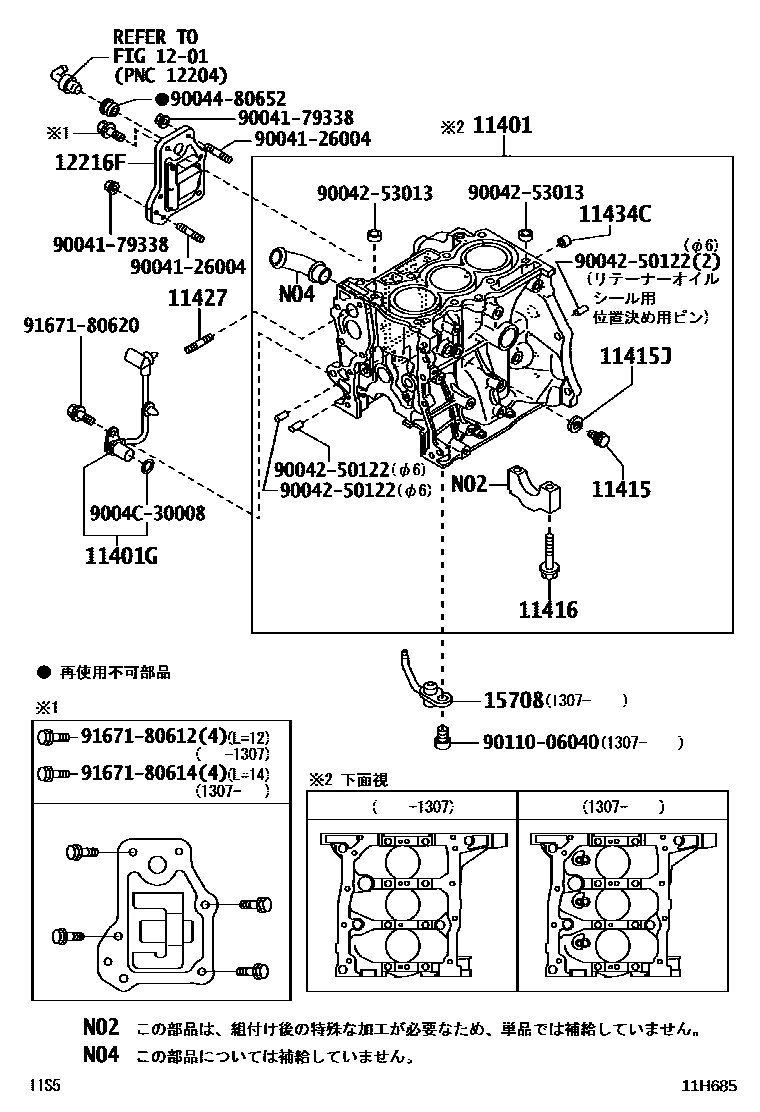

CYLINDER BLOCK

0001 1������ ����� 0002 1��� ���

11401BLOCK SUB-ASSY, CYLINDER

main11401-B2173iKFVE..S201,211201112-201307

main11401-B2174iKFVE..S201,211201307-201407

11401GSENSOR, CRANK POSITION

main19311-B2021iKFVE..S201,211201112-201409

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90043-41088iKFVE..S201,211201112-201407

11415JGASKET(FOR DRAIN COCK)

main90044-30279iKFVE..S201,211201112-201407

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90041-05368×8iKFVE..S201,211201112-201407

11427BOLT, STUD(FOR TIMING CHAIN COVER SET)

main90041-16498iKFVE..S201,211201112-201407

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90042-50207×2iKFVE..S201,211201112-201407

1201VENTILATION HOSE

→ Go to FIG 12-01

12216FPLATE, VENTILATION BAFFLE

main12216-B2020iKFVE..S201,211201112-201307

main12216-B2021iKFVE..S201,211201307-201409

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-B2010×3iKFVE..S201,211201307-201409

9004126004

main90041-26004

9004179338

main90041-79338

9004250122

main90042-50122

9004253013

main90042-53013

9004480652

main90044-80652

9004C30008

main9004C-30008

9011006040

main90110-06040

9167180612

main91671-80612

9167180614

main91671-80614

9167180620

main91671-80620

20 parts on this diagram · 2 diagrams in section
