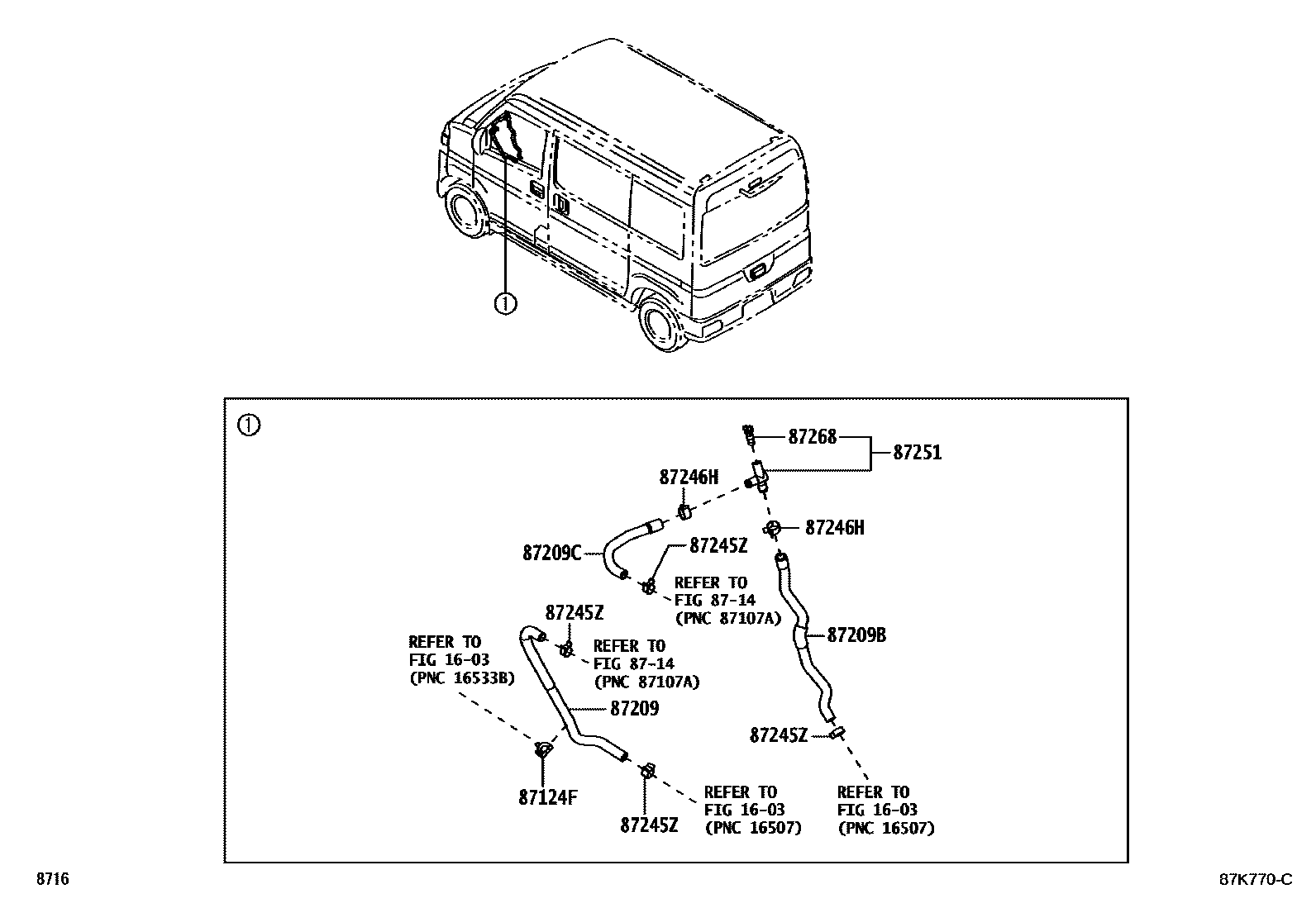

HEATING & AIR CONDITIONING - WATER PIPING

0001 1���� 0002 1��(CVT) 0003 1��(MTM)

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

87124CLAMP, HEATER

main87124-B5060iS700,710..5F202112

87124FCLAMP, HEATER HOSE, NO.1

main87124-B5050iS700,710202112

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87209HOSE SUB-ASSY, WATER

main87243-B5030iS700,710202112

87209BHOSE SUB-ASSY, WATER, B

main87242-B5020iS700,710202112

87209CHOSE SUB-ASSY, WATER, C

main87246-B5030iS700,710202112

87245ZCLIP OR CLAMP (FOR HEATER WATER HOSE)

main96136-42101×4iS700,710202112

87246HCLIP OR CLAMP(FOR HEATER WATER HOSE)

main96136-42501×2iS700,710202112

87251JOINT OR UNION, WATER HOSE THROUGH

main16035-B0011iS700,710202112

87268COCK, WATER HOSE DRAIN(FOR REAR HEATER)

main16407-97201iS700,710202112

11 parts on this diagram · 3 diagrams in section
