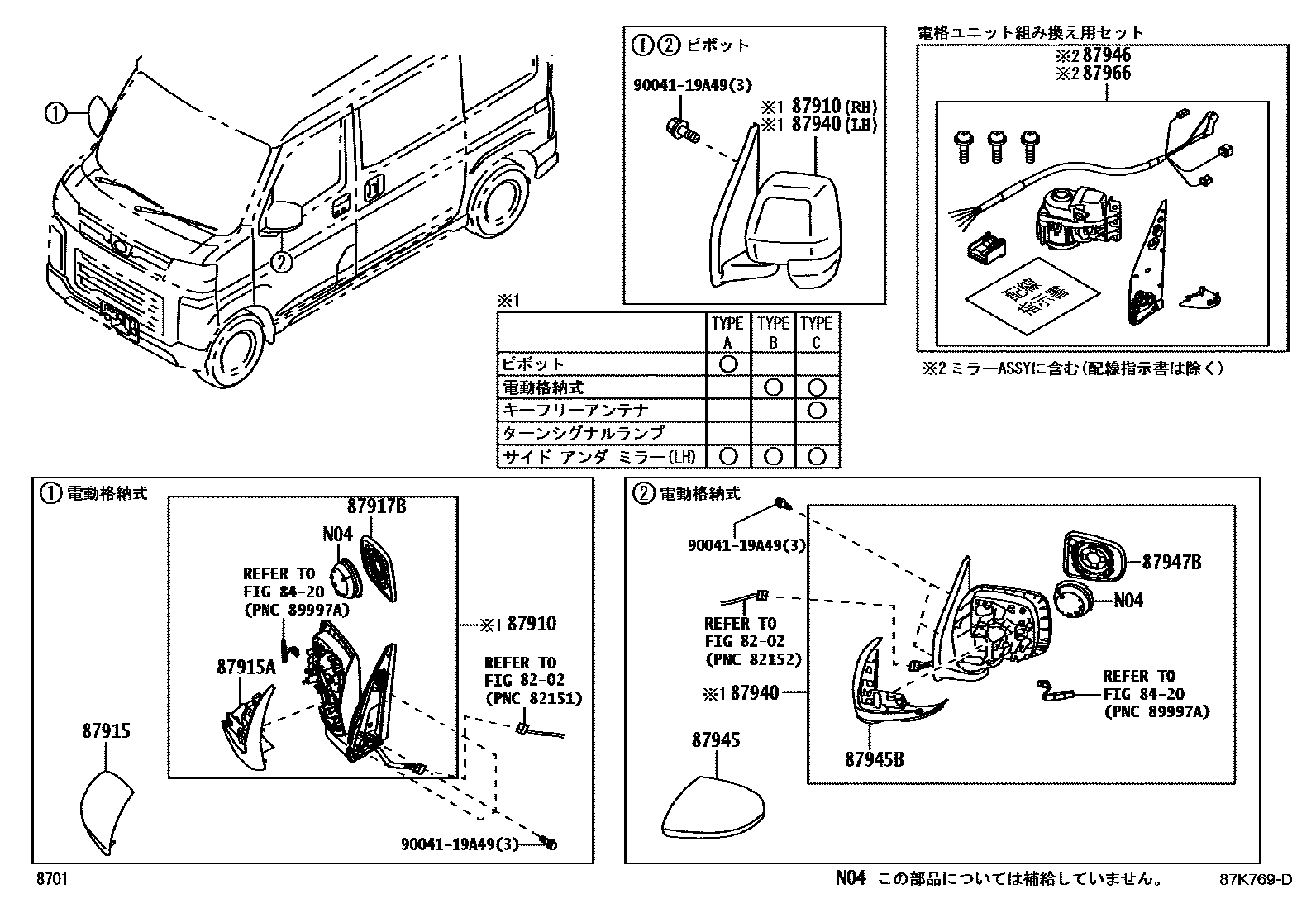

MIRROR

0001 1������� 0002 1�������

8202WIRING & CLAMP

→ Go to FIG 82-02

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-B5210iS700,710..DLX,SPL202112

main87910-B5220iS700,710..5F..CR202112

main87910-B5230iS700,710..CVT..CR; S700,710..CVT..DLX202112

87915COVER, OUTER MIRROR, RH

main87915-B5060-A0iS700,710..CR; S700,710..CVT..DLX202112

main87915-B5060-B0iS700,710..CR; S700,710..CVT..DLX202112

main87915-B5060-C0iS700,710..CR; S700,710..CVT..DLX202112

main87915-B5060-D0iS700,710..CR; S700,710..CVT..DLX202112

main87915-B5060-G1iS700,710..CR; S700,710..CVT..DLX202112

main87915-B5070-A1iS700,710..CR202112

87915ACOVER, OUTER MIRROR, RH

main8791B-B5010iS700,710..CR; S700,710..CVT..DLX202112

87917BMIRROR, OUTER REAR VIEW, RH

main87917-B5080iS700,710..CR; S700,710..CVT..DLX202112

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-B5230iS700,710..DLX,SPL202112-202207

main87940-B5231iS700,710..DLX,SPL202208

main87940-B5240iS700,710..5F..CR202112

main87940-B5250iS700,710..CVT..CR; S700,710..CVT..DLX202112

87945COVER, OUTER MIRROR, LH

main87945-B5060-A0iS700,710..CR; S700,710..CVT..DLX202112

main87945-B5060-B0iS700,710..CR; S700,710..CVT..DLX202112

main87945-B5060-C0iS700,710..CR; S700,710..CVT..DLX202112

main87945-B5060-D0iS700,710..CR; S700,710..CVT..DLX202112

main87945-B5060-G1iS700,710..CR; S700,710..CVT..DLX202112

main87945-B5070-A1iS700,710..CR202112

87945BCOVER, OUTER MIRROR, LH

main8794A-B5010iS700,710..CR; S700,710..CVT..DLX202112

87946RETRACTOR, OUTER MIRROR, RH

main87946-B5020iS700,710..5F..CR202112

main87946-B5030iS700,710..CVT..CR; S700,710..CVT..DLX202112

87947BMIRROR, OUTER REAR VIEW, LH

main87947-B5070iS700,710..CR; S700,710..CVT..DLX202112

87966RETRACTOR, OUTER MIRROR, LH

main87966-B5020iS700,710..5F..CR202112

main87966-B5030iS700,710..CVT..CR; S700,710..CVT..DLX202112

9004119A49

main90041-19A49

13 parts on this diagram · 2 diagrams in section
