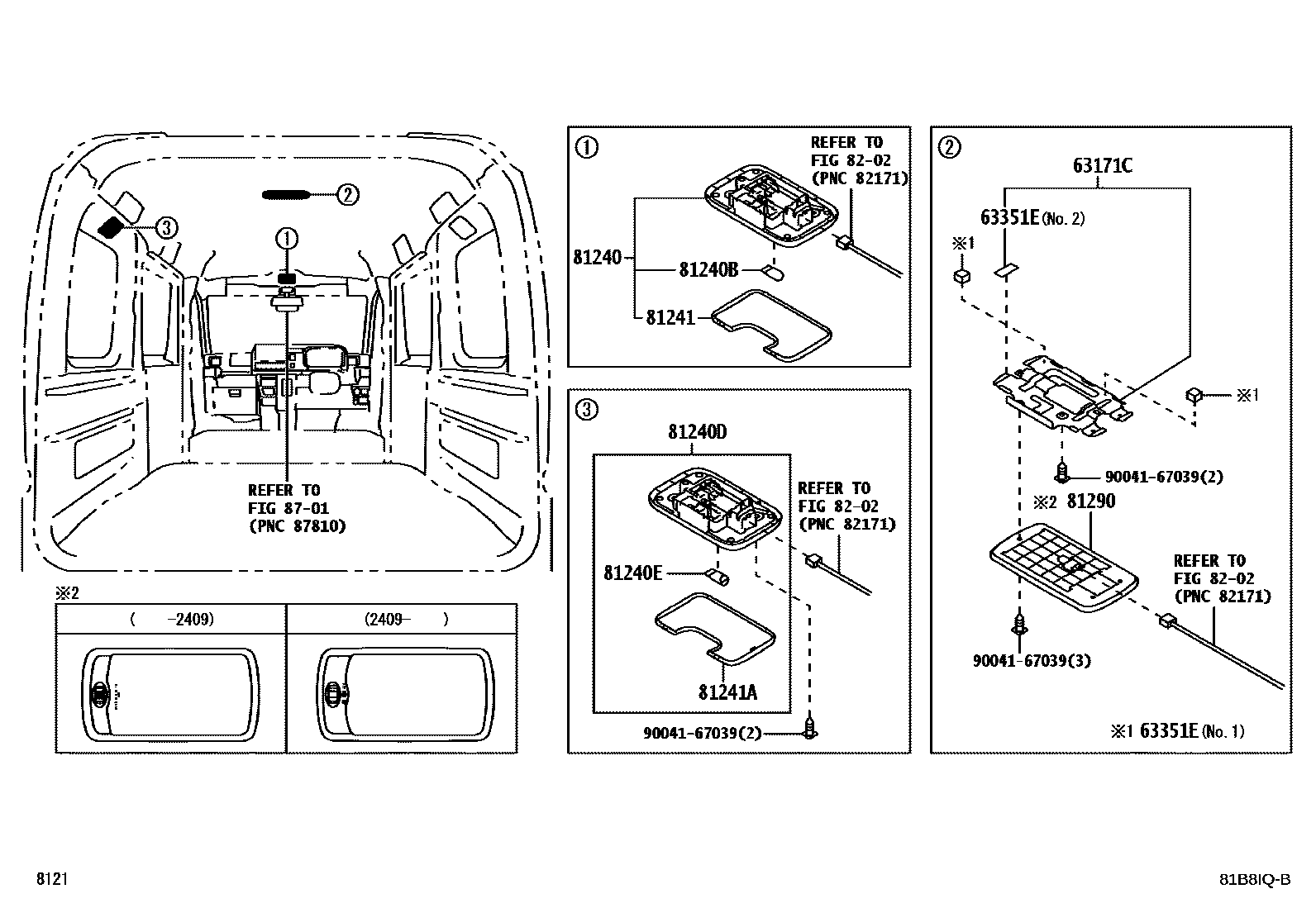

INTERIOR LAMP

63171CBRACKET, ROOM LAMP

main63171-B5030iS700,710..CR202112

63351EPAD, ROOF HEADLINING

main63351-B5220×2iS700,710..CR202112

main63353-B5020iS700,710..CR202112

81240LAMP ASSY, ROOM, NO.1

main81240-B5030-B0iS700,710..CVT..(CR,DLX)202112

main81240-B5040-B0iS700,710..CVT..(CR,DLX)202112

81240BBULB, ROOM LAMP, NO.1

main84999-B2080iS700,710..CVT..(CR,DLX)202112-202208

main84999-B2110iS700,710..CVT..(CR,DLX)202209

main90049-51188iS700,710..CVT..(CR,DLX)202112

81240DLAMP ASSY, ROOM, NO.2

main81240-B5030-B0iS700,710..DLX,SPL202112

LT.GRAY,TRIM1#

main81240-B5040-B0iS700,710..CVT..DLX202112

81240EBULB, ROOM LAMP, NO.2

main90049-51188iS700,710..DLX,SPL202112

main84999-B2080iS700,710..CVT..DLX202112-202208

main84999-B2110iS700,710..CVT..DLX202209

81241LENS, ROOM LAMP, NO.1

main81241-B2100iS700,710..CVT..(CR,DLX)202112

81241ALENS, ROOM LAMP, NO.2

main81241-B2100iS700,710..DLX,SPL202112

81290LAMP ASSY, ROOM, NO.3

main81240-B5013-B1iS700,710..CR202112-202409

LT.GRAY,TRIM1#

main81240-B5050-B0iS700,710..CR202409

LT.GRAY,TRIM1#

8202WIRING & CLAMP

→ Go to FIG 82-02

8701MIRROR

→ Go to FIG 87-01

9004167039

main90041-67039

12 parts on this diagram · 1 diagram in section
