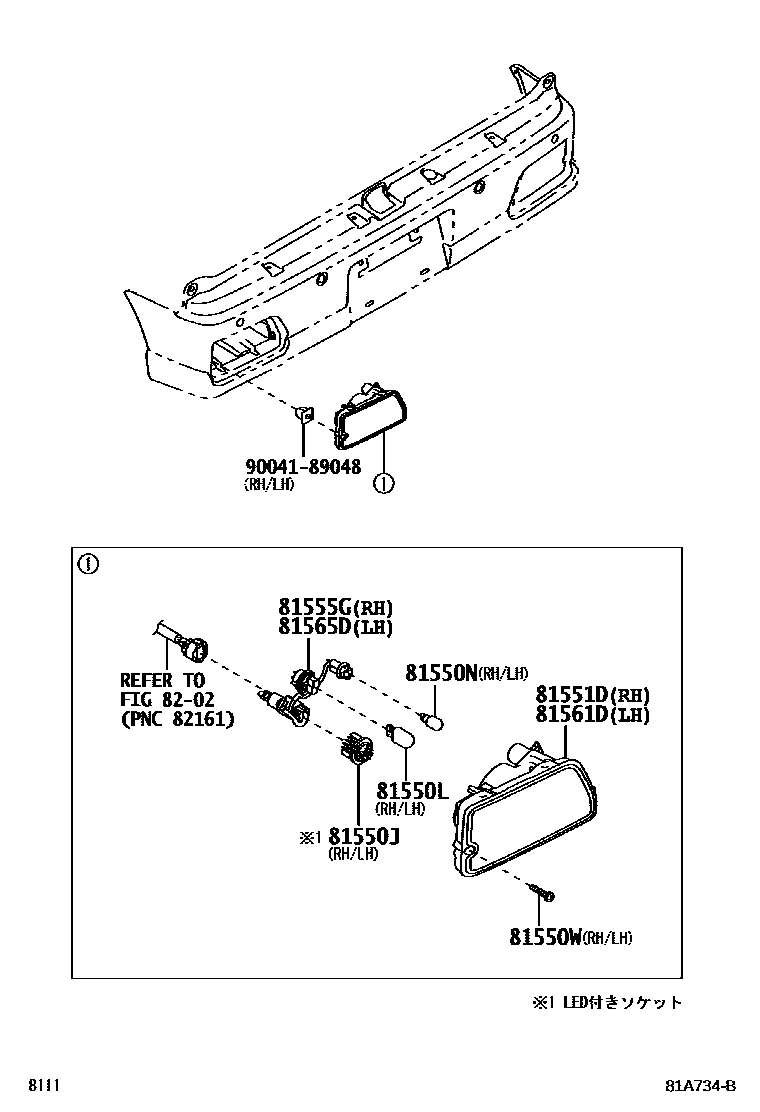

REAR COMBINATION LAMP

81550JSOCKET, TAIL & STOP LAMP

main81945-B1040×2iS700,710202112

81550LBULB, REAR TURN SIGNAL LAMP

main90049-51179×2iS700,710202112

81550NBULB, BACK UP LAMP

main90049-51194×2iS700,710202112

81550WSCREW(FOR RR COMBINATION LAMP)

main81136-B5050×2iS700,710202112

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-B5110iS700,710202112

81555GCORD, REAR COMBINATION LAMP, RH

main81555-B5060iS700,710202112

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-B5110iS700,710202112

81565DCORD, REAR COMBINATION LAMP, LH

main81555-B5060iS700,710202112

8202WIRING & CLAMP

→ Go to FIG 82-02

9004189048

main90041-89048

10 parts on this diagram · 1 diagram in section
