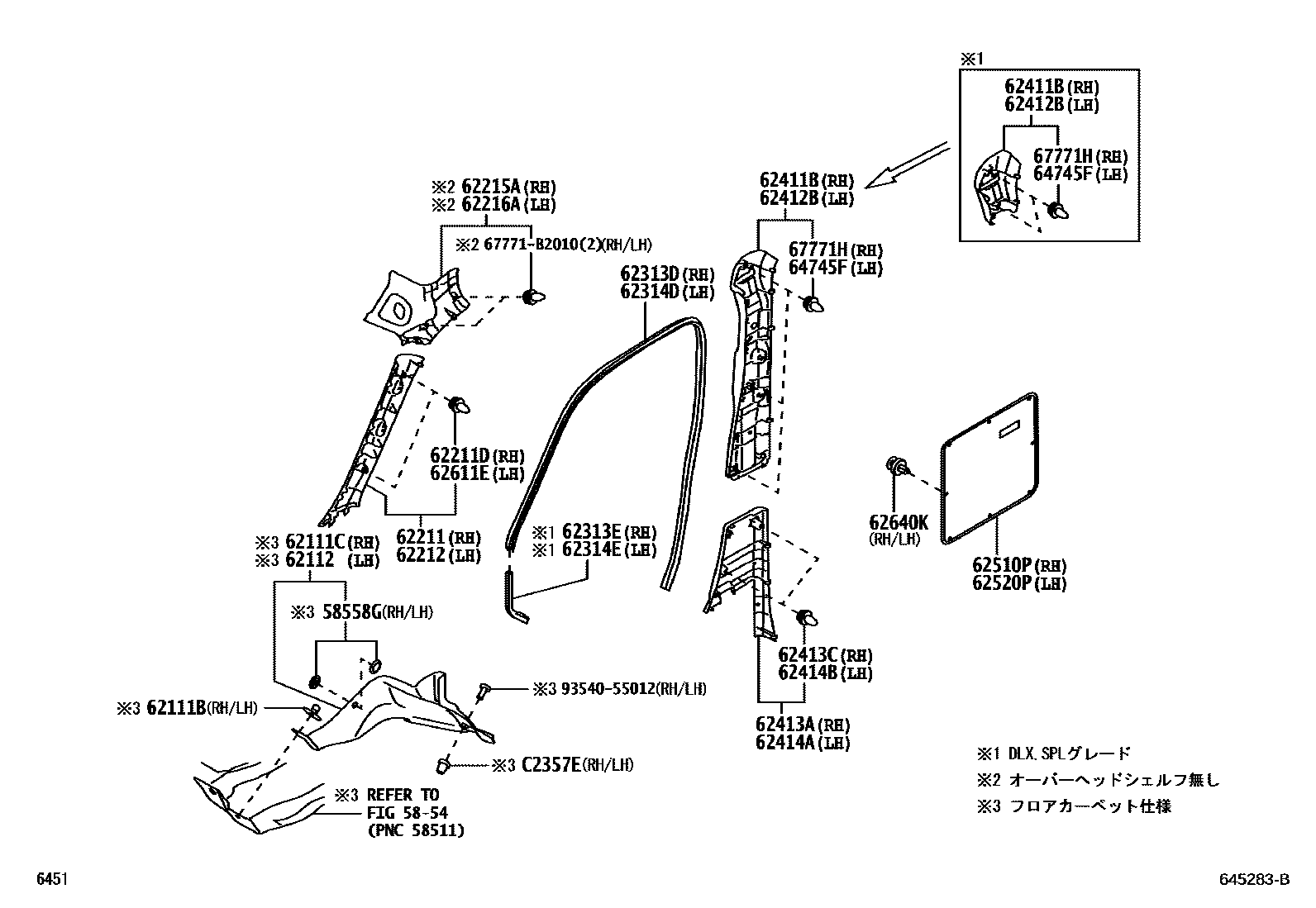

INSIDE TRIM BOARD

5854FLOOR MAT & SILENCER PAD

→ Go to FIG 58-54

58558GFASTENER, PILE

main58558-87501-C0×2iS700,710..CR202112

BLACK,TRIM1#

62111BCLIP(FOR COWL SIDE TRIM)

main90044-68234-C0×2iS700,710..CR202112

BLACK,TRIM1#

62111CBOARD, COWL SIDE TRIM, RH

main62111-B5020-C0iS700,710..CR202112

BLACK,TRIM1#

62112BOARD, COWL SIDE TRIM, LH

main62112-B5020-C0iS700,710..CR202112

BLACK,TRIM1#

62211GARNISH, FRONT PILLAR, RH

main62211-B5020-C0iS700,710202112

BLACK,TRIM1#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main67771-B2010×2iS700,710202112

62212GARNISH, FRONT PILLAR, LH

main62212-B5020-C0iS700,710202112

BLACK,TRIM1#

62215AINSERT, FRONT PILLAR GARNISH, RH

main62215-B5010-B0iS700,710..SPL202112

LT.GRAY,TRIM1#

62216AINSERT, FRONT PILLAR GARNISH, LH

main62216-B5010-B0iS700,710..SPL202112

LT.GRAY,TRIM1#

62313DTRIM, FRONT DOOR OPENING, RH

main62313-B5100-C0iS700,710202112-202301

BLACK

main62313-B5101-C0iS700,710202302

BLACK

62313ETRIM, FRONT DOOR OPENING, NO.2 RH

main62314-B5050-C0iS700,710..DLX,SPL202112

BLACK

62314DTRIM, FRONT DOOR OPENING, LH

main62313-B5100-C0iS700,710202112-202301

BLACK

main62313-B5101-C0iS700,710202302

BLACK

62314ETRIM, FRONT DOOR OPENING, NO.2 LH

main62314-B5050-C0iS700,710..DLX,SPL202112

BLACK

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-B5030-B0iS700,710..CR202112

LT.GRAY,TRIM1#

main62411-B5070-B0iS700,710..(DLX,SPL)..PS1202112

LT.GRAY,TRIM1#

main62411-B5100-B0iS700,710..(DLX,SPL)..PS2202411

LT.GRAY,TRIM1#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-B5040-B0iS700,710..CR202112

LT.GRAY,TRIM1#

main62412-B5060-B0iS700,710..(DLX,SPL)..PS1202112

LT.GRAY,TRIM1#

main62412-B5090-B0iS700,710..(DLX,SPL)..PS2202411

LT.GRAY,TRIM1#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-B5020-C0iS700,710..CR,DLX202112

BLACK,TRIM1#

main62413-B5040-C0iS700,710..SPL..PS2202411

BLACK,TRIM1#

main73223-B5070-C0iS700,710..SPL..PS1202112

BLACK,TRIM1#

62413CCLIP (FOR CENTER LOWER GARNISH)

main67771-B2010×2iS700,710202112

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-B5020-C0iS700,710..CR,DLX202112

BLACK,TRIM1#

main62414-B5030-C0iS700,710..SPL..PS2202411

BLACK,TRIM1#

main73224-B5050-C0iS700,710..SPL..PS1202112

BLACK,TRIM1#

62414BCLIP (FOR CENTER LOWER GARNISH)

main67771-B2010×2iS700,710202112

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62510-B5020-B0iS700,710..DLX,SPL202112

GRAY,TRIM1#

main62510-B5040-B0iS700,710..CR202112

GRAY,TRIM1#

62520PPANEL ASSY, QUARTER TRIM, FRONT LH

main62510-B5020-B0iS700,710..DLX,SPL202112

GRAY,TRIM1#

main62510-B5040-B0iS700,710..CR202112

GRAY,TRIM1#

62611ERETAINER, DOOR TRIM

main67771-B2010×2iS700,710202112

62640KCLIP(FOR QUARTER TRIM REAR PANEL)

main90044-67609-C0×16iS700,710202112

BLACK,TRIM1#

64745FRETAINER, DOOR TRIM

main67771-B2010×2iS700,710..(DLX,SPL)..PS1; S700,710..PS2;S700,710..CR..PS1202112

67771HRETAINER, DOOR TRIM

main67771-B2010×2iS700,710..(DLX,SPL)..PS1; S700,710..PS2;S700,710..CR..PS1202112

C2357EGROMMET

main90041-89066×2iS700,710..CR202112

67771B2010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-B2010

9354055012

main93540-55012

29 parts on this diagram · 1 diagram in section
